Fixing kit
Fixing kit for installation into trim strip ceilings. Bracket made from galvanised steel to screw onto the luminaire sides. The luminaire is mounted to the trim strip ceiling by means of a screwed-on bracket. Bracket height adjustable by means of oblong holes and thus adaptable to different trim strip heights.

Fixing kit:

ZBS-E BR 10-127 Fixing kit for trim strip ceilings. (0210127)

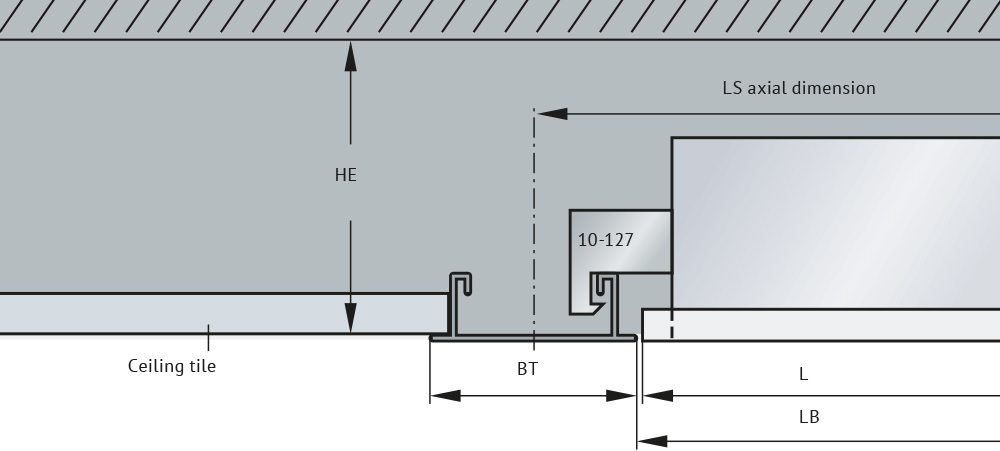

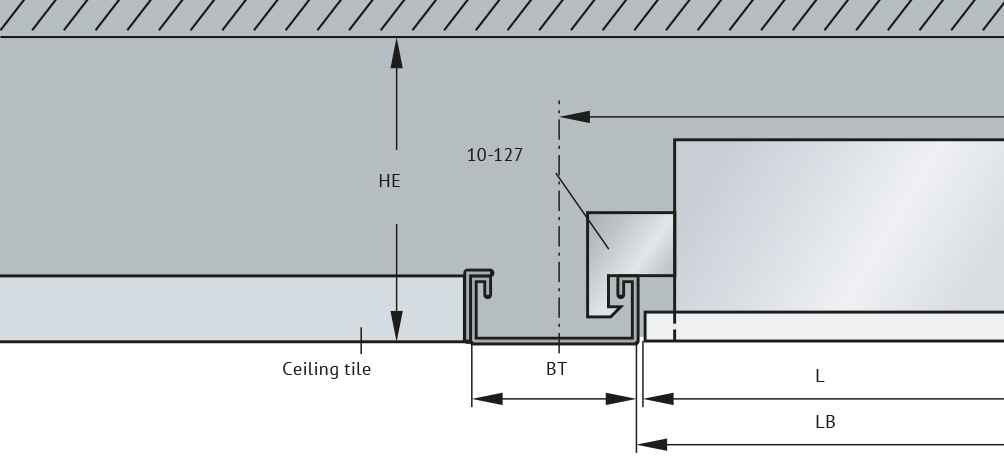

Trim strip ceilings with lay-in mineral fibre tiles. Ceiling tiles mounted to trim strip. Simple, secure and flush fixing to the ceiling.

The luminaire length is calculated as follows: L = LS - BT - 3 mm

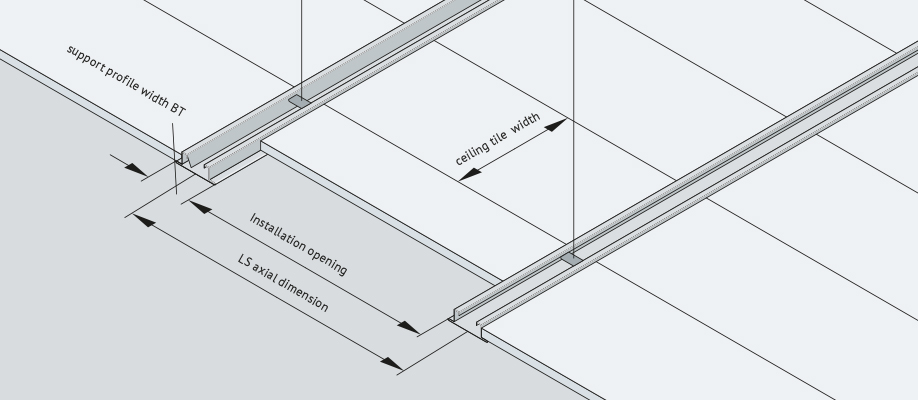

A construction and ceiling grid size that is optimum and cost-effective is calculated from the length of a standard luminaire, e.g., from luminaire lengths [mm]: 1197 | 1247 | 1497 | 1547

The LS axial dimension is determined as follows: LS = L + 3 mm + BT

Installation height HE = H + 40 mm (Observe the information in the product page tables)

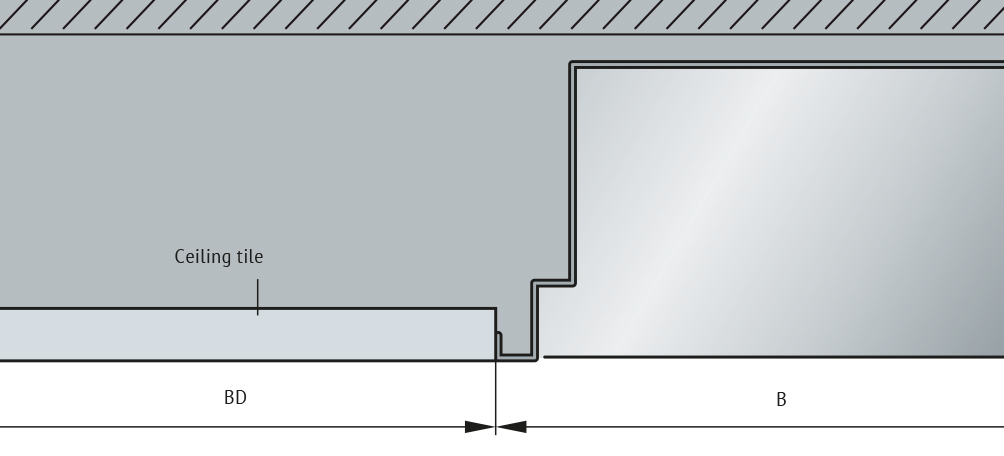

Trim strip ceilings with mounted metal panels or linear panels. Simple installation flush with the ceiling.

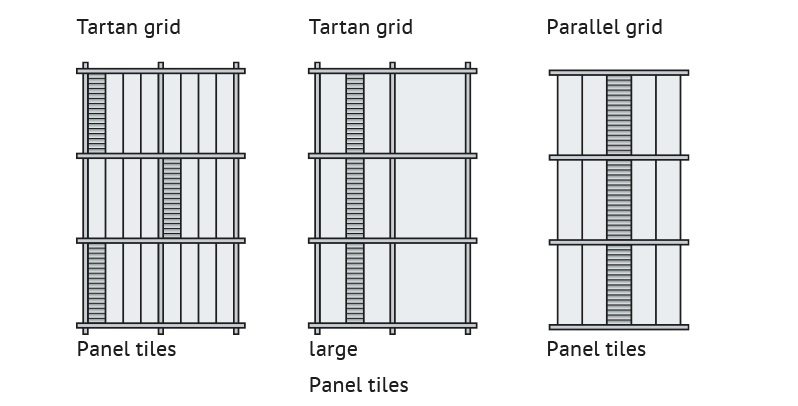

For this type of ceiling, the luminaire length and width is usually identical to the tile size. Typical installation type as tartan grid or parallel grid depicted in diagram.

Installation height HE: HE = H + 40 mm (Observe the information in the product page tables)

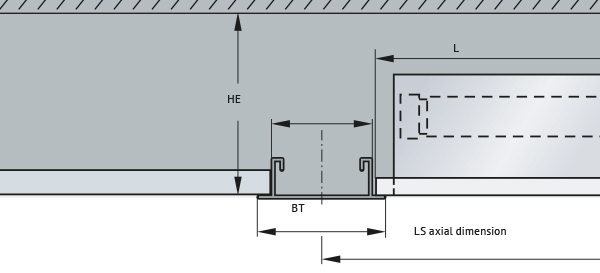

Trim strip ceilings with lay-in ceiling tiles.

A cost-effective installation method is recessed mounting of the luminaire without fixing accessories. The luminaire is merely installed in the channel like a ceiling tile.

Determining the grid dimensions as follows L = LS - BT + 20 mm is required and a prerequisite for using this variant.

Installation height HE: HE = H + height trim strip +10 mm (Observe the information in the product page tables)
