EBRE9-R ... OS

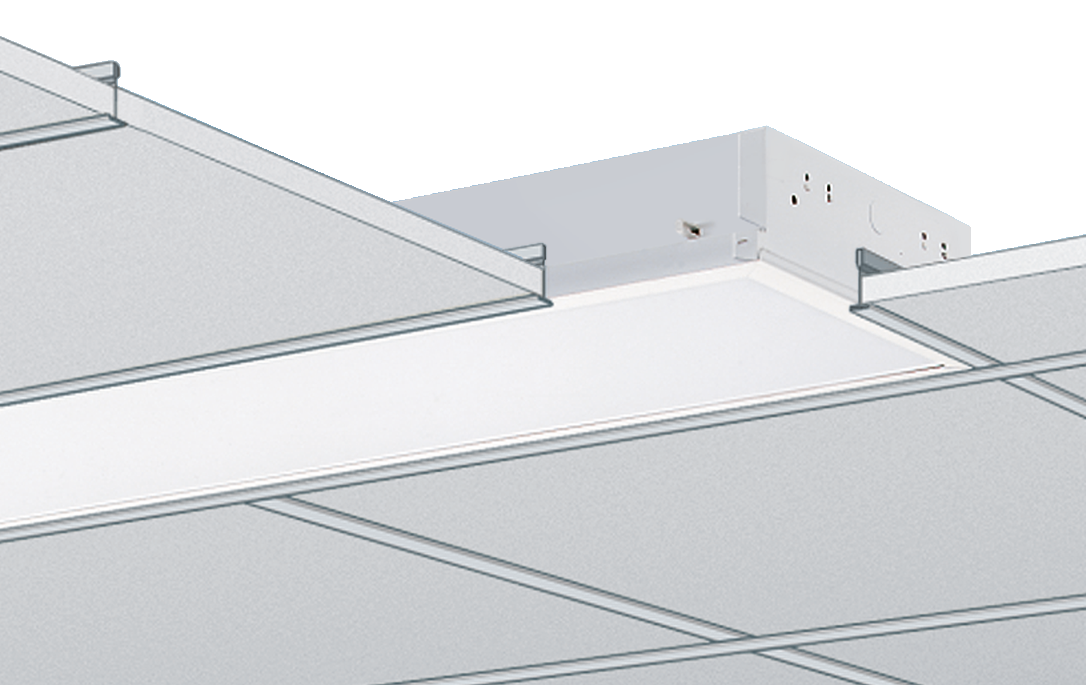

Design: Recessed single LED luminaire for modular ceilings 625 x 625. Luminaire height 95 mm (1-lamp 100 mm). Luminaire housing with 5mm trim in white steel (similar to RAL9016). Optic frame held in the luminaire housing with spring catches, hinges down on both sides with automatic connection to the earth conductor. Protection class IP20. For lamp RIDI RIDI-TUBE (order separately).
0860100 - EBRE9-R1X115/30DA-OS
Control:
DALI
Colour temperature:
4000 K
Luminous flux (lm): 2930
Power (W): 34
Efficiency (lm/W): 86
0850100 - EBRE9-R1X115/30ND-OS
Control:
On/Off
Colour temperature:
4000 K
Luminous flux (lm): 2930
Power (W): 34
Efficiency (lm/W): 86
0860269 - EBRE9-R1X145/45DA-OS
Control:
DALI
Colour temperature:
4000 K
Luminous flux (lm): 3065
Power (W): 35
Efficiency (lm/W): 88
0850269 - EBRE9-R1X145/45ND-OS
Control:
On/Off
Colour temperature:
4000 K
Luminous flux (lm): 3065
Power (W): 35
Efficiency (lm/W): 88
0860264 - EBRE9-R2X055/15DA-OS
Control:
DALI
Colour temperature:
4000 K
Luminous flux (lm): 3180
Power (W): 26
Efficiency (lm/W): 122
0850264 - EBRE9-R2X055/15ND-OS
Control:
On/Off
Colour temperature:
4000 K
Luminous flux (lm): 3180
Power (W): 26
Efficiency (lm/W): 122
0860273 - EBRE9-R2X115/30DA-OS
Control:
DALI
Colour temperature:
4000 K
Luminous flux (lm): 7257
Power (W): 70
Efficiency (lm/W): 104
0850273 - EBRE9-R2X115/30ND-OS
Control:
On/Off
Colour temperature:
4000 K
Luminous flux (lm): 7380
Power (W): 68
Efficiency (lm/W): 109
0860270 - EBRE9-R2X145/35DA-OS
Control:
DALI
Colour temperature:
4000 K
Luminous flux (lm): 6948
Power (W): 62
Efficiency (lm/W): 112
0850270 - EBRE9-R2X145/35ND-OS
Control:
On/Off
Colour temperature:
4000 K
Luminous flux (lm): 7041
Power (W): 64
Efficiency (lm/W): 110
0860265 - EBRE9-R4X055-3/10DA-OS
Control:
DALI
Colour temperature:
4000 K
Luminous flux (lm): 3011
Power (W): 27
Efficiency (lm/W): 112
0850265 - EBRE9-R4X055-3/10ND-OS
Control:
On/Off
Colour temperature:
4000 K
Luminous flux (lm): 3034
Power (W): 27
Efficiency (lm/W): 112
0860053 - EBRE9-R4X055/15DA-OS
Control:
DALI
Colour temperature:
4000 K
Luminous flux (lm): 6176
Power (W): 60
Efficiency (lm/W): 103
0850053 - EBRE9-R4X055/15ND-OS
Control:
On/Off
Colour temperature:
4000 K
Luminous flux (lm): 6361
Power (W): 60
Efficiency (lm/W): 106
