EBRE recessed luminaire with all its variants is the solution for installation in ceilings of all types, including modular ceilings

Product family description and benefits
Filter Close Open
Product category
Length
Width
Height/depth
Range of application
Mounting method
Ceiling type i
1. Mineral and plasterboard ceilings, wood panelled ceilings
2. Ceilings with concealed T-bars and symmetric mineral fibre and plasterboard tiles
3. Ceilings with concealed T-bars and symmetric metal tiles
4. Ceilings with exposed T-bars and lay-in ledged or grooved ceiling boards
5. Ceilings with concealed support rails and asymmetric mineral fibre board
6. Continuous trim strip ceilings with mineral fibreboard or metal tile ceilings
7. Metal plank systems Luminaire mounting parallel to the planks
8. Recessed luminaires for sports halls for Wilhelmi-type mineral fibre board ceilings
9. Recessed luminaires for sports halls for metal plank ceilings, modular dimension 100 (75 + 25 or 84 + 16)
Control
Colour
Luminaire shape
Protection rating
Rated luminous flux
Rated power
Luminaire efficiency
Light output
Light distribution
Radiation pattern
UGR class
Colour temperature
Colour rendering index Ra
Ball proof
Emergency lighting
HACCP certified
Your selection:

141 Articles in 8 Product series

Delete all filters

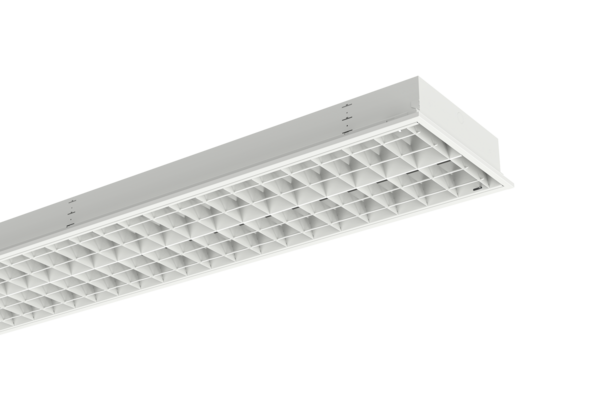

EBR-BWS...

Ball resistant EBR series

Please select a model:

T White grid reinforced with round bars
RIDI EBR-BWS...T

Ball resistant to DIN 18032. White steel louvre with patented fastening catches in white coated steel, colour RIDI reflex white, similar to RAL9016, reinforced with circular rods.

SELECT MODEL

8

EBR-L ...

Recessed louvre light with replaceable LED inserts, ball resistant

Please select a model:

T Ball resistant white grid with round bars
RIDI EBR-L ... T

Ball resistant to DIN 18032. White steel louvre with patented fastening catches in white coated steel, colour RIDI reflex white, similar to RAL9016, reinforced with circular rods.

SELECT MODEL

16

EBRE-LED ...

Recessed luminaire with interchangeable LED inserts, module 625

Please select a model:

MPO Microprismatic cover with opal diffuser
RIDI EBRE-LED ... MPO

Protection rating similar to IP40 on the room side and IP20 on the ceiling side. Frame MPO in extruded aluminium with inlaid transparent acrylic panel made of UV-stabilized PMMA with microprism structure to create glare-free VDU workplace lighting. Prisms embossed, external. Internally additional opal panel made of UV-stabilised PMMA. Even illumination of the microprism panel.

SELECT MODEL

18

MPS Transparent microprism cover
RIDI EBRE-LED ... MPS

Protection rating similar to IP40 on the room side and IP20 on the ceiling side. Frame MPS in extruded aluminium with inlaid transparent acrylic panel made of UV-stabilized PMMA with microprism structure to create glare-free VDU workplace lighting. LED spots visible as a circle on the microprism panel.

SELECT MODEL

15

OS Opalised art glass cover
RIDI EBRE-LED ... OS

Protection rating similar to IP40 on the room side, IP 20 on the ceiling side. Frame OS in extruded aluminium with inlaid opal acrylic panel in UV-stabilised PMMA. Panel in high-grade material with matt finish on both sides, high transmission of 72%. Homogenous lighting without visible LED spots.

SELECT MODEL

17

EBRE6-R ...

Recessed luminaire for replaceable RIDI-TUBE LED lamp, module 625

Please select a model:

SM parabolic specular louvre, matt
RIDI EBRE6-R ... SM

Parabolic mirror louvre SM in high-reflectance, silk matt anodised super-purity aluminium with silver coating. For lamp RIDI-TUBE.

SELECT MODEL

12

EBRE6-R...-2 ... (E-DUO)

Recessed luminaire for replaceable RIDI-TUBE LED lamp, module 625

Please select a model:

SM parabolic specular louvre, matt
RIDI EBRE6-R...-2 ... SM

Parabolic mirror louvre SM in high-reflectance, silk matt anodised super-purity aluminium with silver coating. For RIDI-TUBE lamp (order separately).

SELECT MODEL

4

SM Parabolic mirror louvre, matt, including lamp
RIDI EBRE6-R...-2 ... SM-SET

Parabolic mirror louvre SM in high-reflectance, silk matt anodised super-purity aluminium with silver coating. Including RIDI-TUBE lamp.

SELECT MODEL

2

EBRE9-R ...

For RIDI-TUBE LED lamps. High design. For system ceilings Module 625, with louvre (IP20) or plastic disc (similar to IP40 on the room side).

Please select a model:

OS Opal plastic disc
RIDI EBRE9-R ... OS

OS frame made of aluminium profiles with inlaid opal panel in UV-stabilised PMMA, transmission 82%. For lamp RIDI-TUBE. Note: IP40 when mounting in closed ceilings. Protection rating IP20 on the ceiling side.

SELECT MODEL

14

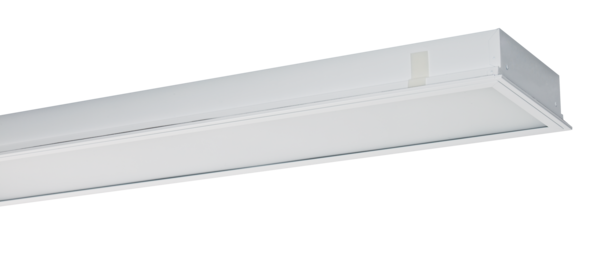

EBRE-LED ... OSD/MPOD/MPSD

Recessed luminaire with interchangeable LED inserts, module 625

Please select a model:

MPO Microprismatic cover with opal diffuser, IP54
RIDI EBRE-LED ... MPOD

Frame MPOD in extruded sectional aluminium with laid-in opal acrylic microprism panel combined with panel in UV-stabilised PMMA. Opel panel in high-grade material with matt finish on both sides with high degree of transmission of 72%. Microprism panel with inward embossed prisms. Homogenous illumination without visible LED spots.

SELECT MODEL

2

MPS Transparent microprismatic cover, IP54
RIDI EBRE-LED ... MPSD

Frame MPSD in extruded sectional aluminium with laid-in opal acrylic microprism panel combined with panel in UV-stabilised PMMA. Microprism panel with outward embossed prisms. LEDs visible as circles.

SELECT MODEL

2

OS Opal synthetic glass cover, IP54
RIDI EBRE-LED ... OSD

Frame OSD in extruded sectional aluminium with laid-in opal acrylic panel in UV-stabilised PMMA. Panel made of high-grade material with matt finish on both sides with high degree of transmission of 72%. Homogenous illumination without visible LED spots.

SELECT MODEL

16

EBRE9-R ... OSD/PSD

Recessed luminaire for replaceable RIDI-TUBE LED lamp, module 625

Please select a model:

OS Opal synthetic glass cover, IP54
RIDI EBRE9-R ... OSD

Frame OSD made of extruded sectional aluminium with laid-in opal panel made of UV stabilised acrylic (PMMA). With gaskets to ensure compliance with the IP protection rating. For lamp RIDI-TUBE.

SELECT MODEL

15

EBRE - universal recessed luminaire for all common ceiling types, also with a higher protection rating and for sports halls

The classic recessed luminaire, the EBRE luminaire family, is an all-round talent for almost all ceiling types. All common sizes and lengths are available, as are all the necessary optical controls and accessories for installation. Ball-resistant designs for sports halls are available, as are versions with a higher protection rating for special environments. LED luminaires are particularly efficient and sustainable, not least because the RIDI-TUBES can be replaced as an option.
  • Recessed luminaires for almost all types of ceilings, including modular ceilings
  • All sizes and lengths and various optical controls
  • Ball-resistant version
  • Design also in IP 54
  • Highly efficient with RIDI LED technology
