Fixing kits:

10-009 for luminaire length 624 mm Mounting parallel to the panels; Length fixing kit: 430 mm (0210009)

10-010 for luminaire length 1248 mm Mounting parallel to the panels; Length fixing kit: 1052 mm (0210012)

10-012 for luminaire length 1548 mm Mounting parallel to the panels; Length fixing kit: 1352 mm (0210012)

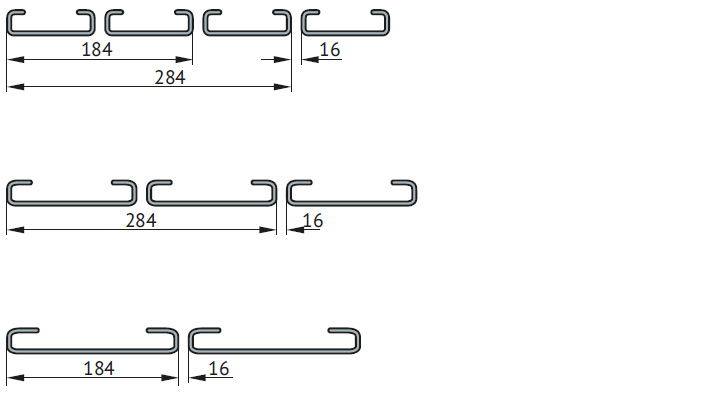

Luminaires in the following widths are available for different panel modules:

• Module 100 (84 + 16)                           luminaire widths 185 and 285
• Module 150 (134 + 16)                         luminaire widths 285
• Module 200 (184 + 16)                         luminaire widths 185

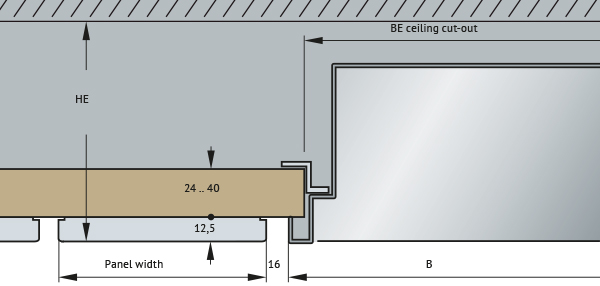

When preparing the installation opening (BE cut-out dimensions), the following is to be observed:
The channels must be cut in such a way that there is a sufficiently large contact surface for the luminaire edge to affix the luminaire.

Ceiling cut-out BE: BE = B - 20 mm

Installation height HE: HE = H + 10 mm (Observe the information in the product page tables)

At least two channels should be arranged for each luminaire so that the luminaire is mounted securely on the channels. The panels are to be fixed on the sides using channel units.
