Ceilings with exposed grids and lay-in angular or grooved ceiling tiles
Lay-in mounting
Simple lay-in mounting of luminaires, fixing with fixing kit not necessary for profile width of 25 mm and profile width of 15 mm.
Notes on installation variants and dimensions

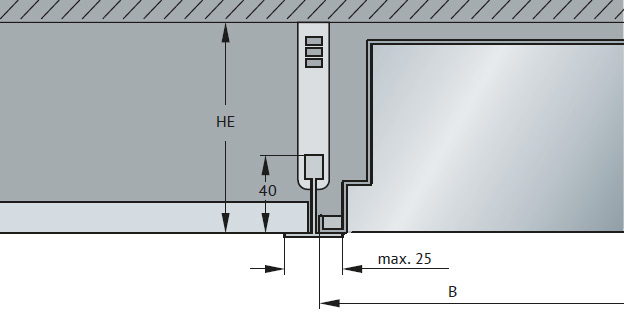

Lay-in mounting of luminaires on ceilings with exposed grids and lay-in, angular ceiling tiles.

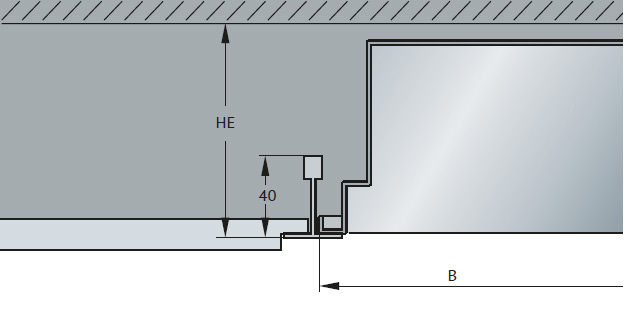

Lay-in mounting of luminaires on ceilings with exposed grids and lay-in, grooved ceiling tiles.
Installation of luminaires in ceilings with exposed grids and lay-in ceiling tiles.
Lighting and formal reasons often require the use of recessed luminaires for which no suitable BS grid dimension is possible in the commercially available standard grid dimensions of ceiling systems.

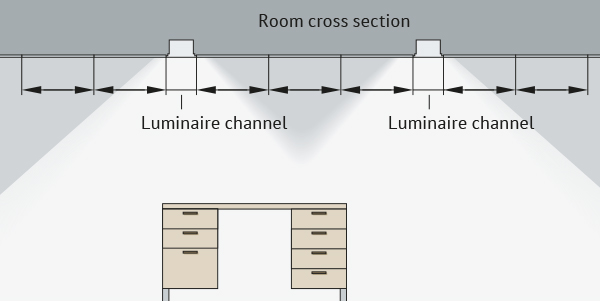

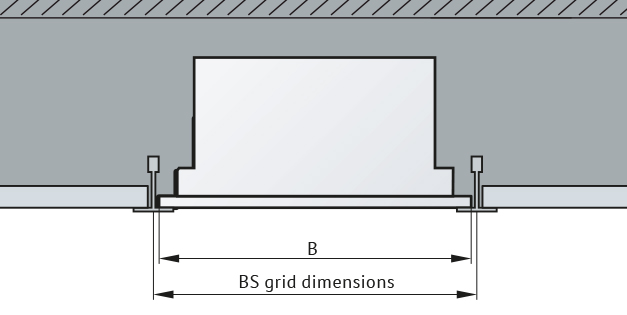

However, installing these luminaires is made possible by creating a luminaire channel. The BS ceiling grid dimensions necessary for this are calculated as follows: BS = B + 5 mm
The luminaires are recessed in the channels and do not require any fixing. It is not necessary to adjust the luminaire length to the ceiling system.
Dimensions of the installation opening:
The installation dimensions are identical to the modular ceiling’s openings. The luminaire dimensions correspond to the ceiling tiles.
No fixing kit is necessary.
Installation height HE -> HE = H + min. 110 mm
