Ceilings with concealed grids and symmetrical metal panelled ceilings (metal tiles)
Ceilings with concealed grids and symmetrical metal panelled ceilings (metal tiles)
Fixing of luminaires and fixing accessories on ceilings with concealed trunking and symmetrical metal panelled ceilings (metal tiles).
Fixing kits for installing recessed luminaires IP20 / IP40 in sawn ceiling openings or modular ceilings. Latch locking system and base bracket made from galvanised steel. Toothing on the latch locking system for maximum installation reliability.
ZBS-E UNI 10-713 Universal fixing kit for clamping thickness: HK 23 mm up to max. 55 mm (0210713)
ZBS-E UNI 10-717 Universal fixing kit for clamping thickness: HK 45 mm up to max. 80 mm (0210717)
Fixing kits for clip-in metal tile ceilingsCeiling tile height 19,5 mm, e.g., Owa Tecta S31 or ceiling tile height 8 mm, e.g., Dipling KP, Durlum, OWA S22. Latch locking system and base bracket made from galvanised steel. Toothing on latch locking system for maximum installation reliability. C-bracket made from galvanised steel serves as stop for correct installation height.
ZBS-E ECOPHON Ceiling tile height 14 mm, e.g., Ecophon Focus Ds / Dg (0210777)
ZBS-E OWA S31 Fixing kit for e.g., OWA TECTA S31, Ceiling tile height 19,5 mm (0210778)
ZBS-E DIPLING Fixing kit for Dipling KP, Owa S1 Ceiling tile height 8 mm (0210779)
Notes on installation variants and dimensions

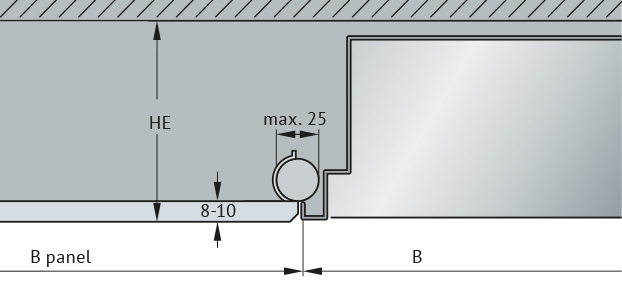

Installation of luminaires flush with ceiling

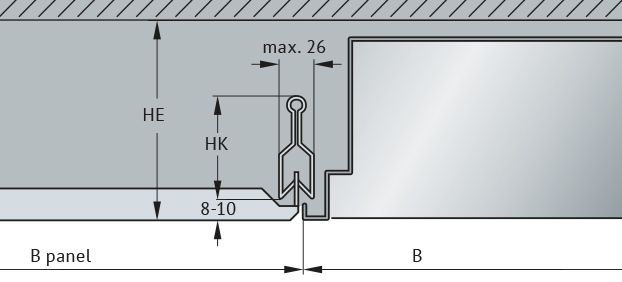

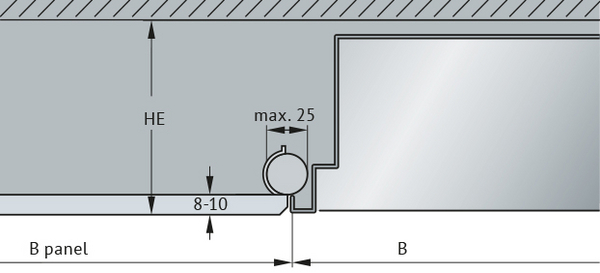

Installation of luminaires in clip-in tile systems flush with ceiling
Dimensions of installation opening:
The installation dimensions are identical to the modular ceiling’s openings. The luminaire dimensions correspond to the ceiling tiles.
Installation height HE depends on the fixing kit used:
- ZBS-E UNI 10-713 -> HE = 100 mm
- ZBS-E UNI 10-717 -> HE = 120 mm
- ZBS-E ECOPHON -> HE = 120 mm
- ZBS-E OWA S31 -> HE = 120 mm
- ZBS-E DIPLING -> HE = 120 mm
The maximum ambient temperature must be stated for queries and orders for heated ceilings.
