RKSK 330/2500-840 HPC / 1420667
![](/cmi24web/cmi24web_exporte/ridi/assets/2017_02_RKSK_330_1800-840_HPC_cmi.png)
![](/cmi24web/cmi24web_exporte/ridi/assets/2017_02_RKSK_330_1800-840_HPC_cmi.png)
Product Description
Ceiling and wall luminaire from the RKSK product family. Optical control via Opal cover, beam pattern symmetric, extremely wide beam, light emission direct. Lamp LED-M installed, Replacement by specialist. The luminaire generates a rated luminous flux of 2440 lm in light colour 840, luminous flux adjustable: No. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Plastic, white, protection rating IP65. Direct ceiling/wall mounting without additional accessories. With electronic electrical component On/Off. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
Order Information
Item number | 1420667 |
GTIN | 4029299478495 |
General
Product category | Ceiling and wall luminaire |
Range of application | Education | Office | Retail | Industry |
Dimensions
Dimension H | 144 mm |
Dimension D | 360 mm |
Dimension D2 | 360 mm |
Dimension A1 | 181 mm |
Dimension A2 | 181 mm |
Dimension D1 | 328 mm |
Net weight | 1.5 kg |
![Dimension drawing](/cmi24web/cmi24web_exporte/ridi/assets/max6604.png)
Mounting
Mounting type | Attachment |
Mounting position | Ceiling | Wall |
Housing
Colour | white |
Farbe_Kurz | ws |
Protection class | IP65 |
Impact resistance | IK10 |
Glow-wire test | 650 °C |
Permissible ambient temperature | -25–25 °C |
Housing material | Plastic |
Cover material | PC opal |
Electrical version
Type of control | On/Off |
Nominal voltage | 220–240 V, 0/50–60 Hz |
Rated power | 19.0 W |
Protection class | I |
Lighting technology
Light guide | Opal cover |
Light output | direct |
Light distribution | symmetric |
Radiation pattern | extremely wide beam |
UGR class | ≤ 25 |
Rated luminous flux | 2440 lm |
Luminaire efficiency | 128 lm/W |
![UGR table](/cmi24web/cmi24web_exporte/ridi/assets/ugr-1420667--en_GB-08-2023.png)
Light source
Lamp | LED-M |
Lamp included | Yes |
Colour rendering index Ra | ≥ 80 |
Colour temperature | 4000 K |
Colour location tolerance (SDCM) | < 3 SDCM |
Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center

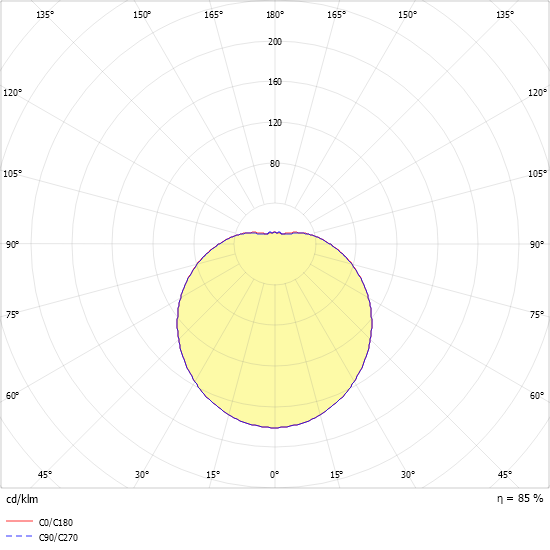

![Lvk](/cmi24web/cmi24web_exporte/ridi/assets/LVK-1420667--08-2023.png)
![Protection rating IP Protection rating IP](/cmi24web/cmi24web_exporte/ridi/assets/Picto_IP65.png)
![Impact resistance level Impact resistance level](/cmi24web/cmi24web_exporte/ridi/assets/Picto_IK10.png)
![Protection class I Protection class I](/cmi24web/cmi24web_exporte/ridi/assets/Picto_Pruefz_Schutzklasse1.png)
![Direct light emission Direct light emission](/cmi24web/cmi24web_exporte/ridi/assets/Picto_Leuchtr_SQL_direkt_.png)
![Indoor area Indoor area](/cmi24web/cmi24web_exporte/ridi/assets/Unter_Dach.png)
![Covered outdoor area Covered outdoor area](/cmi24web/cmi24web_exporte/ridi/assets/Zwischen-Dach.png)
