RKSK 330 ... HPC

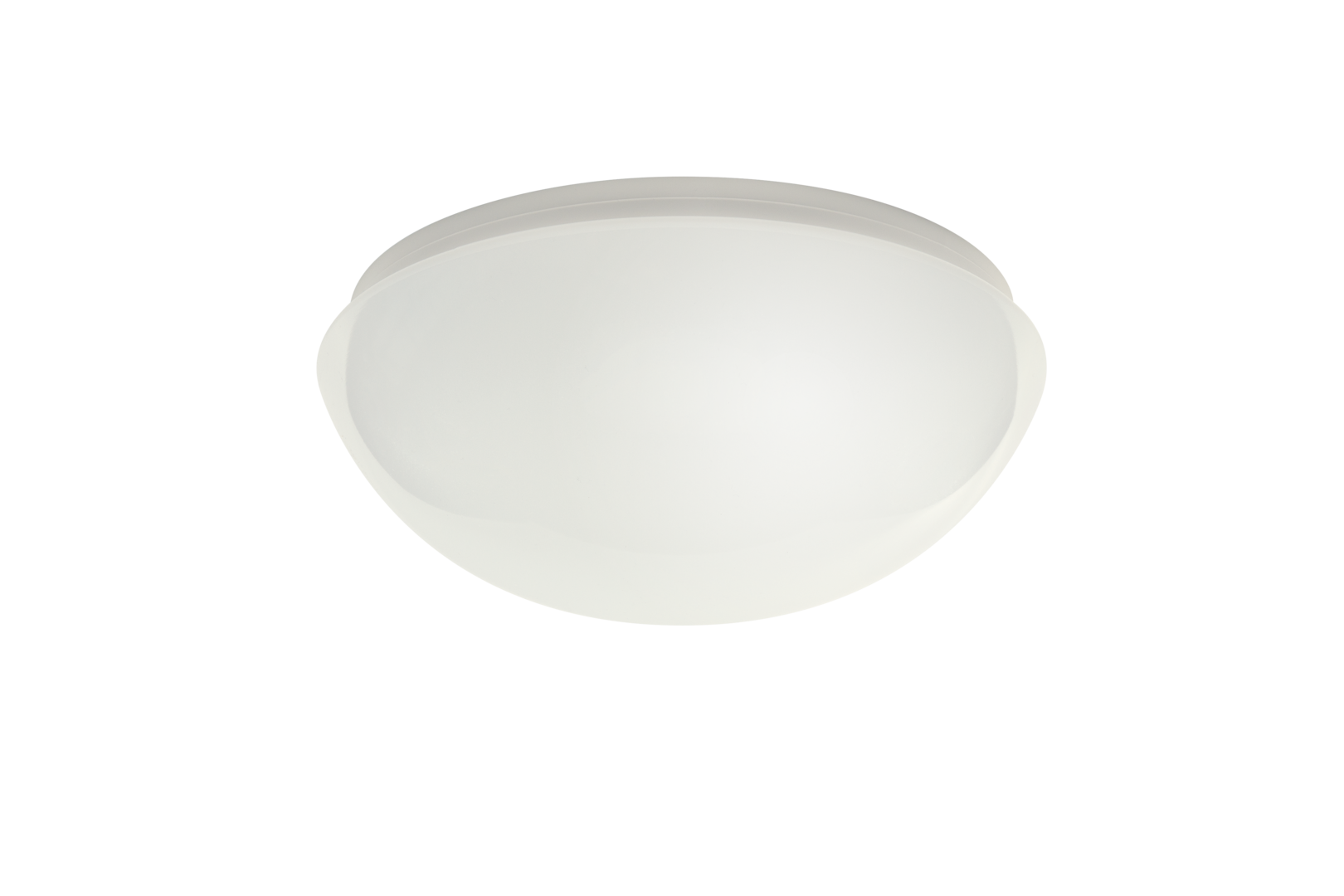

Round single diffuser luminaire, with LED modules for ceiling and wall mounting. Round luminaire base made of polycarbonate, white. Two cable entries and four holes for fixing in the base. Factory-fitted pressure equalisation membrane in the housing, spring clips for diffuser fixture. Equipped with RIDI LED modules. LED modules mounted as circular segments on the luminaire base for homogenous illumination of the luminaire diffuser. LED modules with copper coating on both sides for optimum heat distribution.
1420083 - RKSK 330/1800-830 HPC
Control:
On/Off
Colour temperature:
3000 K
Luminous flux (lm): 1710
Power (W): 14
Efficiency (lm/W): 122
1430083 - RKSK 330/1800-830 HPC-DALI
Control:
DALI
Colour temperature:
3000 K
Luminous flux (lm): 1710
Power (W): 14
Efficiency (lm/W): 122
1420063 - RKSK 330/1800-840 HPC
Control:
On/Off
Colour temperature:
4000 K
Luminous flux (lm): 1760
Power (W): 14
Efficiency (lm/W): 126
1430063 - RKSK 330/1800-840 HPC-DALI
Control:
DALI
Colour temperature:
4000 K
Luminous flux (lm): 1760
Power (W): 14
Efficiency (lm/W): 126
1420664 - RKSK 330/2500-830 HPC
Control:
On/Off
Colour temperature:
3000 K
Luminous flux (lm): 2360
Power (W): 19
Efficiency (lm/W): 124
1430664 - RKSK 330/2500-830 HPC-DALI
Control:
DALI
Colour temperature:
3000 K
Luminous flux (lm): 2360
Power (W): 19
Efficiency (lm/W): 124
1420667 - RKSK 330/2500-840 HPC
Control:
On/Off
Colour temperature:
4000 K
Luminous flux (lm): 2440
Power (W): 19
Efficiency (lm/W): 128
1430667 - RKSK 330/2500-840 HPC-DALI
Control:
DALI
Colour temperature:
4000 K
Luminous flux (lm): 2440
Power (W): 19
Efficiency (lm/W): 128
