H140-K-2500-1900/840-OS-DA-W / SPN0000133
Product Description
Pendant luminaire from the H140-PROFIL product family. Ring-shaped luminaire housing made of extruded aluminium profile with direct component LED using mid power LED modules. Opal cover on the underside with stepped milling for homogenous illumination without direct view of LED units.
Order Information
| Item number | SPN0000133 |
| GTIN | 4029299143478 |
General
| Product category | Pendant luminaire |
| Range of application | Education | Office | Retail |
| Guarantee | 5 years |
Dimensions
| Dimension H | 140 mm |
| Dimension D | 2500 mm |
| Net weight | 47.000 kg |
Dimension drawing
Mounting
| Mounting type | Pendant |
| Mounting position | Ceiling |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP20 |
| Glow-wire test | 650 °C |
| Housing material | Aluminium |
| Cover material | PMMA opal |
Electrical version
| Type of control | DALI |
| Nominal voltage | 230–240 V, 0/50–60 Hz |
| Rated power | 243.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Opal cover |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | extremely wide beam |
| UGR class | ≤ 19 |
| Rated luminous flux | 19000 lm |
| Luminaire efficiency | 78 lm/W |
UGR table
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
Download Center
Approvals:
Product Description
Pendant luminaire from the H140-PROFIL product family. Ring-shaped luminaire housing made of extruded aluminium profile with direct component LED using mid power LED modules. Opal cover on the underside with stepped milling for homogenous illumination without direct view of LED units.
Product information
Order Information
| Item number | SPN0000133 |
| GTIN | 4029299143478 |
General
| Product category | Pendant luminaire |
| Range of application | Education | Office | Retail |
| Guarantee | 5 years |
Dimensions
| Dimension H | 140 mm |
| Dimension D | 2500 mm |
| Net weight | 47.000 kg |
Dimension drawing
Mounting
| Mounting type | Pendant |
| Mounting position | Ceiling |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP20 |
| Glow-wire test | 650 °C |
| Housing material | Aluminium |
| Cover material | PMMA opal |
Electrical version
| Type of control | DALI |
| Nominal voltage | 230–240 V, 0/50–60 Hz |
| Rated power | 243.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Opal cover |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | extremely wide beam |
| UGR class | ≤ 19 |
| Rated luminous flux | 19000 lm |
| Luminaire efficiency | 78 lm/W |
UGR table
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
Download Center

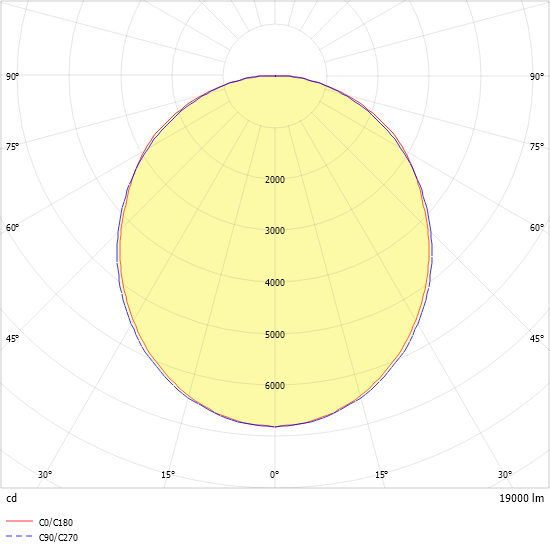

Light distribution curve
Approvals:
