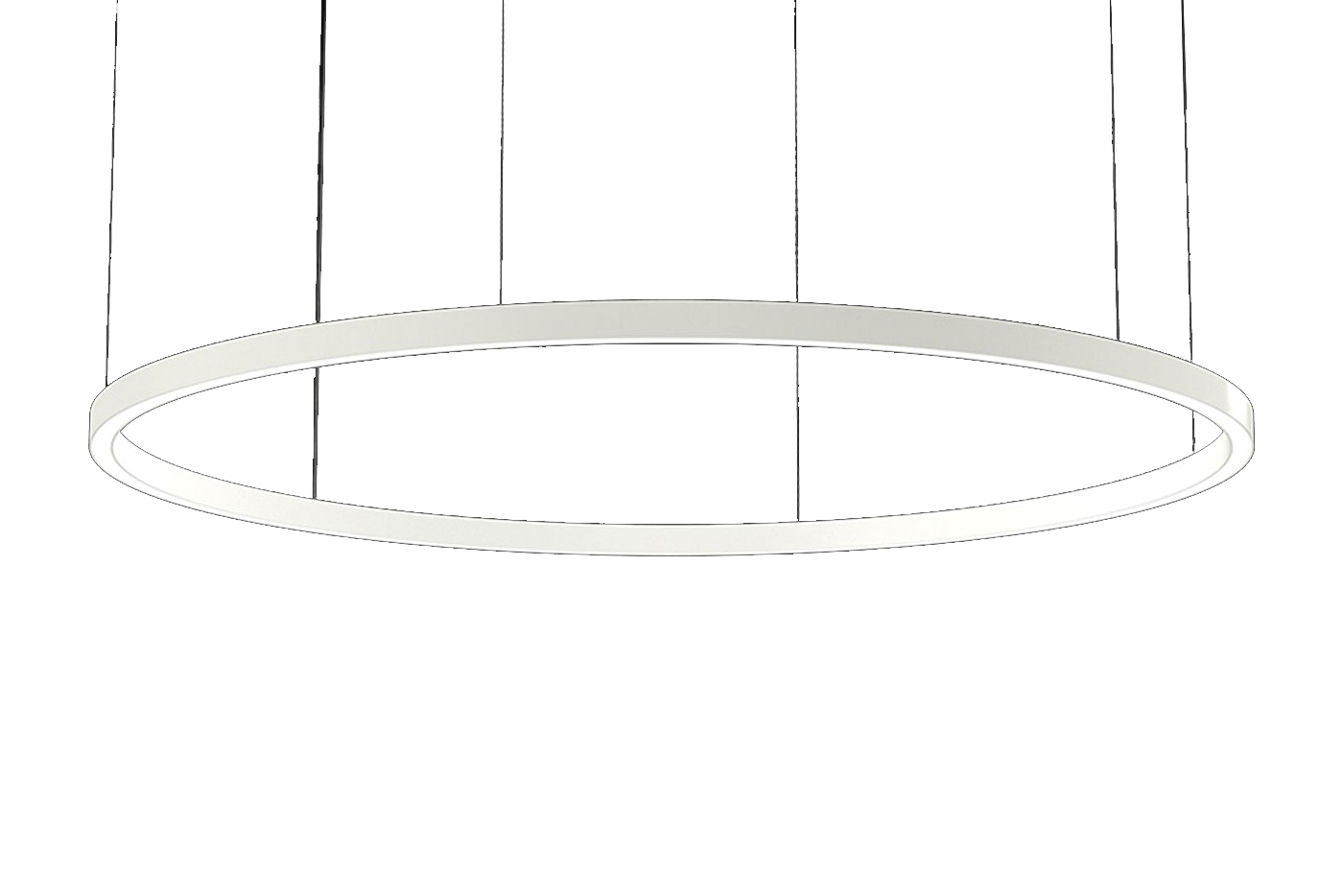

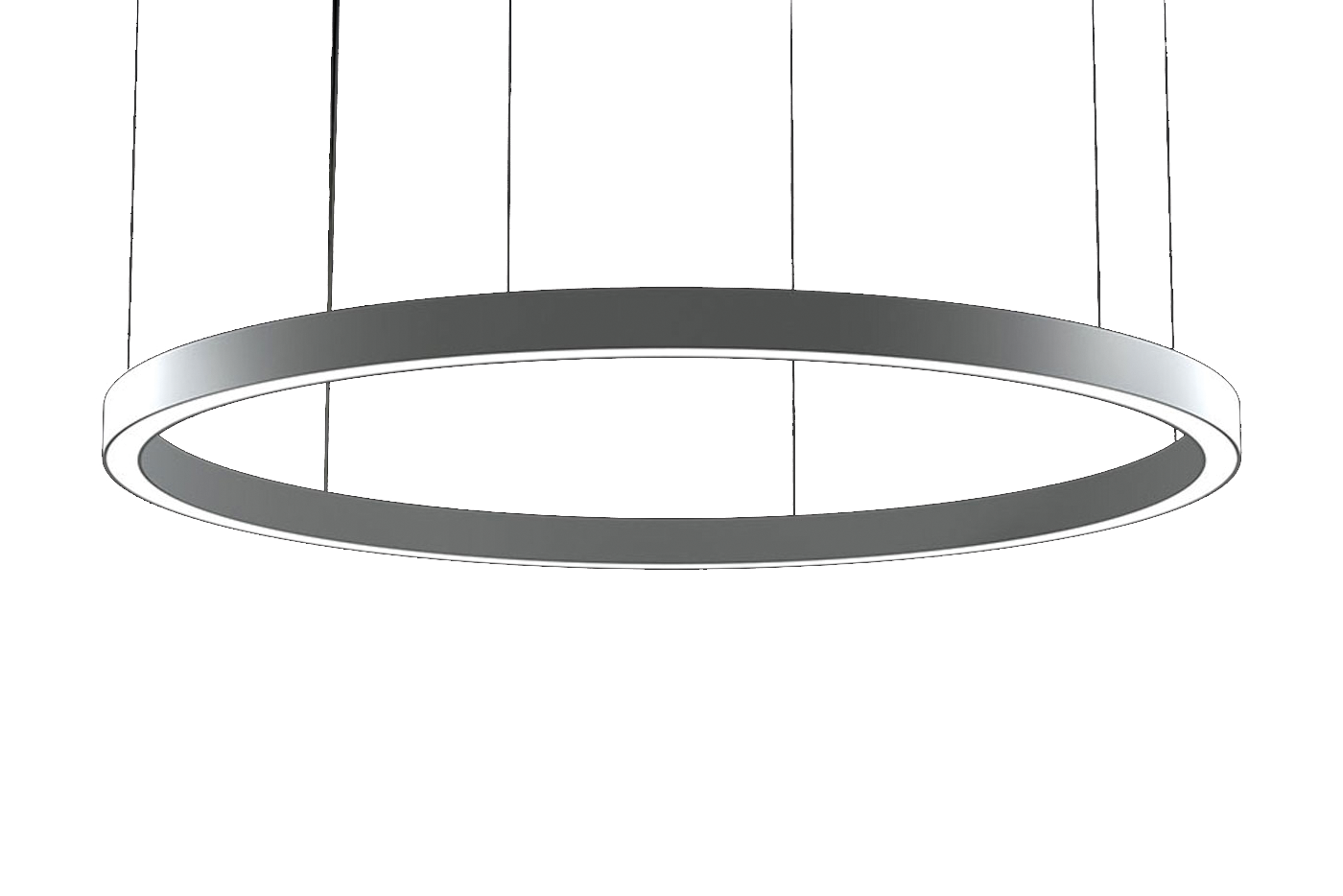

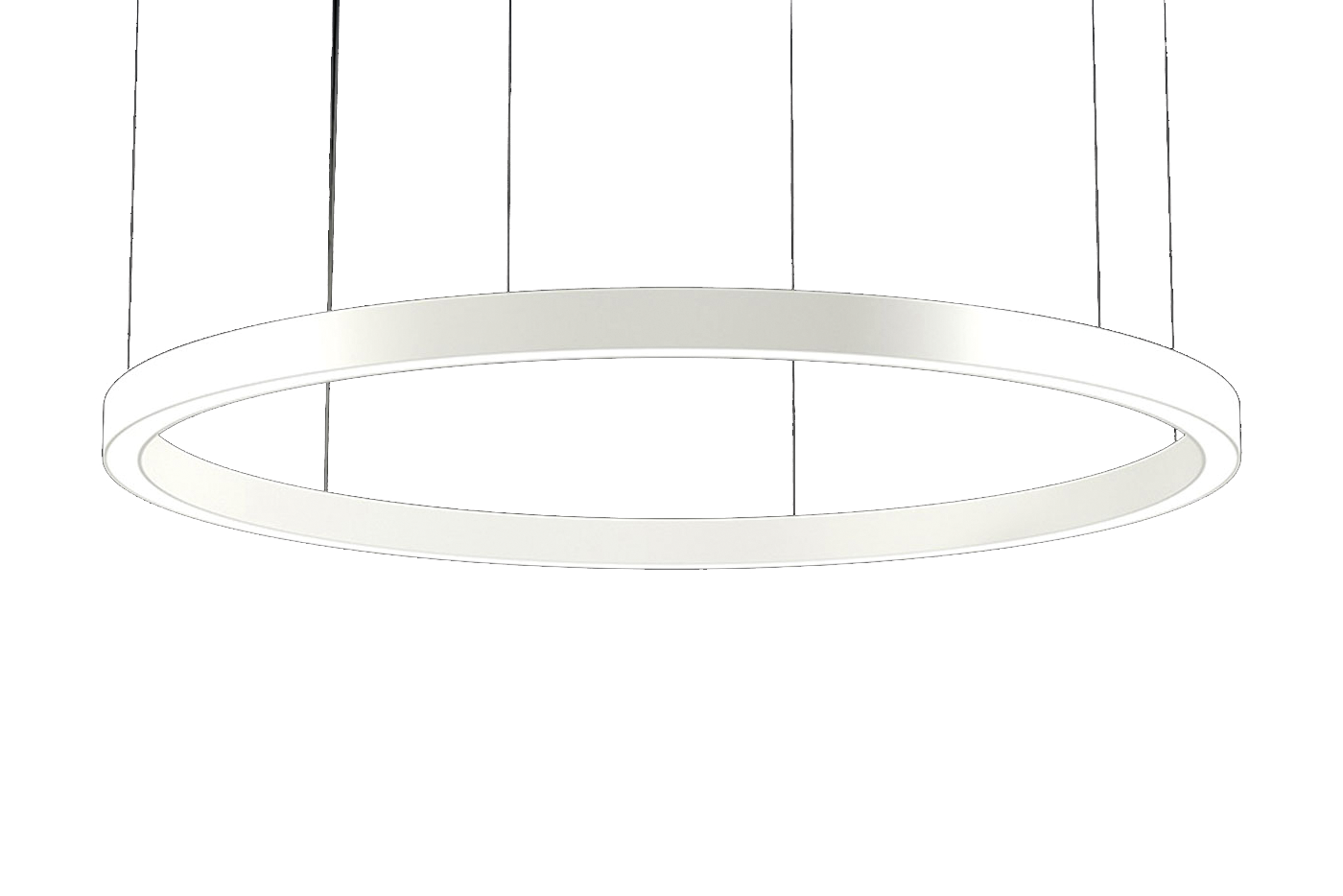

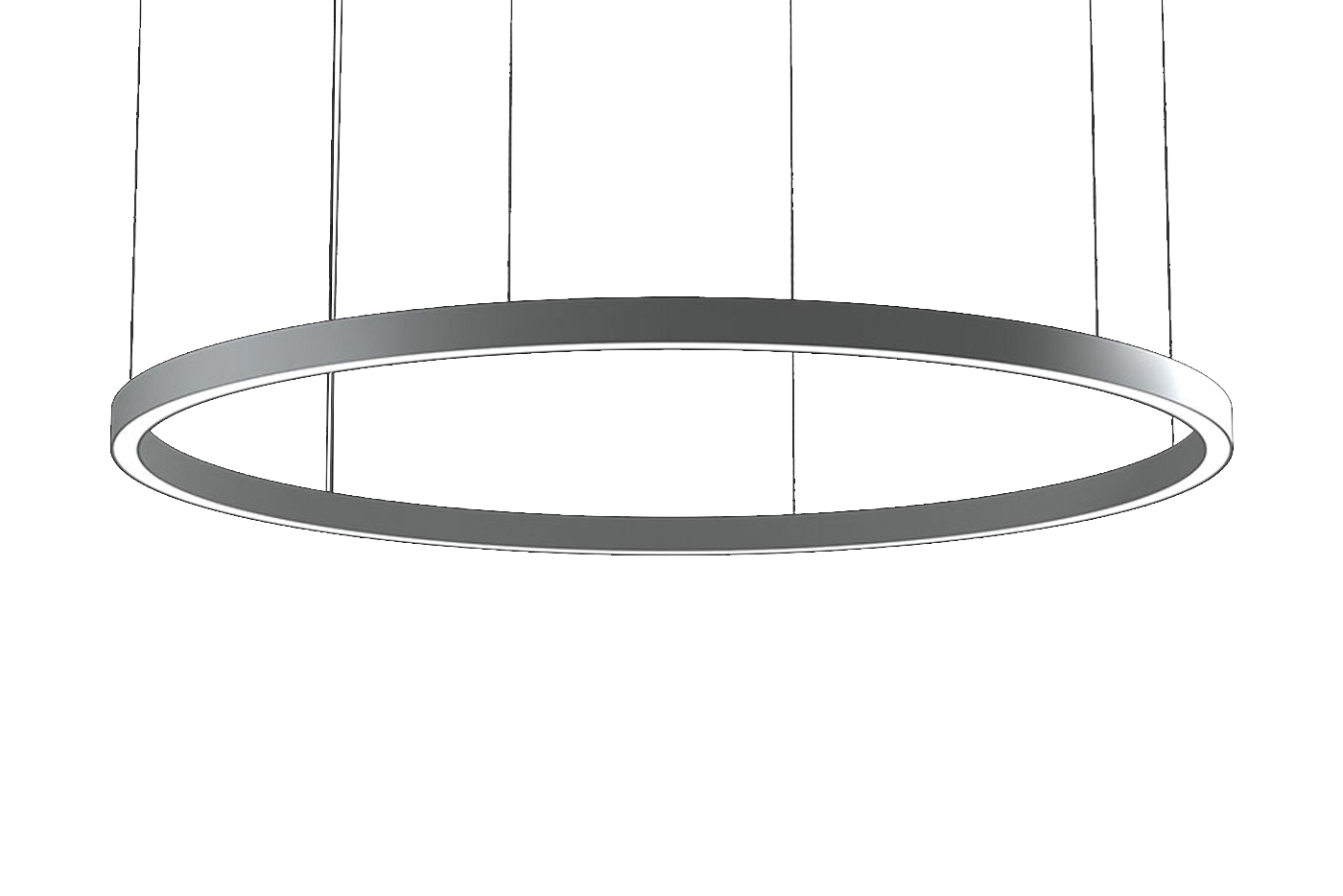

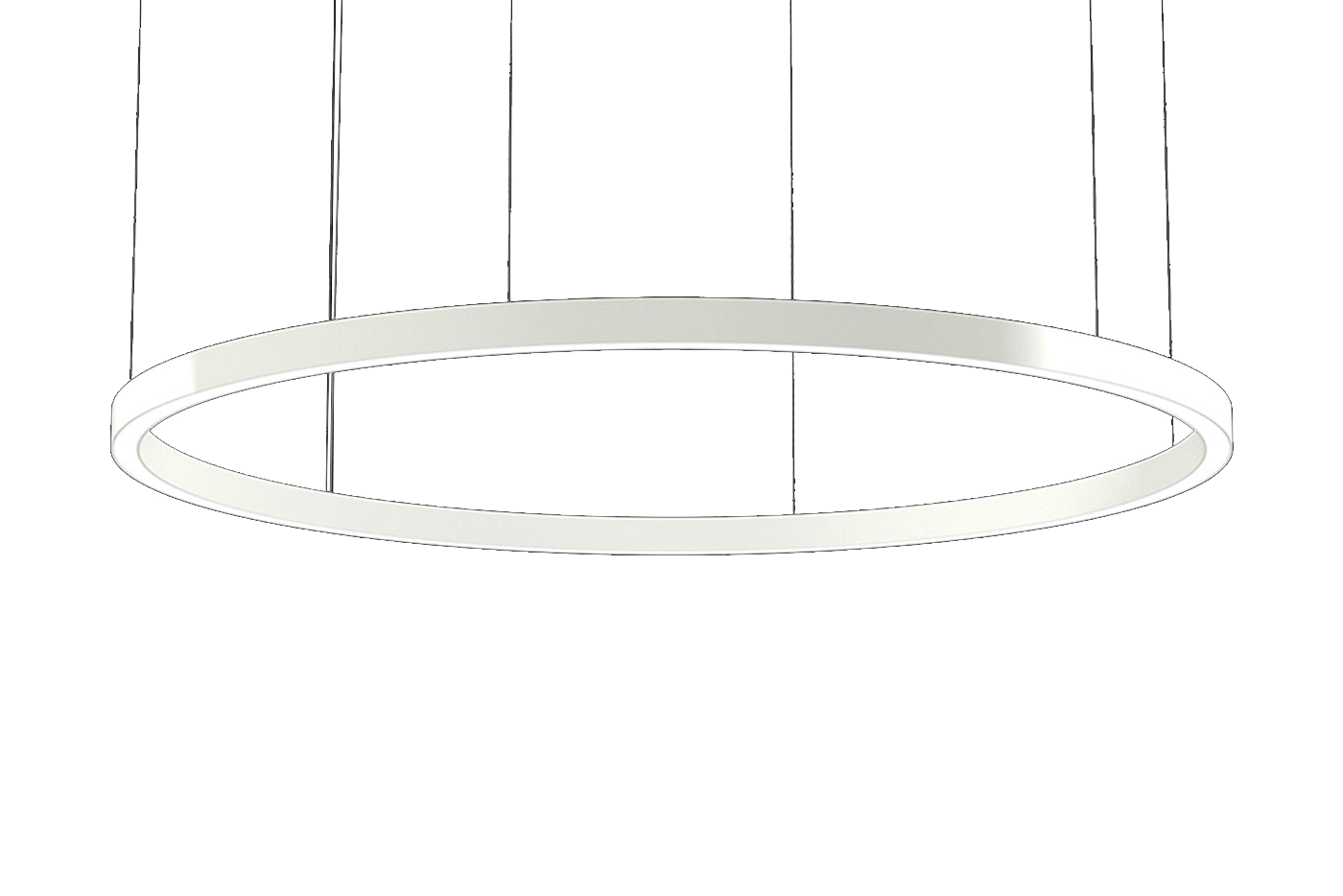

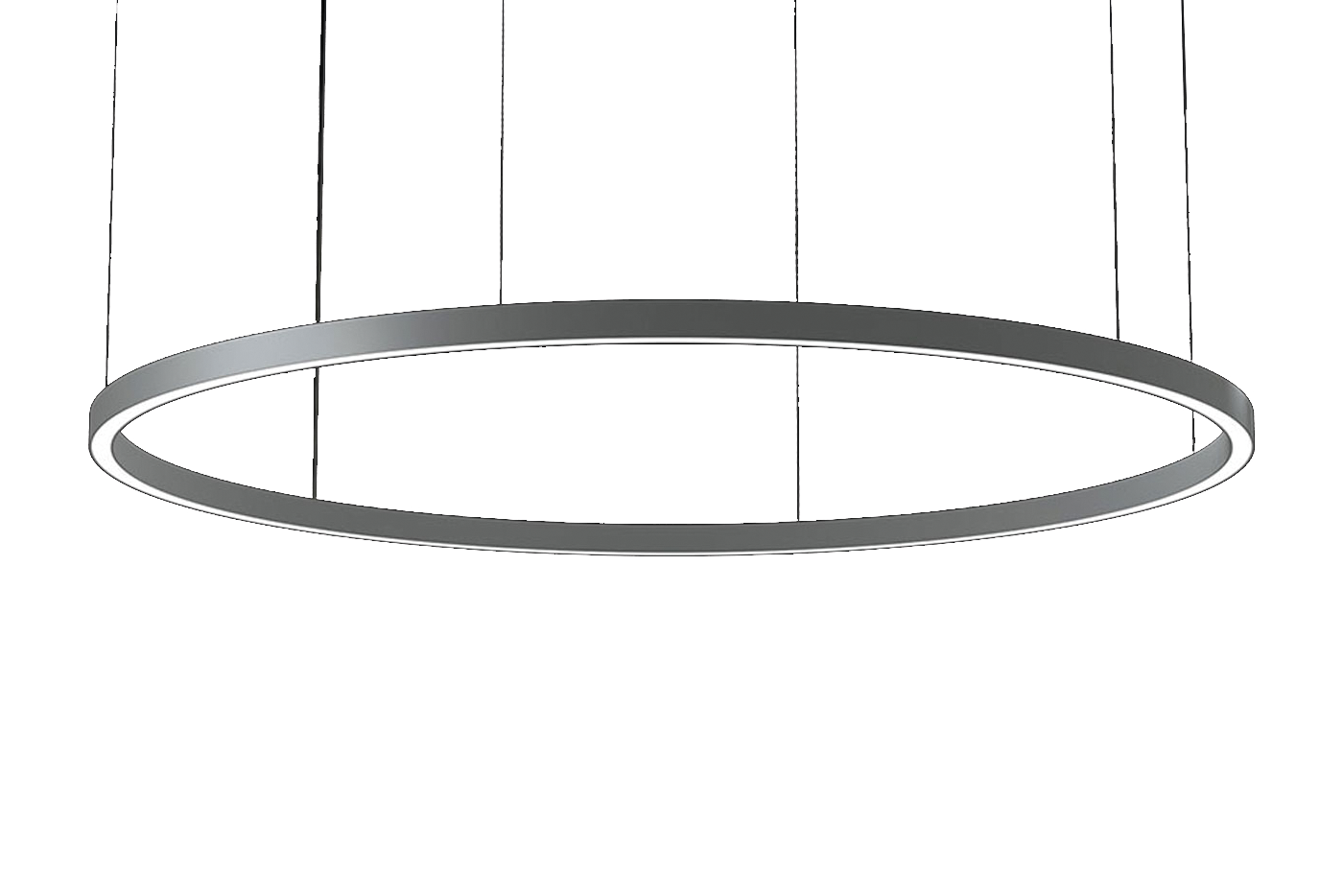

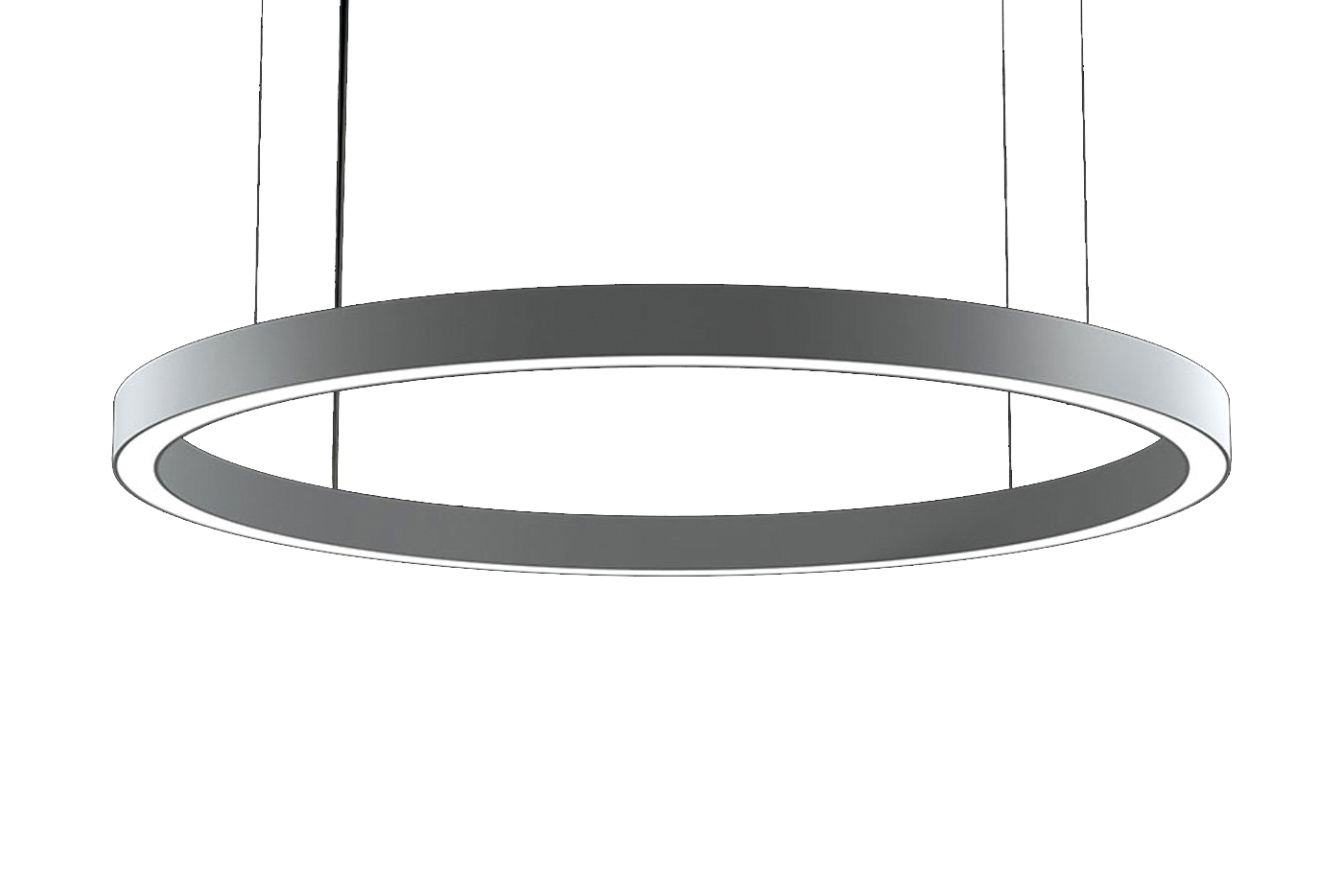

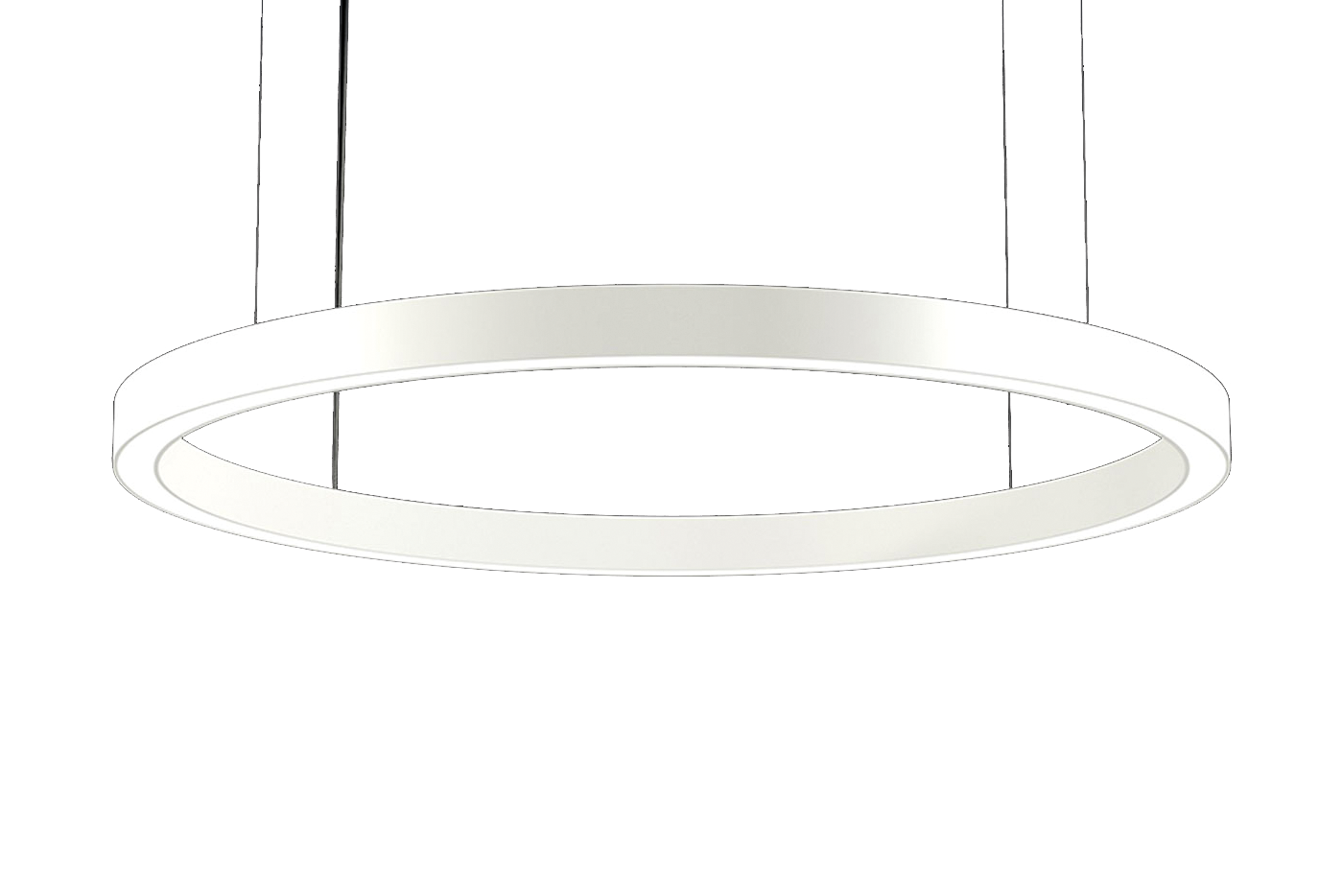

H140-K-I ... OS
Annular luminaire housing made of extruded aluminium profile with LED direct component by means of mid power LED modules. Opal cover on the underside with milled steps for homogenous illumination without direct view of LED units.
SPN0000133SI - H140-K-2500-1900/840-OS-DA-SI
Control:
DALI
Colour temperature:
4000 K
Luminous flux (lm): 19000
Power (W): 243
Efficiency (lm/W): 78
SPN0000133 - H140-K-2500-1900/840-OS-DA-W
Control:
DALI-2
Colour temperature:
4000 K
Luminous flux (lm): 19000
Power (W): 243
Efficiency (lm/W): 78
SPN0000134SI - H140-K-3000-2350/840-OS-DA-SI
Control:
DALI-2
Colour temperature:
4000 K
Luminous flux (lm): 23500
Power (W): 295
Efficiency (lm/W): 80
SPN0000134 - H140-K-3000-2350/840-OS-DA-W
Control:
DALI-2
Colour temperature:
4000 K
Luminous flux (lm): 23500
Power (W): 295
Efficiency (lm/W): 80
SPN0000135SI - H140-K-4000-3200/840-OS-DA-SI
Control:
DALI
Colour temperature:
4000 K
Luminous flux (lm): 32000
Power (W): 395
Efficiency (lm/W): 81
SPN0000136SI - H140-K-5000-4100/840-OS-DA-SI
Control:
DALI
Colour temperature:
4000 K
Luminous flux (lm): 41000
Power (W): 500
Efficiency (lm/W): 82
SPN0000136 - H140-K-5000-4100/840-OS-DA-W
Control:
DALI
Colour temperature:
4000 K
Luminous flux (lm): 41000
Power (W): 500
Efficiency (lm/W): 82
SPN0000137SI - H140-KI-2500-2900/840-OS-DA-SI
Control:
DALI
Colour temperature:
4000 K
Luminous flux (lm): 29000
Power (W): 329
Efficiency (lm/W): 88
SPN0000137 - H140-KI-2500-2900/840-OS-DA-W
Control:
DALI-2
Colour temperature:
4000 K
Luminous flux (lm): 29000
Power (W): 329
Efficiency (lm/W): 88
SPN0000138SI - H140-KI-3000-3600/840-OS-DA-SI
Control:
DALI
Colour temperature:
4000 K
Luminous flux (lm): 36000
Power (W): 403
Efficiency (lm/W): 89
SPN0000138 - H140-KI-3000-3600/840-OS-DA-W
Control:
DALI-2
Colour temperature:
4000 K
Luminous flux (lm): 36000
Power (W): 403
Efficiency (lm/W): 89
SPN0000139SI - H140-KI-4000-4900/840-OS-DA-SI
Control:
DALI
Colour temperature:
4000 K
Luminous flux (lm): 49000
Power (W): 542
Efficiency (lm/W): 90
SPN0000139 - H140-KI-4000-4900/840-OS-DA-W
Control:
DALI-2
Colour temperature:
4000 K
Luminous flux (lm): 49000
Power (W): 542
Efficiency (lm/W): 90
SPN0000140SI - H140-KI-5000-6300/840-OS-DA-SI
Control:
DALI
Colour temperature:
4000 K
Luminous flux (lm): 63000
Power (W): 690
Efficiency (lm/W): 91
SPN0000140 - H140-KI-5000-6300/840-OS-DA-W
Control:
DALI
Colour temperature:
4000 K
Luminous flux (lm): 63000
Power (W): 690
Efficiency (lm/W): 91
