F-LINE-RT2X115/20DA-SM / 0660581
Product Description
Pendant luminaire from the F-LINE product family. Optical control via Louvre, beam pattern symmetric, wide beam, light emission direct/indirect. Lamp R-TUBE not included, Exchange by end customer. The luminaire generates a rated luminous flux of 5210 lm in light colour 840, luminous flux adjustable: stepless. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Steel, white, protection rating IP20. With accessories, the luminaire is suitable for pendant mounting with wire pendant. Wire pendant, length 1.5 metres ZSPT2Z 190 for F-LINE-RT1..., or ZSPT2Z 295 for F-LINE-RT2... to be ordered separately (see accessories). Mains cable, length 1.5 metres with transparent sheath, to be ordered separately (see accessories). Straight, L-shaped, T-shaped and cross-shaped connectors are available for the production of F-LINE constructs. With electronic electrical component DALI. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
The light source is not included in the scope of delivery and must be ordered separately. Suitable light sources can be found in the light source overview.
Order Information
Item number | 0660581 |
GTIN | 4029299489996 |
General
Product category | Pendant luminaire |
Range of application | Education | Office |
Dimensions
Dimension L | 1253 mm |
Dimension B | 204 mm |
Dimension H | 37 mm |
Dimension AE max | 1190 mm |
Dimension AE min | 840 mm |
Net weight | 3.930 kg |
Mounting
Mounting type | Pendant | Attachment |
Mounting position | Ceiling |
Housing
Colour | white |
Farbe_Kurz | ws |
Protection class | IP20 |
Glow-wire test | 650 °C |
Permissible ambient temperature | -25–25 °C |
Housing material | Steel |
Cover material | Aluminium |
Electrical version
Type of control | DALI |
Nominal voltage | 220–240 V, 0/50–60 Hz |
Rated power | 42.0 W |
Protection class | I |
Lighting technology
Light guide | Louvre |
Light output | direct/indirect |
Light distribution | symmetric |
Radiation pattern | wide beam |

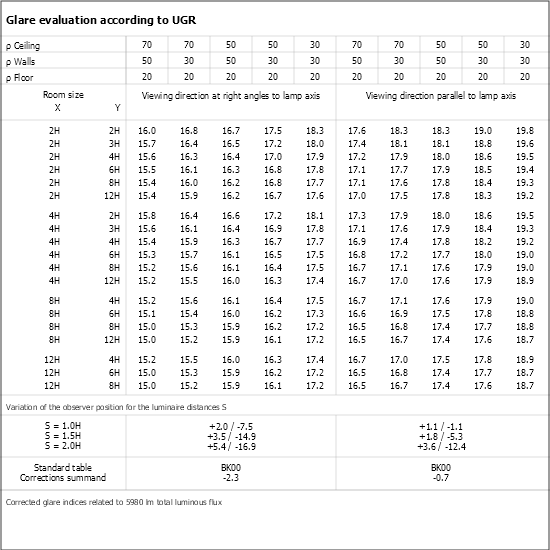

UGR class | ≤ 22 |
Rated luminous flux | 5210 lm |
Luminaire efficiency | 124 lm/W |
Light source
Lamp | R-TUBE |
Lamp included | No |
Colour rendering index Ra | ≥ 80 |
Colour temperature | 4000 K |
Colour location tolerance (SDCM) | < 3 SDCM |
Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center
Approvals:
Item number - Designation | Produktbeschreibung | Download | Wishlist |
0203583 - ZSPT2Z 295 SEILPENDEL TRAPEZ | Y-wire pendant mounting, ceiling fixture, cylinder, 1.5 m, 1 piece |
|
|
0202897 - ZSPT2ZE 295 BALDA.+SEILP. 1.5M | Y' wire pendant, rectangular canopy, 1.5m, 1 pc |
|
|
0202897SI - ZSPT2ZE 295 BALDA.+SP. 1.5M-SI | Y' wire pendant, rectangular canopy silver, 1.5m, 1 pc |
|
|
0202896 - ZSPT2ZH 295 BALDA.+SEILP. 1.5M | Y' wire pendant, domed canopy, white, 1.5m, 1 pc |
|
|
0202896SI - ZSPT2ZH 295 BALDA.+SP. 1.5M-SI | Y' wire pendant, domed canopy, silver, 1.5m, 1 pc |
|
|
0207971 - F-LINE-VS | Lum. connector f. F-LINE, 100mm, white, pendant m. only, 1 pc |
|
|
0207971SI - F-LINE-VS-SI | Lum. connector f. F-LINE, 100mm, silver, pendant m. only, 1 pc |
|
|
0208095 - F-LINE-VS-D | Lum. connector f. F-LINE, 100mm, white, ceiling surface m., 1 pc |
|
|
0208095SI - F-LINE-VS-D-SI | Lum. connector f. F-LINE, 100mm, silver, ceiling surface m., 1 pc |
|
|
0207974 - F-LINE-VSK 1../2.. | X-sh. lum. connector f. F-LINE, white, pendant m. only |
|
|
0207974SI - F-LINE-VSK 1../2.. SI | X-sh. lum. connector f. F-LINE, silver, pendant m. only |
|
|
0207972 - F-LINE-VSL 1../2.. | L-sh. lum. connector f. F-LINE, white, pendant m. only |
|
|
0207972SI - F-LINE-VSL 1../2.. SI | L-sh. lum. connector f. F-LINE, silver, pendant m. only |
|
|
0207973 - F-LINE-VST 1../2.. | T-sh. lum. connector f. F-LINE, white, pendant m. only |
|
|
0207973SI - F-LINE-VST 1../2.. SI | T-sh. lum. connector f. F-LINE, silver, pendant m. only |
|
|
0207977 - ZAL 3X1.5/1.5M-T | Connection cable transparent, 3x 1.5 mm², 1.5 m |
|
|
0207977/L300 - ZAL 3X1.5/3.0M-T | Transparent connecting cable, 3x1.5mm², 3.0 m. |
|
|
0207979 - ZKF 3X0.75/1.0M | Cable guide C-profile, for dia. 4-5mm, 1 metre, transparent |
|
|
0207978 - ZAL 5X1.5/1.5M-T | Connection cable transparent, 5x 1.5 mm², 1.5 m |
|
|
0203580 - ZAL 5X0.75/1.5M-T | Connection cable transparent, 5x 0.75 mm², 1.5 m |
|
|
0204332 - ZDBE | Canopy, angular, white, for wire pendant mounting Y-wire pendant, ZUSP and UKNS |
|
|
0204332SI - ZDBE-SI | Rect. canopy silver, for Y wire pendant, ZUSP and UKNS |
|
|
0201255 - ZIDV-F-LINE 28/3/1.5 | Through wiring F-LINE .28, 3x1.5mm², L=1.7m, max.10A |
|
|
0201256 - ZIDV-F-LINE 28/5/1.5 DIM | Through wiring F-LINE .28, 5x1.5mm², L=1.7m, max.10A |
|
|
0201253 - ZIDV-F-LINE 35/3/1.5 | Through wiring F-LINE .35, 3x1.5mm², L=2.0m, max.10A |
|
|
0201254 - ZIDV-F-LINE 35/5/1.5 DIM | Through wiring F-LINE .35, 5x1.5mm², L=2.0m, max.10A |
|
|
0204003 - ZRO RAHMENÖFFNER | Tool for easy opening of the light frame |
|
|
Item number - Bezeichnung | Length | Colour temperature | Characteristic | ||
0206933LD - RT360 115-840M0300 LD | 1143 | 4000 K | matt |
|
|
0206932LD - RT360 115-830M0300 LD | 1143 | 3000 K | matt |
|
|
0206934LD - RT360 115-865M0300 LD | 1143 | 6500 K | matt |
|
|
