RT360 115-840M0300 LD / 0206933LD
Product Description
Design: LED lamp RIDI-TUBE 360, colour rendering Ra >= 80, standard colour tolerance < 3 Step MacAdam (initial), IP20 protection rating. LED modules configured as a linear circuit board, fitted on both sides with 70% direct light and 30% indirect light component. Mid-power LEDs for even illumination and maximum efficiency. Lampholder in durable PC, white. Operation with an external LED driver (mounted in the luminaire), constant current, safety extra low voltage less than 60 Volts (SELV conformity).
Order Information
| Item number | 0206933LD |
| GTIN | 4029299555011 |
Dimensions
| Dimension L | 1143 mm |
| Dimension B | 20 mm |
| Dimension H | 20 mm |
| Net weight | 0.184 kg |
Technical data
| Colour temperature | 4000 K |
| Illuminant luminous flux | 2990 lm |
| Lamp wattage | 18 W |
| Luminaire efficiency | 166,1 lm/W |
| Colour rendering index Ra | ≥ 80 |
| Power consumption | 0.65 mA |
| Energy consumption | 20 kWh/1.000 h |
| Energy efficiency class | D |
Download Center
Approvals:
<P><B>Design:</B> LED lamp RIDI-TUBE 360, colour rendering Ra >= 80, standard colour tolerance < 3 Step MacAdam (initial), IP20 protection rating. LED modules configured as a linear circuit board, fitted on both sides with 70% direct light and 30% indirect light component. Mid-power LEDs for even illumination and maximum efficiency. Lampholder in durable PC, white. Operation with an external LED driver (mounted in the luminaire), constant current, safety extra low voltage less than 60 Volts (SELV conformity).</P>
Order Information
| Item number | 0206933LD |
| GTIN | 4029299555011 |
Dimensions
| Dimension L | 1143 mm |
| Dimension B | 20 mm |
| Dimension H | 20 mm |
| Net weight | 0.184 kg |
Technical data
| Colour temperature | 4000 K |
| Illuminant luminous flux | 2990 lm |
| Lamp wattage | 18 W |
| Luminaire efficiency | 166,1 lm/W |
| Colour rendering index Ra | ≥ 80 |
| Power consumption | 0.65 mA |
| Energy consumption | 20 kWh/1.000 h |
| Energy efficiency class | D |
Download Center

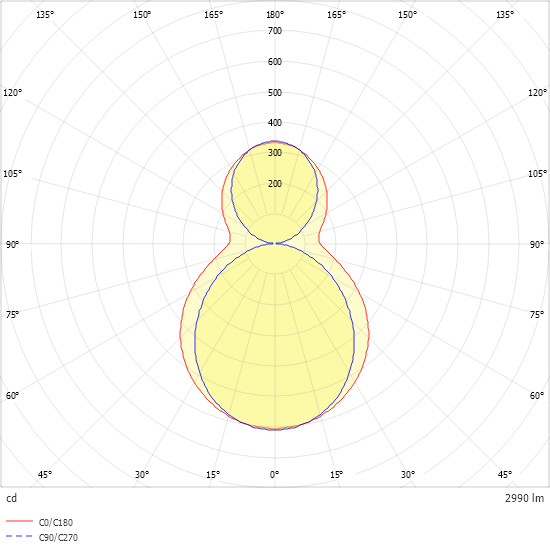

Light distribution curve
