EDLQ 235/4000-840 SM-DALI / 0331383
Product Description
Downlight from the EDLQ product family. Optical control via Reflector, beam pattern symmetric, wide beam, light emission direct. Lamp LED-M installed, Replacement by specialist. The luminaire generates a rated luminous flux of 4090 lm in light colour 840, luminous flux adjustable: stepless. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Steel, white, protection rating IP20. Standard fixing clamps for clamping thicknesses from 0 to 40 mm. Other clamping thicknesses or fixing kits for special ceilings on request. With electronic electrical component DALI. Replacement by specialist. Rated voltage 230 - 240 V AC/DC 50 - 60 Hz.
Note LABS: These luminaries are suitable for use in paint processing operations outside the painting area or outside of solvent processing areas.
Order Information
| Item number | 0331383 |
| GTIN | 4029299444216 |
General
| Product category | Downlight |
| Range of application | Education | Retail |
Dimensions
| Dimension L | 235 mm |
| Dimension B | 235 mm |
| Dimension H | 180 mm |
| Dimension B1 | 115 mm |
| Dimension BA max | 210 mm |
| Dimension BA min | 207 mm |
| Dimension HE | 185 mm |
| Dimension L1 | 255 mm |
| Dimension L4 | 275 mm |
| Dimension Q | 235 mm |
| Net weight | 1.600 kg |
Mounting
| Mounting type | Installation |
Housing
| Colour | white |
| Farbe_Kurz | ws |
| Protection class | IP20 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -25–25 °C |
| Housing material | Steel |
| Cover material | PC clear |
Electrical version
| Type of control | DALI |
| Nominal voltage | 230–240 V, 0/50–60 Hz |
| Rated power | 31.0 W |
| Protection class | I |
Lighting technology
| Light guide | Reflector |
| Reflector | matt |
| Light output | direct |
| Light distribution | symmetric |
| Radiation pattern | wide beam |
| UGR class | ≤ 19 |
| Rated luminous flux | 4090 lm |
| Luminaire efficiency | 132 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center
Approvals:
| Item number - Designation | Produktbeschreibung | Download | Wishlist |
| 0203031 - BET EDLQ 235 | Concrete casting box for EDLQ 235 -in-situ concrete only- |
|
|
| 0208877 - DQ235-ASLP-K-D-W | PMMA panel, longitudinal prisms for asym. light distribution, white |
|
|
| 0209011 - DQ235-DPO-K-D-W | Panel PMMA, embossed opal micro-prisms, white decorative frame |
|
|
| 0209014 - DQ235-DPS-K-D-W | Panel PMMA, protruding micro-prisms, white decorative frame |
|
|
0204427 -
DQ235-DR-B-W
|
Decor frame, white |
|
|
| 0209020 - DQ235-MPS-K-D-W | Panel PMMA, embossed micro-prisms, white decorative frame |
|
|
| 0204177 - DQ235-RM-G-SB-W | Decorative glass ESG, interior open, matt finish, white decorative frame |
|
|
0204437 -
DQ235-SK-G-D-W
|
Transparent float glass disc with white decorative ring |
|
|
0204432 -
DQ235-SM-G-D-W
|
Float glass disc, matt finish, with white decorative frame |
|
|
0204165 -
DQ235-SO-G-D-W
|
Opal float glass disc with white decorative ring |
|
|
| 0209017 - DQ235-SOM-K-D-W | Panel PMMA, opal satin finish, white decorative frame |
|
|
0204422 -
DQ235-SPM-G-SB-W
|
Decorative safety glass, matt interior, white decor frame |
|
|
0201069 -
UGEBD ... -UR
|
Changeover relay for EBD..., (not for HIT lamps) |
|
|
| 0202497 - ZV-EDLR-B90 | Fresnel lens, half-peak angle of 90 degrees, PC |
|
|
| 0202496 - ZV-EDLR-T60 | Fresnel lens, half-peak angle of 60 degrees, PC |
|
|
Downlight from the EDLQ product family. Optical control via Reflector, beam pattern symmetric, wide beam, light emission direct. Lamp LED-M installed, Replacement by specialist. The luminaire generates a rated luminous flux of 4090 lm in light colour 840, luminous flux adjustable: stepless. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Steel, white, protection rating IP20. Standard fixing clamps for clamping thicknesses from 0 to 40 mm. Other clamping thicknesses or fixing kits for special ceilings on request. With electronic electrical component DALI. Replacement by specialist. Rated voltage 230 - 240 V AC/DC 50 - 60 Hz.
Note LABS: These luminaries are suitable for use in paint processing operations outside the painting area or outside of solvent processing areas.
Order Information
| Item number | 0331383 |
| GTIN | 4029299444216 |
General
| Product category | Downlight |
| Range of application | Education | Retail |
Dimensions
| Dimension L | 235 mm |
| Dimension B | 235 mm |
| Dimension H | 180 mm |
| Dimension B1 | 115 mm |
| Dimension BA max | 210 mm |
| Dimension BA min | 207 mm |
| Dimension HE | 185 mm |
| Dimension L1 | 255 mm |
| Dimension L4 | 275 mm |
| Dimension Q | 235 mm |
| Net weight | 1.600 kg |
Mounting
| Mounting type | Installation |
Housing
| Colour | white |
| Farbe_Kurz | ws |
| Protection class | IP20 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -25–25 °C |
| Housing material | Steel |
| Cover material | PC clear |
Electrical version
| Type of control | DALI |
| Nominal voltage | 230–240 V, 0/50–60 Hz |
| Rated power | 31.0 W |
| Protection class | I |
Lighting technology
| Light guide | Reflector |
| Reflector | matt |
| Light output | direct |
| Light distribution | symmetric |
| Radiation pattern | wide beam |
| UGR class | ≤ 19 |
| Rated luminous flux | 4090 lm |
| Luminaire efficiency | 132 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center

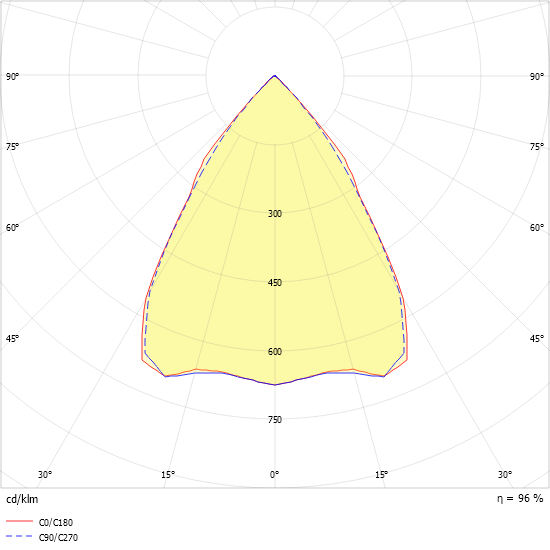

Light distribution curve
