EDLQ 235 ... SM

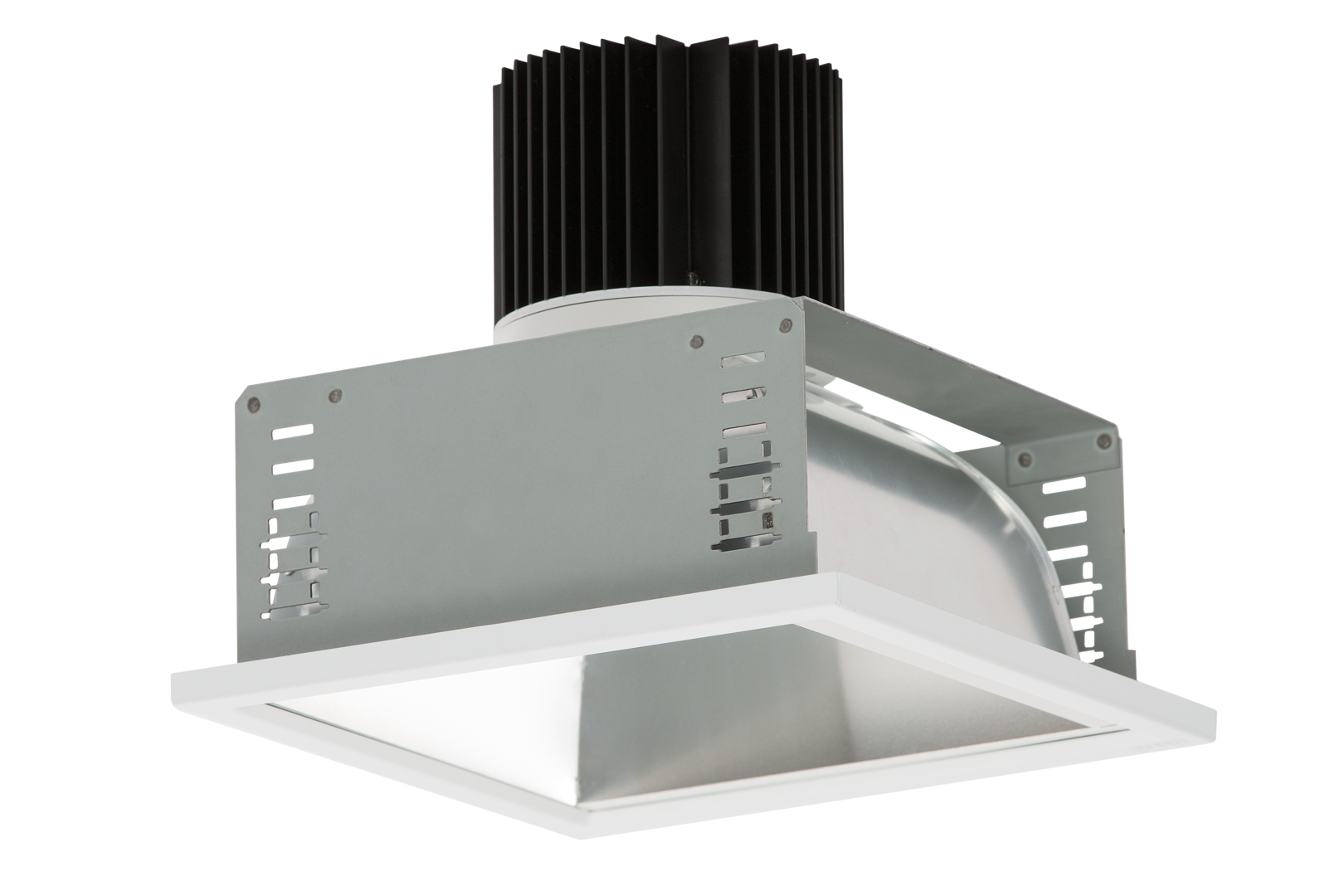

Design: Square recessed downlighter, edge length 235 mm with LED module, comprising of reflector housing and gear tray. Fitted with RIDI LED module, 2000, 3000, 4000 and 5000 lumen with passive heat sink. Protection rating on the room side IP 40, ceiling side IP20
0321380 - EDLQ 235/2000-830 SM
Control:
On/Off
Colour temperature:
3000 K
Luminous flux (lm): 2020
Power (W): 16
Efficiency (lm/W): 126
0331380 - EDLQ 235/2000-830 SM-DALI
Control:
DALI
Colour temperature:
3000 K
Luminous flux (lm): 2020
Power (W): 16
Efficiency (lm/W): 126
0321379 - EDLQ 235/2000-840 SM
Control:
On/Off
Colour temperature:
4000 K
Luminous flux (lm): 2020
Power (W): 16
Efficiency (lm/W): 126
0331379 - EDLQ 235/2000-840 SM-DALI
Control:
DALI
Colour temperature:
4000 K
Luminous flux (lm): 2020
Power (W): 16
Efficiency (lm/W): 126
0321382 - EDLQ 235/3000-830 SM
Control:
On/Off
Colour temperature:
3000 K
Luminous flux (lm): 3180
Power (W): 23
Efficiency (lm/W): 138
0331382 - EDLQ 235/3000-830 SM-DALI
Control:
DALI
Colour temperature:
3000 K
Luminous flux (lm): 3180
Power (W): 23
Efficiency (lm/W): 138
0321381 - EDLQ 235/3000-840 SM
Control:
On/Off
Colour temperature:
4000 K
Luminous flux (lm): 3180
Power (W): 23
Efficiency (lm/W): 138
0331381 - EDLQ 235/3000-840 SM-DALI
Control:
DALI
Colour temperature:
4000 K
Luminous flux (lm): 3180
Power (W): 23
Efficiency (lm/W): 138
Control:
DALI
Colour temperature:
3000–6500 K
Luminous flux (lm): 3210
Power (W): 28
Efficiency (lm/W): 115
0321384 - EDLQ 235/4000-830 SM
Control:
On/Off
Colour temperature:
3000 K
Luminous flux (lm): 4090
Power (W): 31
Efficiency (lm/W): 132
0331384 - EDLQ 235/4000-830 SM-DALI
Control:
DALI
Colour temperature:
3000 K
Luminous flux (lm): 4090
Power (W): 31
Efficiency (lm/W): 132
0321383 - EDLQ 235/4000-840 SM
Control:
On/Off
Colour temperature:
4000 K
Luminous flux (lm): 4090
Power (W): 31
Efficiency (lm/W): 132
0331383 - EDLQ 235/4000-840 SM-DALI
Control:
DALI
Colour temperature:
4000 K
Luminous flux (lm): 4090
Power (W): 31
Efficiency (lm/W): 132
0321466 - EDLQ 235/5000-830 SM
Control:
On/Off
Colour temperature:
3000 K
Luminous flux (lm): 5200
Power (W): 44
Efficiency (lm/W): 118
0331466 - EDLQ 235/5000-830 SM-DALI
Control:
DALI
Colour temperature:
3000 K
Luminous flux (lm): 5200
Power (W): 44
Efficiency (lm/W): 118
0321465 - EDLQ 235/5000-840 SM
Control:
On/Off
Colour temperature:
4000 K
Luminous flux (lm): 5200
Power (W): 44
Efficiency (lm/W): 118
0331465 - EDLQ 235/5000-840 SM-DALI
Control:
DALI
Colour temperature:
4000 K
Luminous flux (lm): 5200
Power (W): 44
Efficiency (lm/W): 118
