EBRE-LED 228/8TW-MPO / 0832966
Product Description
Ceiling light from the EBRE product family. Optical control via Opal cover, beam pattern symmetric, extremely wide beam, light emission direct. Lamp LED-M installed, Replacement by specialist. The luminaire generates a rated luminous flux of 3500 lm in light colour 8TW, luminous flux adjustable: stepless. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Steel, traffic white, similar to RAL 9016, protection rating IP20 IP40 room side. Installation in various ceiling systems with corresponding fixing kit, or lay-in mounting in ceiling systems with visible trunking and inserted ceiling tiles. No additional fixing accessories are required for lay-in mounting. With electronic electrical component DALI-2. Replacement by specialist. Rated voltage 220 - 240 V AC 50 - 60 Hz.
Order Information
| Item number | 0832966 |
| GTIN | 4029299479720 |
General
| Product category | Ceiling light |
| Range of application | Education | Office |
Dimensions
| Dimension L | 1247 mm |
| Dimension B | 310 mm |
| Dimension H | 60 mm |
| Dimension BE | 292 mm |
| Dimension LE | 1229 mm |
| Net weight | 7.700 kg |
Mounting
| Mounting type | Installation |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP20 | IP40 room side |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -25–25 °C |
| Housing material | Steel |
| Cover material | PMMA opal |
Electrical version
| Type of control | DALI-2 |
| Nominal voltage | 220–240 V, 50–60 Hz |
| Rated power | 34.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Opal cover |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | extremely wide beam |
| UGR class | ≤ 19 |
| Rated luminous flux | 3500 lm |
| Luminaire efficiency | 103 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 3000–6500 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center
Approvals:
| Item number - Designation | Produktbeschreibung | Download | Wishlist |
0210779 -
ZBS-E DIPLING
|
Fixing kit EBR... for Dipling KP, height 8 mm |
|
|
|
0210777 -
ZBS-E ECOPHON
|
Fixing kit EBR... for Ecophon Focus Ds/Dg, height 14 mm |
|
|
|
0210782 -
BEF.-SATZ EBR.. OWA S32
|
Fixing kit EBR... for OWA S32, height 10.0 mm |
|
|
0210717 -
ZBS-E UNI 10-717
|
Universal fixing kit, 45 to 80mm clamping thickness |
|
|
0210713 -
ZBS-E UNI 10-713
|
Universal fixing kit, 23 to 55mm clamping thickness |
|
|
| 0210783 - ZBS-E OWA S32 IP54 10-783 | Fixing kit EBR... IP54 for OWA S32, height 10.0 mm |
|
|
0210770 -
ZBS-E UNI CLIP 10-770
|
Fixing clip EBR..clamping thickn. T16: 12-25mm, T26: 12-50mm |
|
|
0210127 -
ZBS-E BR 10-127
|
Fixing kit for trim strip ceilings |
|
|
0204003 -
ZRO RAHMENÖFFNER
|
Tool for easy opening of the light frame |
|
|
Ceiling light from the EBRE product family. Optical control via Opal cover, beam pattern symmetric, extremely wide beam, light emission direct. Lamp LED-M installed, Replacement by specialist. The luminaire generates a rated luminous flux of 3500 lm in light colour 8TW, luminous flux adjustable: stepless. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Steel, traffic white, similar to RAL 9016, protection rating IP20 IP40 room side. Installation in various ceiling systems with corresponding fixing kit, or lay-in mounting in ceiling systems with visible trunking and inserted ceiling tiles. No additional fixing accessories are required for lay-in mounting. With electronic electrical component DALI-2. Replacement by specialist. Rated voltage 220 - 240 V AC 50 - 60 Hz.
Order Information
| Item number | 0832966 |
| GTIN | 4029299479720 |
General
| Product category | Ceiling light |
| Range of application | Education | Office |
Dimensions
| Dimension L | 1247 mm |
| Dimension B | 310 mm |
| Dimension H | 60 mm |
| Dimension BE | 292 mm |
| Dimension LE | 1229 mm |
| Net weight | 7.700 kg |
Mounting
| Mounting type | Installation |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP20 | IP40 room side |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -25–25 °C |
| Housing material | Steel |
| Cover material | PMMA opal |
Electrical version
| Type of control | DALI-2 |
| Nominal voltage | 220–240 V, 50–60 Hz |
| Rated power | 34.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Opal cover |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | extremely wide beam |
| UGR class | ≤ 19 |
| Rated luminous flux | 3500 lm |
| Luminaire efficiency | 103 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 3000–6500 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center

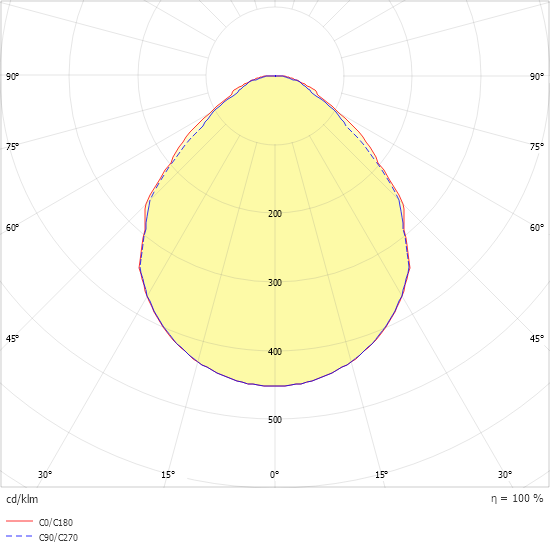

Light distribution curve
