AL-R1X145/45DA-SM / 0660572
Product Description
Ceiling light from the AL product family. Optical control via Louvre, beam pattern symmetric, wide beam, light emission direct. Lamp R-TUBE not included, Exchange by end customer. The luminaire generates a rated luminous flux of 5540 lm in light colour 840, luminous flux adjustable: stepless. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Steel, traffic white, similar to RAL 9016, protection rating IP20. Single or continuous luminaire mounting. Patented quick-connect mechanism for continuous mounting. Ceiling mounting with enclosed accessories. Pendant mounting with corresponding fixing kits, see accessories. With electronic electrical component DALI. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
The light source is not included in the scope of delivery and must be ordered separately. Suitable light sources can be found in the light source overview.
Order Information
| Item number | 0660572 |
| GTIN | 4029299495102 |
General
| Product category | Ceiling light |
| Range of application | Education | Office |
| Guarantee | 5 years |
Dimensions
| Dimension L | 1480 mm |
| Dimension B | 90 mm |
| Dimension H | 90 mm |
| Dimension AE | 1430 mm |
| Net weight | 2.500 kg |
Mounting
| Mounting type | Attachment | Pendant |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP20 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -25–25 °C |
| Housing material | Steel |
Electrical version
| Type of control | DALI |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 48.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Louvre |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | wide beam |

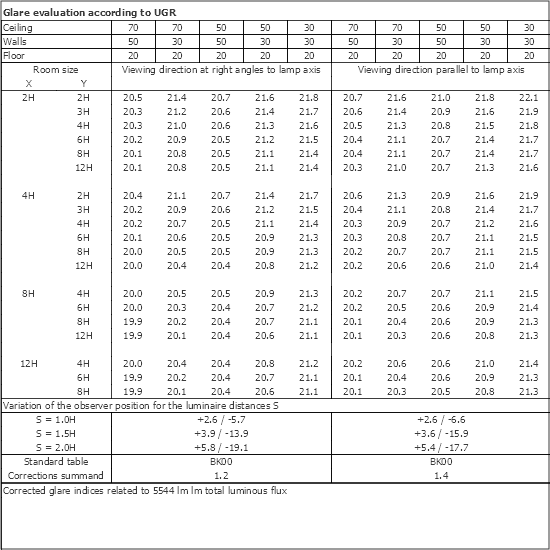

| UGR class | ≤ 22 |
| Rated luminous flux | 5540 lm |
| Luminaire efficiency | 115 lm/W |
Light source
| Lamp | R-TUBE |
| Lamp included | No |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center
Approvals:
| Item number - Designation | Produktbeschreibung | Download | Wishlist |
0201635 -
DADS
|
White ceiling outlet for wire + power supply 3 x 1.5 mm² |
|
|
0201636 -
DAD
|
White ceiling outlet box for power supply, 3 x 1.5 mm², D70 x H24 |
|
|
0203580 -
ZAL 5X0.75/1.5M-T
|
Connection cable transparent, 5x 0.75 mm², 1.5 m |
|
|
|
0203579 -
ZAL 3X0.75/1.5M-T
|
Connection cable transparent, 3x 0.75 mm², 1.5 m |
|
|
0203779 -
AL-E
|
End cap for AL/ALI, white, sheet steel |
|
|
0204332 -
ZDBE
|
Canopy, angular, white, for wire pendant mounting Y-wire pendant, ZUSP and UKNS |
|
|
0201239 -
ZUSP SEILPENDEL UNIV. 1.5M
|
Wire pendant w. ceiling fixing and wire clamp, 1.5m, 1 pc |
|
|
0205021 -
ZRPH 100 PENDELROHR 1.0M
|
Tube pendant, domed canopy, white, L=1.0 m, 1 pc |
|
|
|
0205020 -
ZRPH 050 PENDELROHR 0.5M
|
Tube pendant, domed canopy, white, L=0.5m, 1 pc |
|
|
0200805 -
ZWL NETZZULEITUNG 3X1.5/1M
|
White spiral cable, 3 x 1.5 mm², L= 1.0 metre |
|
|
0205019 -
ZUSPH AUTOM.-KLEMME 1.5M
|
Wire pendant, domed canopy, white, wire clamp, 1.5m, 1 pc |
|
|
| Item number - Bezeichnung | Length | Colour temperature | Characteristic | ||
| 0206173LD - R-TUBE 145-840M0700 LD | 1449 | 4000 K | matt |
|
|
| 0206997LD - R-TUBE 145-830M0650 LD | 1449 | 3000 K | matt |
|
|
| 0206176LD - R-TUBE 145-865M0700 LD | 1449 | 6500 K | matt |
|
|
| 1206603LD - R-TUBE-G2 145-830M0450 LD | 1449 | 3000 K | matt |
|
|
| 1206598LD - R-TUBE-G2 145-840M0450 LD | 1449 | 4000 K | matt |
|
|
| 1206782LD - R-TUBE-G2 145-865M0450 LD | 1449 | 6500 K | matt |
|
|
| 1206579LD - R-TUBE-G2 145-830M0350 LD | 1449 | 3000 K | matt |
|
|
| 1204993LD - R-TUBE-G2 145-840M0350 LD | 1449 | 4000 K | matt |
|
|
| 1206725LD - R-TUBE-G2 145-865M0350 LD | 1449 | 6500 K | matt |
|
|
| 0206988LD - R-TUBE 145-830M0550 LD | 1449 | 3000 K | matt |
|
|
| 0206991LD - R-TUBE 145-840M0550 LD | 1449 | 4000 K | matt |
|
|
| 0206994LD - R-TUBE 145-865M0550 LD | 1449 | 6500 K | matt |
|
|
