RUFO2 – FLAT DIFFUSER LUMINAIRES FOR HARMONIOUS AMBIENT LIGHTING
The diffuser luminaires in the RUFO2 luminaire range impress with their flat design and discreet, velvet-satinised surface. With an opal plastic diffuser in a semi-circular or cylindrical shape, they blend harmoniously into any architecture. Whether as a wall or ceiling light, arranged individually or in groups, they provide a soft, pleasant light. RUFO2 offers efficient lighting solutions in three sizes and two designs for a wide range of applications.
TWO DESIGNS

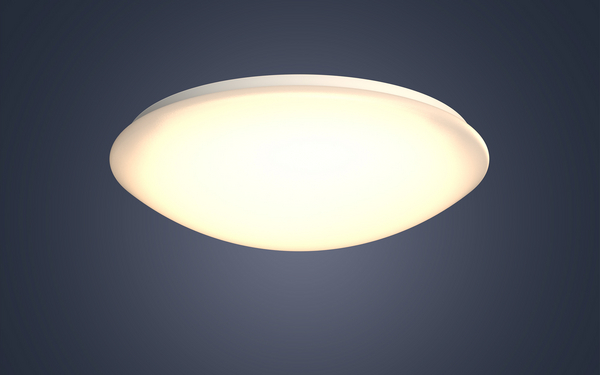

RUFO2

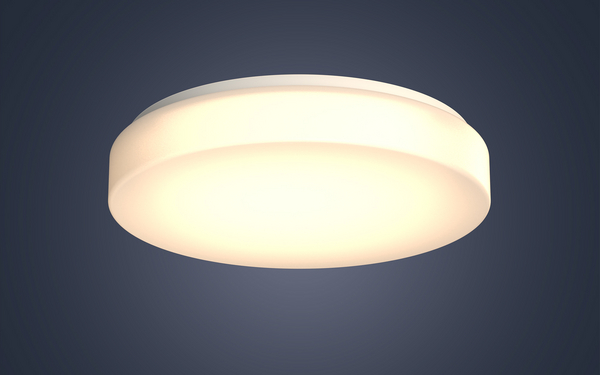

RUFO2 Z
THREE SIZES

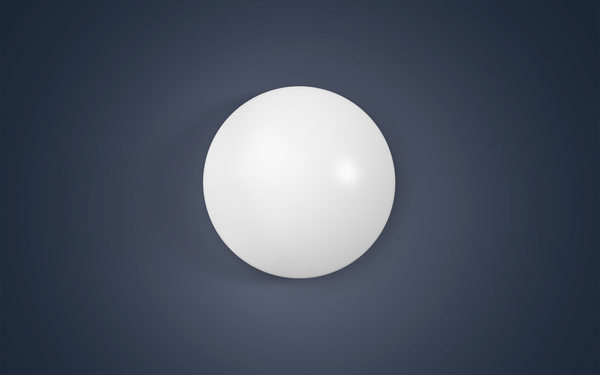

RUFO2 290 | Diameter 290 mm

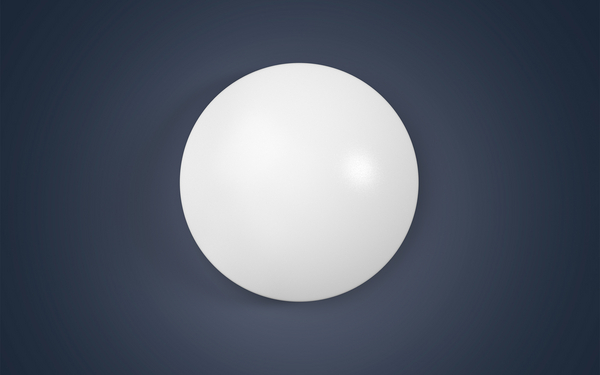

RUFO2 360 | Diameter 360 mm

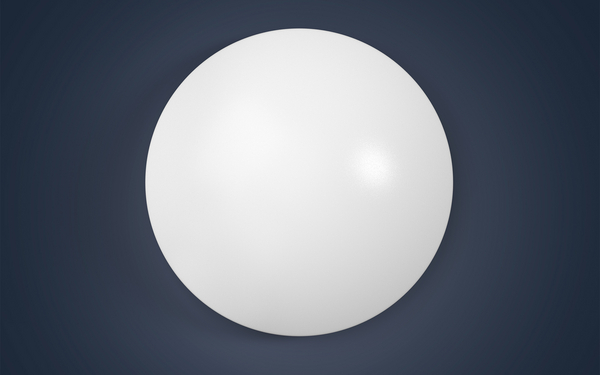

RUFO2 460 | Diameter 460 mm
RUFO2 Z 290 | Diameter 290 mm

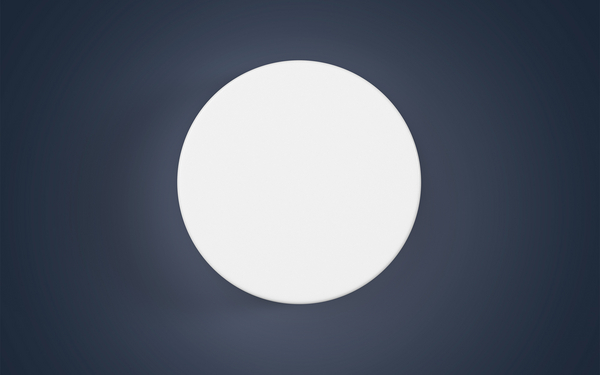

RUFO2 Z 360 | Diameter 360 mm

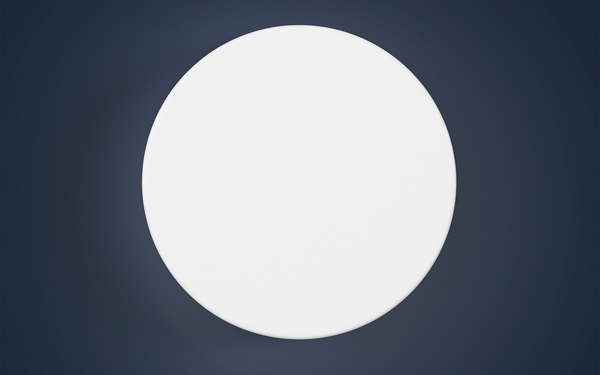

RUFO2 Z 460 | Diameter 460 mm
SIX VARIANTS
switchable (On/Off)
dimmable (DALI)
Emergency lighting version single battery (light duration 3 hours, self-test)
Available as standard in light colour 3000 or 4000 Kelvin
Sensor version
2-channel version with two LED drivers per luminaire (50/50)

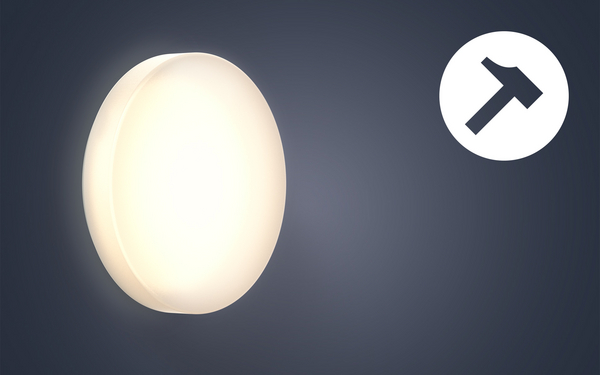

IMPACT RESISTANCE
RUFO2 | IK02 or IK10
RUFO2 Z | IK02 or IK07
Instead of using standard polycarbonate (PC), RIDI uses high-quality PMMA with impact resistance. This allows all the advantages that PMMA offers over PC to be utilised:
- Higher scratch resistance
- Higher UV resistance
- Higher chemical resistance
- More attractive light image
MOUNTING TYPE
Wall mounting

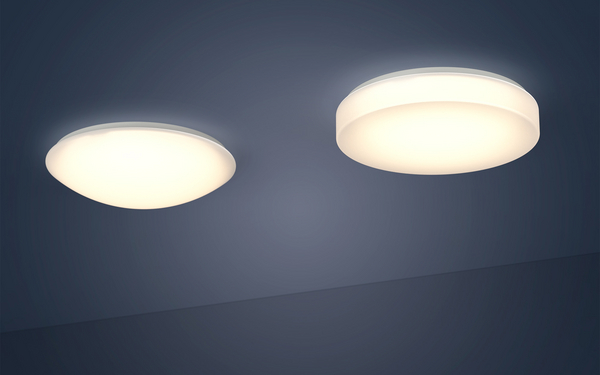

Ceiling mounting

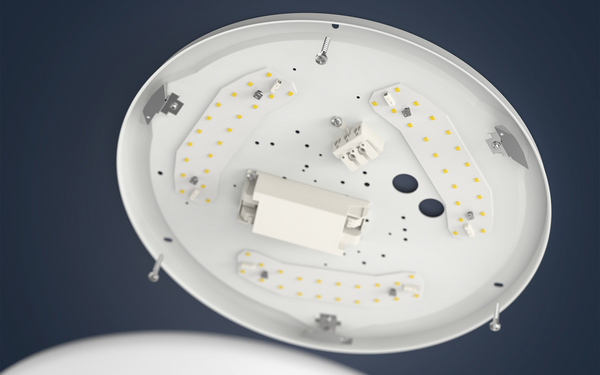

SIMPLE 1:1 REPLACEMENT OF EXISTING OLD RUFO LUMINAIRES
- Same drilling pattern
- Same feed points

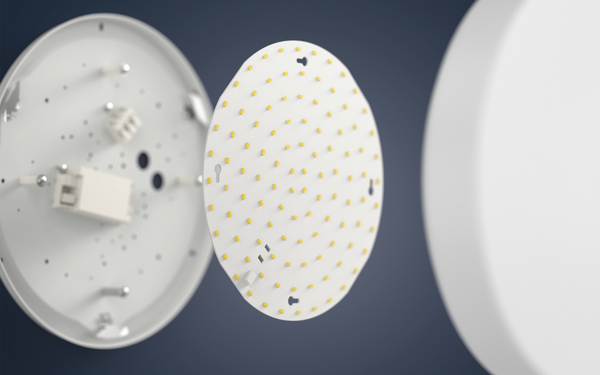

OUTSTANDING QUALITY
- LED modules from our own production
- Made in Zeuthen (Germany)
- Customised project adaptation possible
- Clean light image
- > 120 lm/W
RUFO ECO2 – THE ENTRY LEVEL FOR THE RUFO2 FAMILY
The RUFO ECO2 luminaires cover the basic range of the RUFO2 family and have an efficiency of more than 120 lm/W.
THREE SIZES
RUFO ECO2 290 | Diameter 290 mm
RUFO ECO2 360 | Diameter 360 mm
RUFO ECO2 460 | Diameter 460 mm
TWO VARIANTS
switchable (On/Off)
Sensor version (Master/Slave)
MULTIFUNCTIONALITY
switchable (xFlex) – adjustable luminous flux, 8-stage
adjustable light colour (multi-colour switch), 830 | 835 | 840
THE DIFFERENCES AT A GLANCE
RUFO2
- Diffuser shape: semi-circular and cylindrical
- Diffuser material: PMMA in IK02 or IK10 (semicircular) | IK02 or IK07 (cylindrical)
- Available in different light colours (not switchable)
- switchable (On/Off), dimmable (DALI), emergency lighting version EDS3, 2-channel version (two LED drivers per luminaire) or sensor
- Fixed luminous flux
RUFO ECO2
- Diffuser shape: semi-circular
- Diffuser material: PMMA in IK02
- Adjustable light colour (multi-colour switch) in 830 / 835 / 840
- switchable (on/off) or sensor version
- Adjustable luminous flux (xFlex): 8 power levels
