ALBA – ONE DESIGN, ONE FIT

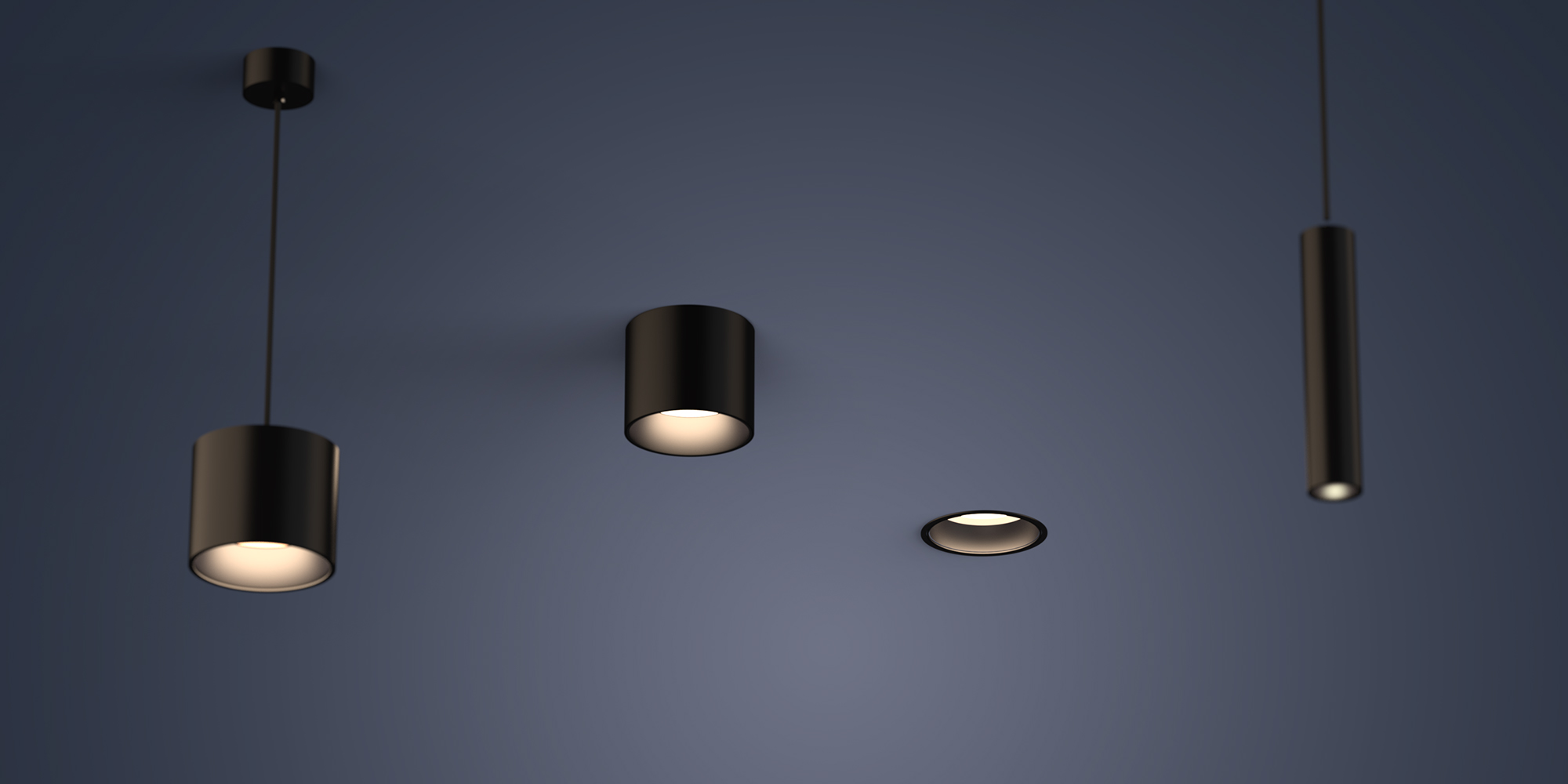

ALBA – a new, downlight series with self-confidence that leaves nothing to be desired in terms of flexibility, functionality and design. Whether altering room utilisation in existing buildings or for creative areas and lighting concepts in new buildings, ALBA can be used to create suitable lighting scenes that complement the architecture. The ALBA downlight impresses with its versatile variants - whether as a recessed or surface-mounted downlight or as an elegant pendant version with ceiling rose or track adapters - for flexible and stylish lighting solutions!

FIVE SIZES

ALBA R50… | Diameter: 50 mm

ALBA R68… | Diameter: 68 mm

ALBA R100… | Diameter: 100 mm

ALBA R150… | Diameter: 150 mm

ALBA R200… | Diameter: 200 mm
VARIANT INSTALLATION DIMENSIONS

ALBA R50E
Ceiling installation diameter DE: 50 mm
Outer diameter D: 54 mm
Installation depth H: 53 mm

ALBA R68E
Ceiling installation diameter DE: 68 mm
Outer diameter D: 72 mm
Installation depth H: 67 mm

ALBA R100E
Ceiling installation diameter DE: 100 mm
Outer diameter D: 112 mm
Installation depth H: 84 mm

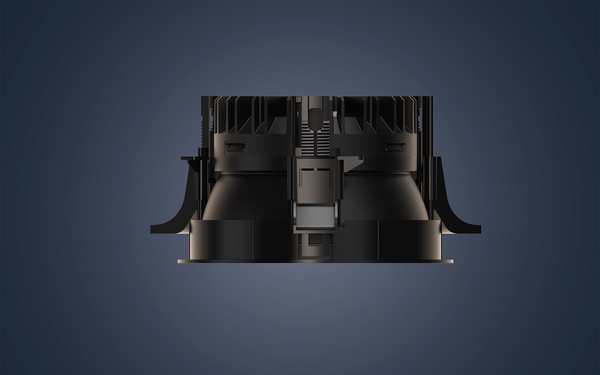

ALBA R150E
Ceiling installation diameter DE: 150 mm
Outer diameter D: 160 mm
Installation depth H: 95 mm

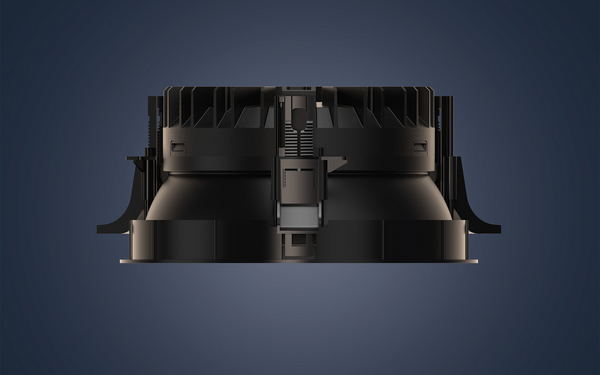

ALBA R200E
Ceiling installation diameter DE: 200 mm
Outer diameter D: 208 mm
Installation depth H: 101 mm
FOUR COLOUR VARIANTS

Black housing | Black reflector

White housing | Black reflector

White housing | White reflector

White housing | High-gloss reflector
FOUR LIGHT DISTRIBUTIONS
If specific lighting requirements are needed, ALBA employs special lenses for many options including the classic very wide beam light distribution with diffusing disc. Regardless of size and shape.

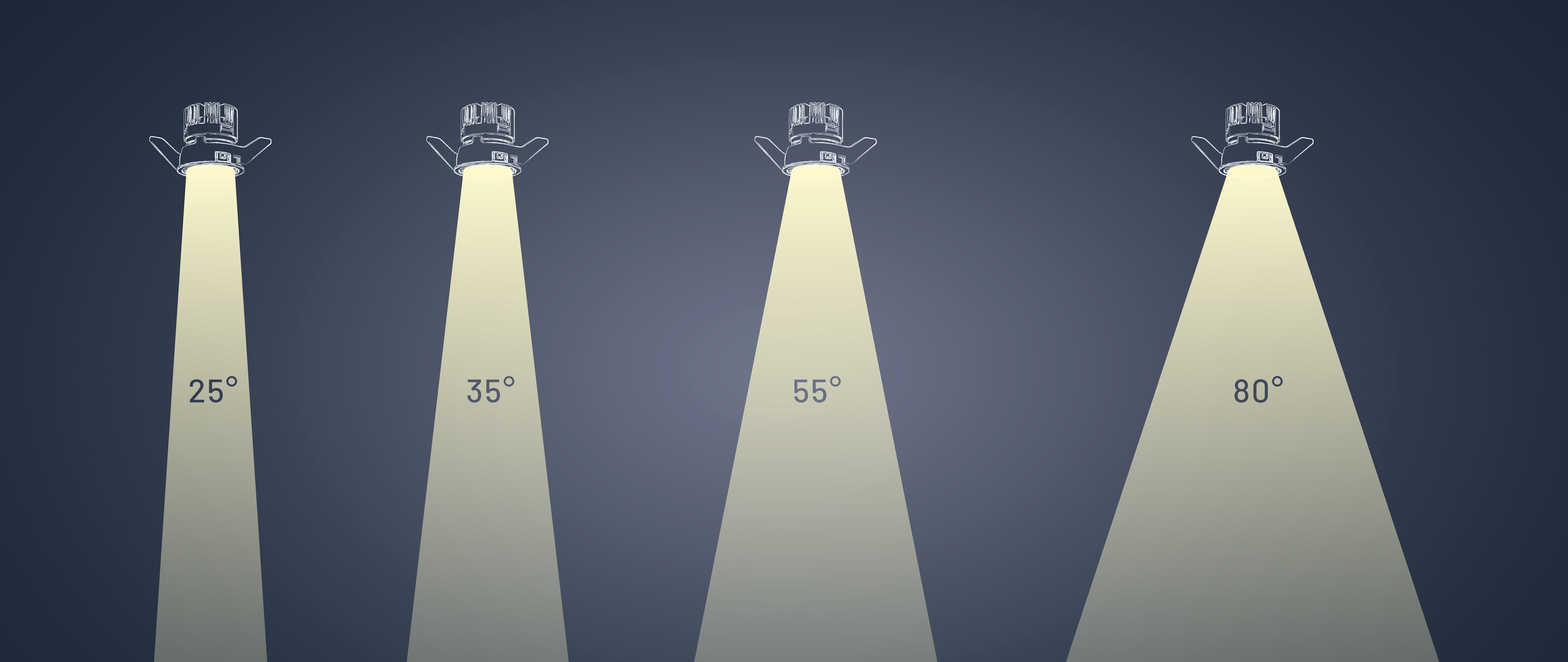

4 light distributions (Spot 25°, Medium 35°, Flood 55°, Super Flood 80°) for every application. Adjustable versions round off the portfolio.

TWO VARIANTS

switchable (On/Off)

dimmable (DALI)
Optional emergency lighting version with 3-hour light duration and maintained switching (EDS3).
FURTHER ADVANTAGES
LONG SERVICE LIFE

over 100,000 hours (L80B50 at 25 °C)
HIGH EFFICIENCY

up to 150 lm/W
OUTSTANDING LIGHTING TECHNOLOGY

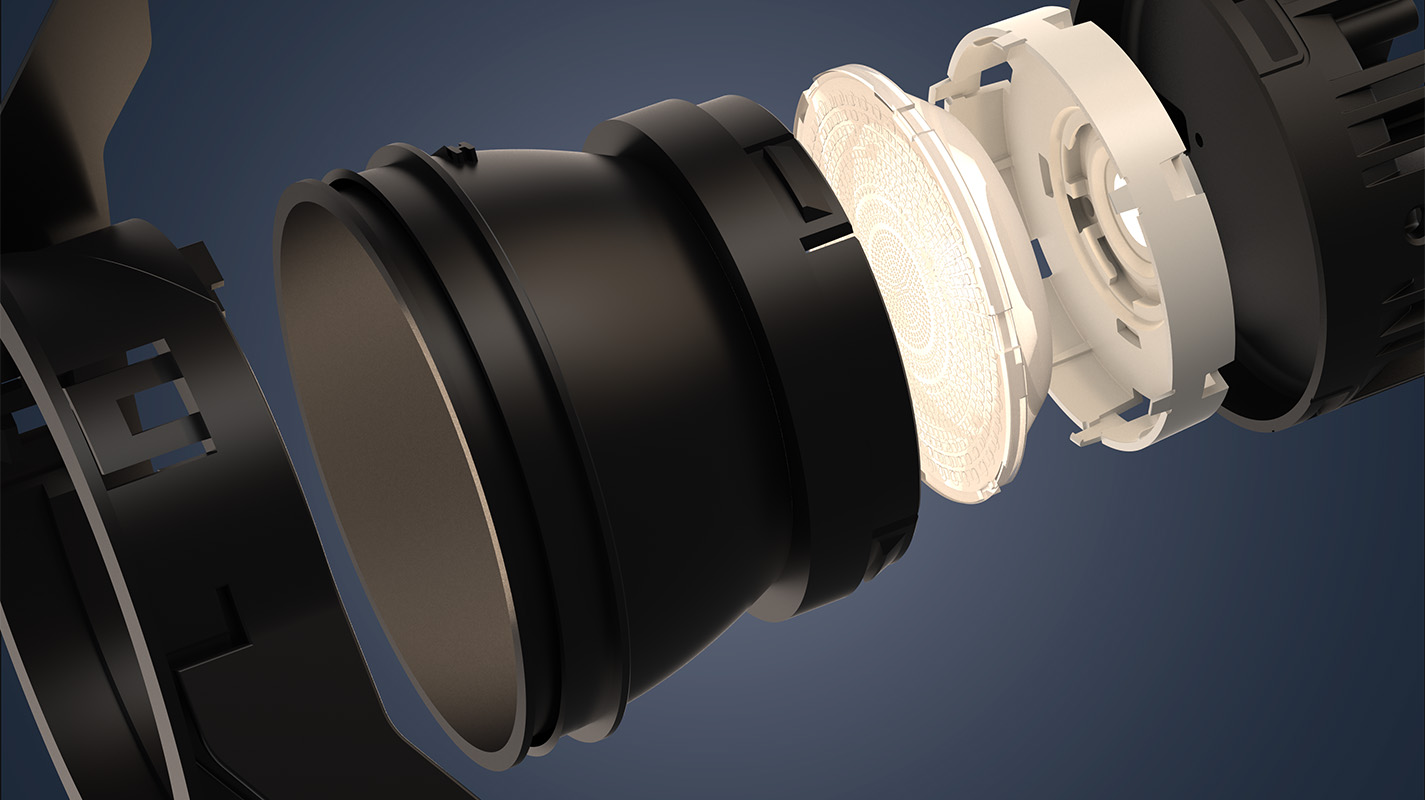

- Highly efficient light mixing chamber
- Precise lenses / diffuser disc for different beam angles
- Customised, deep reflector
KEYFACTS

- 5 diameters and particularly low-profile design
- 4 light distributions for many applications
- CRI <90
- Brilliant lighting comfort thanks to the unique light mixing chamber
- Available in 3 colours
- Adjustable versions
- Consistent, striking double ring design
- Ideal for new projects or refurbishment projects
Entrance areas

Offices

Meeting rooms

Recreation areas

Thoroughfare routes

Retail

SUSTAINABILITY
Sustainability with the ALBA luminaire family
- Plastic-free packaging
- Sustainable ‘Green-Switch’ module system
- Assemblies can be replaced by a specialist

ALBA WINS THE GERMAN DESIGN AWARD 2025

‘This downlight (light) impresses with its versatility and clear design language. It provides efficient ambient lighting that blends seamlessly into any room structure. With its intelligent lighting control and outstanding glare control, ‘ALBA’ sets new standards in lighting technology.’
Jury German Design Council
