VLDF-F149DAWS-470B830 / 0532517
Product Description
Light strip from the VLDF product family. Optical control via Cover longitudinal prismatic, beam pattern symmetric, extremely wide beam, light emission direct. Lamp LED-M installed, Replacement by specialist. The luminaire generates a rated luminous flux of 4350 lm in light colour 830, luminous flux adjustable: stepless. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Steel, white, protection rating IP20. Suitable for direct mounting on normally flammable materials. Simple, cost-effective one-man mounting with screws through the keyholes in the upper part of the luminaire or with flexible fixing spacing using fixing clips (accessories). Fixing kits are available for pendant mounting, see accessories. With electronic electrical component DALI. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
Order Information
| Item number | 0532517 |
| GTIN | 4029299465310 |
General
| Product category | Light strip |
| Range of application | Education | Office | Retail | Industry |

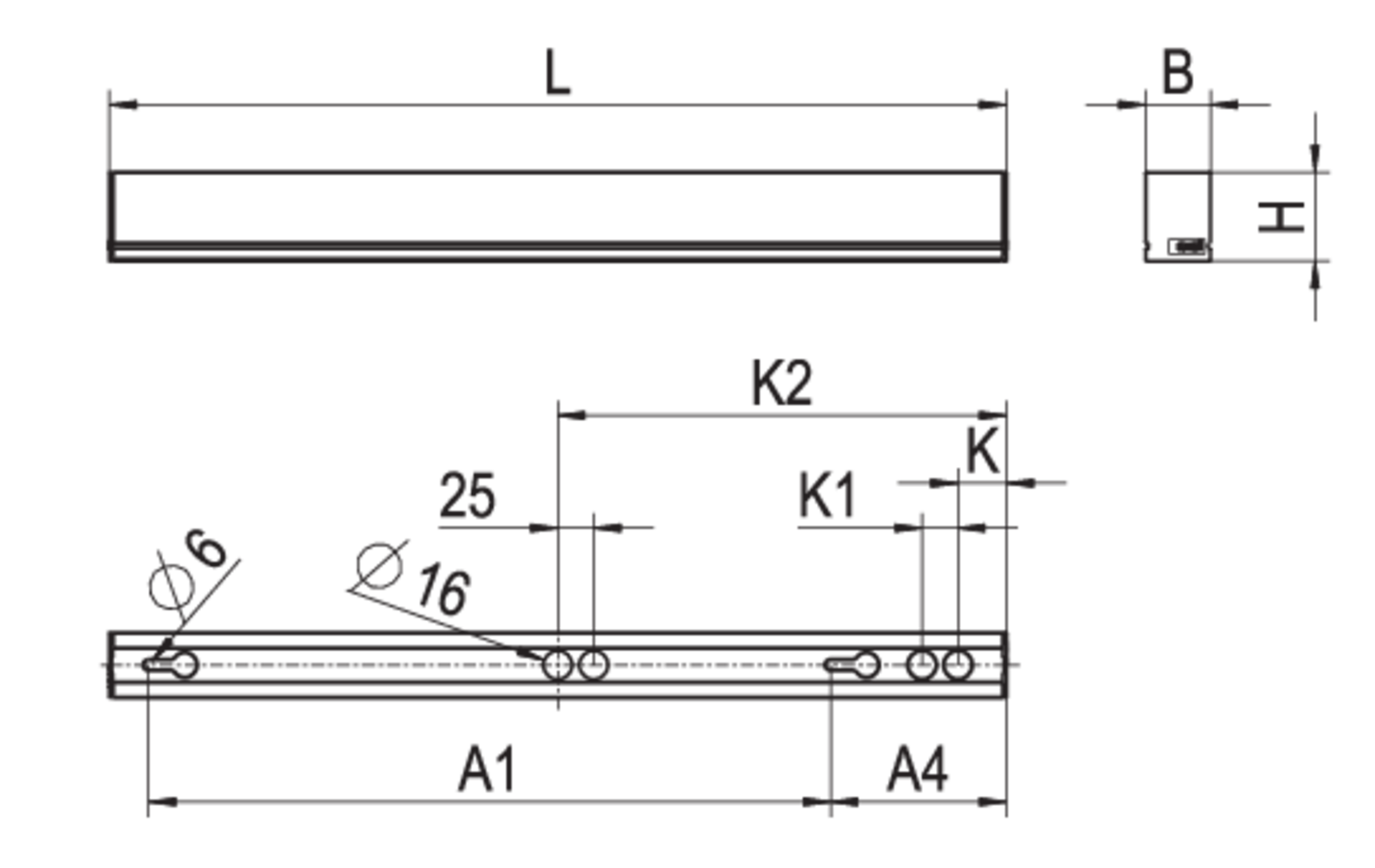

Dimensions
| Dimension L | 1488 mm |
| Dimension B | 36 mm |
| Dimension H | 50 mm |
| Dimension A1 | 1000 mm |
| Dimension A4 | 256 mm |
| Dimension K | 25 mm |
| Dimension K1 | 25 mm |
| Dimension K2 | 744 mm |
| Net weight | 1.9 kg |
Mounting
| Mounting type | Attachment |
Housing
| Colour | white |
| Farbe_Kurz | ws |
| Protection class | IP20 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -25–40 °C |
| Housing material | Steel |
| Cover material | PMMA clear |
Electrical version
| Type of control | DALI |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 31.0 W |
| Protection class | I |
Lighting technology
| Light guide | Cover longitudinal prismatic |
| Light output | direct |
| Light distribution | symmetric |
| Radiation pattern | wide beam |
| UGR class | > 25 |
| Rated luminous flux | 4350 lm |
| Luminaire efficiency | 140 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 3000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center
Approvals:
| Item number - Designation | Produktbeschreibung | Download | Wishlist |
0202597SI -
VLDHW-SI
|
Wall fixing for VLD, lengthw. adj., silver 1 pc |
|
|
|
0202597 -
VLDHW
|
Wall fixing for VLD, lengthw. adj, white, 1 pc |
|
|

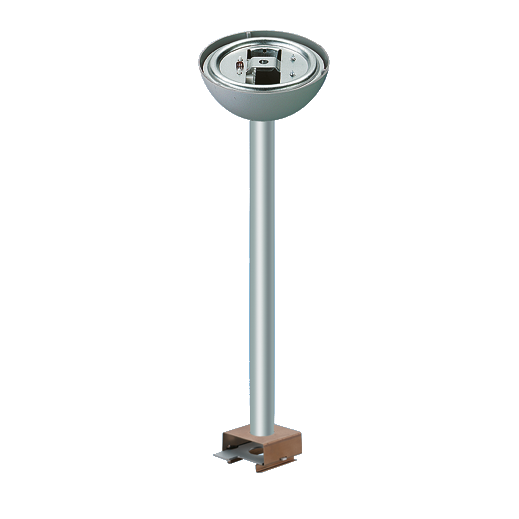

0202593SI -
VLDHP 050
|
Tube pendant VLF/VLDF/VLDGT w. canopy, 500mm, silver |
|
|

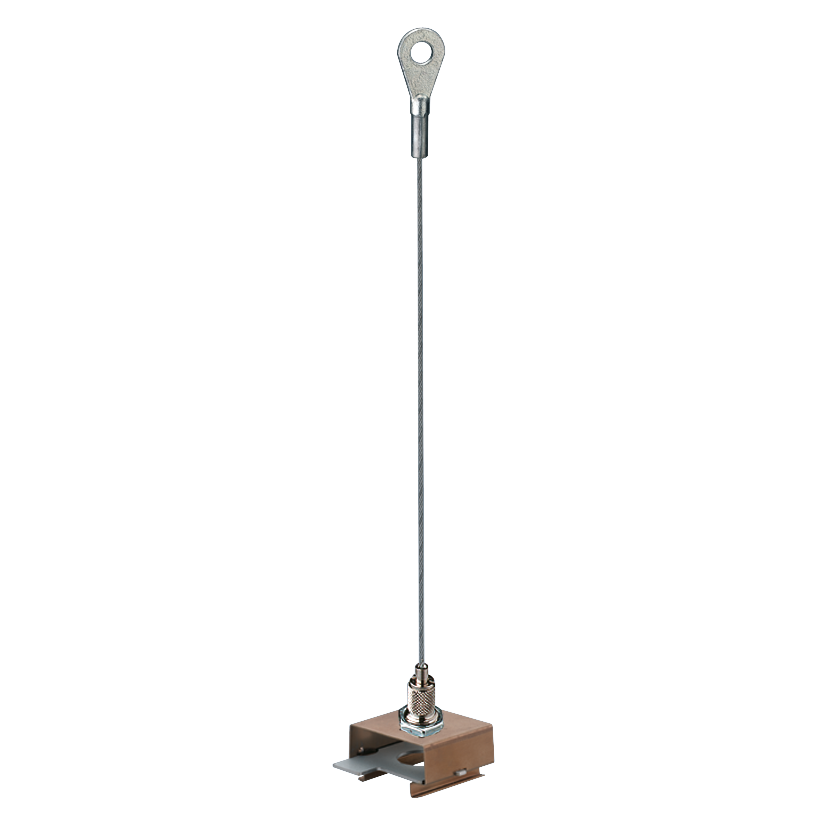

0202591 -
VLDHS
|
Wire pendant VLD w. ring loop, lengthw. adj. 1 pc |
|
|

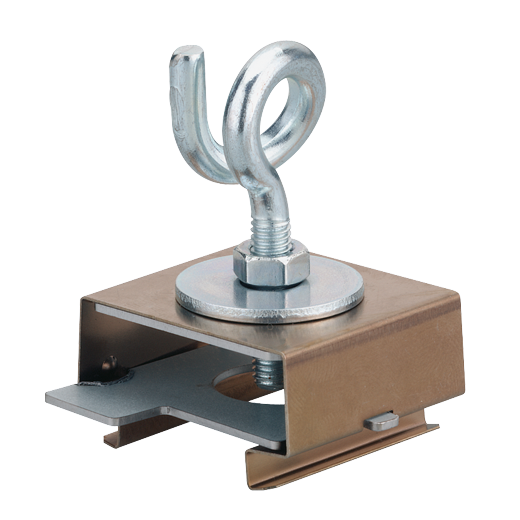

0202596 -
VLDHK
|
Chain fixing for VLD, lengthw. adjustment, 1 pc |
|
|
0202590 -
VLDHD
|
Ceiling mounting VLD, H=12.5mm, lengthwise adjustment, 1 pc |
|
|

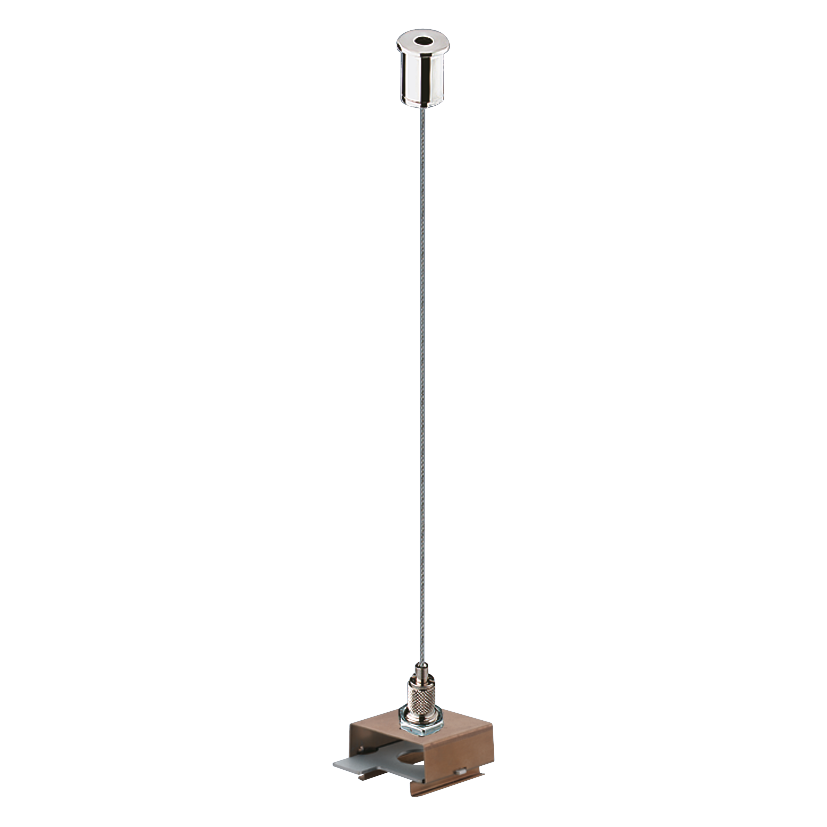

0202592 -
VLDHSD
|
Wire pendant VLD w. ceiling fixing, lengthw. adj. 1 pc |
|
|
Light strip from the VLDF product family. Optical control via Cover longitudinal prismatic, beam pattern symmetric, extremely wide beam, light emission direct. Lamp LED-M installed, Replacement by specialist. The luminaire generates a rated luminous flux of 4350 lm in light colour 830, luminous flux adjustable: stepless. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Steel, white, protection rating IP20. Suitable for direct mounting on normally flammable materials. Simple, cost-effective one-man mounting with screws through the keyholes in the upper part of the luminaire or with flexible fixing spacing using fixing clips (accessories). Fixing kits are available for pendant mounting, see accessories. With electronic electrical component DALI. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
Order Information
| Item number | 0532517 |
| GTIN | 4029299465310 |
General
| Product category | Light strip |
| Range of application | Education | Office | Retail | Industry |
Dimensions
| Dimension L | 1488 mm |
| Dimension B | 36 mm |
| Dimension H | 50 mm |
| Dimension A1 | 1000 mm |
| Dimension A4 | 256 mm |
| Dimension K | 25 mm |
| Dimension K1 | 25 mm |
| Dimension K2 | 744 mm |
| Net weight | 1.9 kg |
Mounting
| Mounting type | Attachment |
Housing
| Colour | white |
| Farbe_Kurz | ws |
| Protection class | IP20 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -25–40 °C |
| Housing material | Steel |
| Cover material | PMMA clear |
Electrical version
| Type of control | DALI |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 31.0 W |
| Protection class | I |
Lighting technology
| Light guide | Cover longitudinal prismatic |
| Light output | direct |
| Light distribution | symmetric |
| Radiation pattern | wide beam |
| UGR class | > 25 |
| Rated luminous flux | 4350 lm |
| Luminaire efficiency | 140 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 3000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center

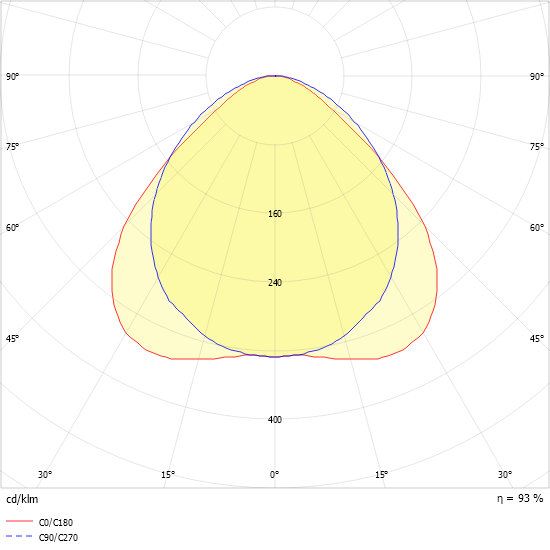

Light distribution curve
