VENICE-G-F249-DAWS-960B830 / 0536120


Product Description
Gear tray from the VENICE product family. Optical control via Cover longitudinal prismatic, beam pattern symmetric, extremely wide beam, light emission direct. Lamp LED-M installed, . The luminaire generates a rated luminous flux of 8840 lm in light colour 830, luminous flux adjustable: stepless. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Aluminium, traffic white, similar to RAL 9016, protection rating IP20. Toolless by means of a spring clip in the aluminium profile, independently earthed for electrical safety. With electronic electrical component DALI. Replacement by specialist. Rated voltage 230 - 240 V AC/DC 50 - 60 Hz.
Order Information
Item number | 0536120 |
GTIN | 4029299489309 |
General
Product category | Gear tray |
Range of application | Education | Office | Retail |
Dimensions
Dimension L | 1483 mm |
Dimension B | 58 mm |
Dimension H | 78 mm |
Net weight | 1.788 kg |

Mounting
Mounting type | Attachment | Installation | Pendant |
Number of poles | 7 |
Housing
Colour | traffic white, similar to RAL 9016 |
Protection class | IP20 |
Glow-wire test | 650 °C |
Permissible ambient temperature | -25–25 °C |
Housing material | Aluminium |
Cover material | PMMA clear |
Electrical version
Type of control | DALI |
Nominal voltage | 230–240 V, 0/50–60 Hz |
Rated power | 62.0 W |
Protection class | I |
Lighting technology
Light distributor | Cover longitudinal prismatic |
Light emission | direct |
Light distribution | symmetric |
Beam characteristics | wide beam |
UGR class | > 25 |
Rated luminous flux | 8840 lm |
Luminaire efficiency | 143 lm/W |

Light source
Lamp | LED-M |
Lamp included | Yes |
Colour rendering index Ra | ≥ 80 |
Colour temperature | 3000 K |
Colour location tolerance (SDCM) | < 3 SDCM |
Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center





Approvals:
Item number - Designation | Produktbeschreibung | Download | Wishlist |
![]() |
X-sh. lum. connector for VENICE-E, 5-pin anodised, 1 pc |
|
|
![]() |
X-sh. lum. connector for VENICE-E, 7-pin, anodised, 1 pc |
|
|
![]() |
T-sh. lum. connector for VENICE-E, 5-pin, anodised, 1 pc |
|
|
![]() |
T-sh. lum. connector for VENICE-E, 7-pin, anodised, 1 pc |
|
|
![]() |
L-sh. lum. connector for VENICE-E, 5-pin, anodised, 1 pc |
|
|
![]() |
L-sh. lum. connector for VENICE-E, 7-pin, anodised, 1 pc |
|
|
![]() |
End cap for VENICE-E, natural anodized, 1 pc |
|
|
0208821 - VENICE-GE-LED | Gear tray release VENICE-A-F and VENICE-E-F |
|
|
![]() |
L-sh. lum. connector for VENICE-A, 5-pin anodised, 1 pc |
|
|
![]() |
L-sh. lum. connector for VENICE-A, 7-pin, anodised, 1 pc |
|
|
![]() |
X-sh. lum. connector for VENICE-A, 5-pin, anodised, 1 pc |
|
|
![]() |
Wire pendant with rect. canopy, silver, 1.5m, 1pc |
|
|
![]() |
Connection cable transparent, 3x 0.75 mm², 1.5 m |
|
|
![]() |
Connection cable transparent, 3x 1.5 mm², 1.5 m |
|
|
![]() |
Connection cable transparent, 5x 1.5 mm², 1.5 m |
|
|
![]() |
Wire pendant VLD w. ceiling fixing, lengthw. adj. 1 pc |
|
|
![]() |
Wire pendant VLD w. ring loop, lengthw. adj. 1 pc |
|
|
![]() |
x-sh. lum.connector for VENICE-A, 7-pin, anodised, 1 pc. |
|
|
![]() |
Chain fixing for VLD, lengthw. adjustment, 1 pc |
|
|
![]() |
Ceiling mounting VLD, H=12.5mm, lengthwise adjustment, 1 pc |
|
|
![]() |
Wall fixing for VLD, lengthw. adj, white, 1 pc |
|
|
![]() |
Wire pendant w. ceiling fixing and wire clamp, 1.5m, 1 pc |
|
|
![]() |
Mains connector 7-core, stranded IP20/54, 1 pc |
|
|
![]() |
Mains connector 5-core, stranded IP20/54, 1 pc |
|
|
![]() |
Mains connector 11-core, stranded IP20/54, 1 pc |
|
|
![]() |
T-sh. lum. connector for VENICE-A, 7-pin, anodised, 1 pc |
|
|
![]() |
Tool for easy opening of the light frame |
|
|
![]() |
End cap for VENICE-A, natural anodized, 1 pc |
|
|
![]() |
Recessed ceiling mounting kit for VENICE-A, 1 pc |
|
|
![]() |
Canopy, angular, white, for wire pendant mounting Y-wire pendant, ZUSP and UKNS |
|
|
![]() |
Rect. canopy silver, for Y wire pendant, ZUSP and UKNS |
|
|
1208051 - VENICE-A/E BET 135/49/80 | Concrete casting b. VENICE-A/E .80 plaster/concrete ceilings |
|
|
1208050 - VENICE-A/E BET 128/54 | Concrete casting b. VENICE-A/E .54 plaster/concrete ceilings |
|
|
![]() |
T-sh. lum. connector for VENICE-A, 5-pin anodised, 1 pc |
|
|
![]() |
Trunking connector for 7-pin wiring, 1 pc. |
|
|
![]() |
Trunking connector for 5-pin wiring, 1 pc |
|
|
![]() |
Mains connector 11-core, single wire IP20/54, 1 pc |
|
|
![]() |
Mains connector 5-core, single wire IP20/54, 1 pc |
|
|
![]() |
Mains connector 7-core, single wire IP20/54, 1 pc |
|
|


Gear tray from the VENICE product family. Optical control via Cover longitudinal prismatic, beam pattern symmetric, extremely wide beam, light emission direct. Lamp LED-M installed, . The luminaire generates a rated luminous flux of 8840 lm in light colour 830, luminous flux adjustable: stepless. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Aluminium, traffic white, similar to RAL 9016, protection rating IP20. Toolless by means of a spring clip in the aluminium profile, independently earthed for electrical safety. With electronic electrical component DALI. Replacement by specialist. Rated voltage 230 - 240 V AC/DC 50 - 60 Hz.
Order Information
Item number | 0536120 |
GTIN | 4029299489309 |
General
Product category | Gear tray |
Range of application | Education | Office | Retail |
Dimensions
Dimension L | 1483 mm |
Dimension B | 58 mm |
Dimension H | 78 mm |
Net weight | 1.788 kg |

Mounting
Mounting type | Attachment | Installation | Pendant |
Number of poles | 7 |
Housing
Colour | traffic white, similar to RAL 9016 |
Protection class | IP20 |
Glow-wire test | 650 °C |
Permissible ambient temperature | -25–25 °C |
Housing material | Aluminium |
Cover material | PMMA clear |
Electrical version
Type of control | DALI |
Nominal voltage | 230–240 V, 0/50–60 Hz |
Rated power | 62.0 W |
Protection class | I |
Lighting technology
Light distributor | Cover longitudinal prismatic |
Light emission | direct |
Light distribution | symmetric |
Beam characteristics | wide beam |
UGR class | > 25 |
Rated luminous flux | 8840 lm |
Luminaire efficiency | 143 lm/W |

Light source
Lamp | LED-M |
Lamp included | Yes |
Colour rendering index Ra | ≥ 80 |
Colour temperature | 3000 K |
Colour location tolerance (SDCM) | < 3 SDCM |
Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center

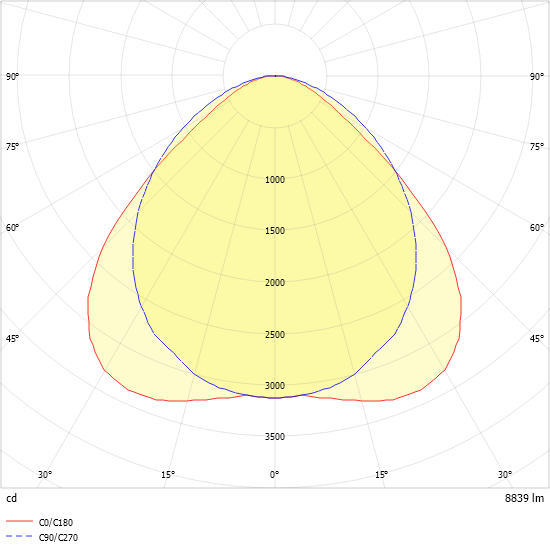

Light distribution curve
