SURVIVOR160NDWS840MPO0550-DB / 6068057
Product Description
Ceiling light from the SURVIVOR product family. Optical control via Diffuser, beam pattern symmetric, wide beam, light emission direct. Lamp LED-M installed, Replacement by specialist. The luminaire generates a rated luminous flux of 5400 lm in light colour 840, luminous flux adjustable: in steps. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Aluminium, traffic white, similar to RAL 9016, protection rating IP65. Ceiling and wall mounting without additional accessories. Corner mounting with corresponding accessory kit (see accessories). Cable entry at the front. With electronic electrical component xFlex. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
Order Information
Item number | 6068057 |
GTIN | 4029299127218 |
General
Product category | Ceiling light |
Range of application | Industry | Traffic routes |
Guarantee | 5 years |
Dimensions
Dimension L | 1600 mm |
Dimension B | 240 mm |
Dimension H | 73 mm |
Net weight | 13.200 kg |
Mounting
Mounting type | Attachment |
Mounting position | Ceiling |
Connection type | plug-in terminal |
Number of poles | 2 |
Conductor cross-section | 0.5–2.5 mm² |
Housing
Colour | traffic white, similar to RAL 9016 |
Farbe_Kurz | ws |
Protection class | IP65 |
Impact resistance | IK11+ 100 J |
Glow-wire test | 650 °C |
Permissible ambient temperature | -20–25 °C |
Housing material | Aluminium |
Surface treatment of housing | powder-coated |
Cover material | PC opal |
Electrical version
Type of control | xFlex |
Nominal voltage | 220–240 V, 0/50–60 Hz |
Rated power | 43.0 W |
Protection class | II |
Overvoltage protection | 10 kV |
Lighting technology
Light guide | Diffuser |
Light output | direct |
Light distribution | symmetric |

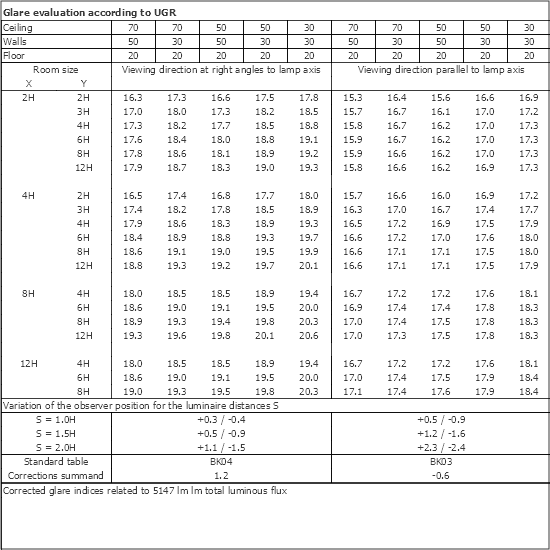

UGR class | ≤ 19 |
Rated luminous flux | 5400 lm |
Luminaire efficiency | 126 lm/W |
Light source
Lamp | LED-M |
Lamp included | Yes |
Colour rendering index Ra | ≥ 80 |
Colour temperature | 4000 K |
Colour location tolerance (SDCM) | < 3 SDCM |
Photobiological safety | RG1 |
Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center
Approvals:
Item number - Designation | Produktbeschreibung | Download | Wishlist |
0209337 - SURVIVOR BLIND-E45WFH100WS | Dummy cover + 45° wall bracket, hor. 90° corner, 1.0x1.0 m, white |
|
|
0209333 - SURVIVOR BLIND-TP25WFH100WS | Dummy cover + TP (h = 27 mm), hor. 90° corner, 1.0x1.0 m, white |
|
|
0209334 - SURVIVOR BLIND-TP25WFV100WS | Dummy cover + TP (h = 27 mm), vt. 90° corner, 1.0x1.0 m, white |
|
|
0209246 - SURVIVOR BLIND-TP60WFH100WS | Dummy cover + TP (h = 60 mm), hor. 90° corner, 1.0x1.0 m, white |
|
|
0209332 - SURVIVOR BLIND-TP60WFV100WS | Dummy cover + TP (h = 60 mm), vt. 90° corner, 1.0x1.0 m, white |
|
|
0209238 - SURVIVOR BLIND-069WS | Dummy cover, 0.69 m, white |
|
|
0209239 - SURVIVOR BLIND-130WS | Dummy cover, 1.3 m, white |
|
|
0209240 - SURVIVOR BLIND-160WS | Dummy cover, 1.6 m, white |
|
|
0209335 - SURVIVOR BLIND-WFH100WS | Dummy cover, hor. 90° corner, 1.0x1.0 m, white |
|
|
0209336 - SURVIVOR BLIND-WFV100WS | Dummy cover, vt. 90° corner, 1.0x1.0 m, white |
|
|
0209243 - SURVIVOR BLIND-EPWS | End plate for dummy cover, white, 1 piece |
|
|
0209256 - SURVIVOR EM-EPWS | End plate for dummy lamp, 45° corner mounting, white, 1 piece |
|
|
0209340 - SURVIVOR TP25-EPWS | End plate for media support profile (h = 27 mm), white, 1 piece |
|
|
0209236 - SURVIVOR TP60-EPWS | End plate for media support profile (h = 60 mm), white, 1 piece |
|
|
0209326 - SURVIVOR TP25-100WS | Media support profile (TP) (h = 27mm), 1.0 m, white |
|
|
0209286 - SURVIVOR TP25-490WS | Media support profile (TP) (h = 27mm), 4.9 m, white |
|
|
0209325 - SURVIVOR TP60-100WS | Media support profile (TP) (h = 60 mm), 1.0 m, white |
|
|
0209237 - SURVIVOR TP60-490WS | Media support profile (TP) (h = 60 mm), 4.9 m, white |
|
|
0209330 - ZRP-PR16X3-060WS | Pendant tube 16x3, M16 male thread connection, 0.6 m, white, 1 piece |
|
|
0209329 - ZRP-PR16X3-100WS | Pendant tube 16x3, M16 male thread connection, 1.0 m, white, 1 piece |
|
|
0209331 - ZRP-PRH16 | Pendant tube holder, V2A, 1 piece |
|
|
0209339 - SURVIVOR PMH-TP25/TP60 WS | Pendulum multi holder media support profiles, white, 1 piece |
|
|
0209338 - SURVIVOR PR-GS | Sliding slide for TP, M16 female thread connection, V2A, 1 piece |
|
|
0209231 - SURVIVOR TP25/60-LV | Straight connector for media support profiles, V2A, 1 piece |
|
|
0209244 - SURVIVOR EM-HWB | Wall bracket (45°), double for joint, V2A, 1 piece |
|
|
0209257 - SURVIVOR EM-HWE | Wall bracket (45°), easier for termination, V2A, 1 piece |
|
|
Ceiling light from the SURVIVOR product family. Optical control via Diffuser, beam pattern symmetric, wide beam, light emission direct. Lamp LED-M installed, Replacement by specialist. The luminaire generates a rated luminous flux of 5400 lm in light colour 840, luminous flux adjustable: in steps. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Aluminium, traffic white, similar to RAL 9016, protection rating IP65. Ceiling and wall mounting without additional accessories. Corner mounting with corresponding accessory kit (see accessories). Cable entry at the front. With electronic electrical component xFlex. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
Order Information
Item number | 6068057 |
GTIN | 4029299127218 |
General
Product category | Ceiling light |
Range of application | Industry | Traffic routes |
Guarantee | 5 years |
Dimensions
Dimension L | 1600 mm |
Dimension B | 240 mm |
Dimension H | 73 mm |
Net weight | 13.200 kg |
Mounting
Mounting type | Attachment |
Mounting position | Ceiling |
Connection type | plug-in terminal |
Number of poles | 2 |
Conductor cross-section | 0.5–2.5 mm² |
Housing
Colour | traffic white, similar to RAL 9016 |
Farbe_Kurz | ws |
Protection class | IP65 |
Impact resistance | IK11+ 100 J |
Glow-wire test | 650 °C |
Permissible ambient temperature | -20–25 °C |
Housing material | Aluminium |
Surface treatment of housing | powder-coated |
Cover material | PC opal |
Electrical version
Type of control | xFlex |
Nominal voltage | 220–240 V, 0/50–60 Hz |
Rated power | 43.0 W |
Protection class | II |
Overvoltage protection | 10 kV |
Lighting technology
Light guide | Diffuser |
Light output | direct |
Light distribution | symmetric |
UGR class | ≤ 19 |
Rated luminous flux | 5400 lm |
Luminaire efficiency | 126 lm/W |
Light source
Lamp | LED-M |
Lamp included | Yes |
Colour rendering index Ra | ≥ 80 |
Colour temperature | 4000 K |
Colour location tolerance (SDCM) | < 3 SDCM |
Photobiological safety | RG1 |
Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center

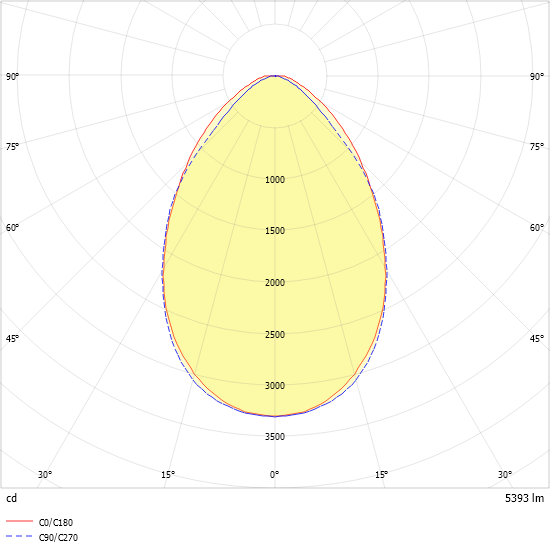

Light distribution curve
