STORA-LK-I D1200/830 OS / SPC0620054
Product Description
Pendant luminaire from the STORA-LK product family. Optical control via Opal cover, beam pattern symmetric, extremely wide beam, light emission direct/indirect. Lamp LED-M installed, Replacement by specialist. The luminaire generates a rated luminous flux of 13920 lm in light colour 830, luminous flux adjustable: No. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Aluminium, traffic white, similar to RAL 9016, protection rating IP20. With electronic electrical component On/Off. Replacement by specialist. Rated voltage 230 - 240 V AC/DC 50 - 60 Hz.
Order Information
| Item number | SPC0620054 |
| GTIN | 4029299512625 |
General
| Product category | Pendant luminaire |
| Range of application | Education | Office | Retail |
| Guarantee | 5 years |
Dimensions
| Dimension H | 100 mm |
| Dimension D | 1200 mm |
| Net weight | 16.500 kg |
Mounting
| Mounting type | Pendant |
| Connection type | plug-in terminal |
| Number of poles | 3 |
| Conductor cross-section | 0.5–2.5 mm² |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP20 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -20–25 °C |
| Housing material | Aluminium |
| Surface treatment of housing | |
| Cover material | PMMA opal |
Electrical version
| Type of control | On/Off |
| Nominal voltage | 230–240 V, 0/50–60 Hz |
| Rated power | 127.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Opal cover |
| Light emission | direct/indirect |
| Light distribution | symmetric |
| Beam characteristics | extremely wide beam |
| UGR class | ≤ 16 |
| Rated luminous flux | 13920 lm |
| Luminaire efficiency | 110 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 3000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center
Approvals:
Pendant luminaire from the STORA-LK product family. Optical control via Opal cover, beam pattern symmetric, extremely wide beam, light emission direct/indirect. Lamp LED-M installed, Replacement by specialist. The luminaire generates a rated luminous flux of 13920 lm in light colour 830, luminous flux adjustable: No. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Aluminium, traffic white, similar to RAL 9016, protection rating IP20. With electronic electrical component On/Off. Replacement by specialist. Rated voltage 230 - 240 V AC/DC 50 - 60 Hz.
Order Information
| Item number | SPC0620054 |
| GTIN | 4029299512625 |
General
| Product category | Pendant luminaire |
| Range of application | Education | Office | Retail |
| Guarantee | 5 years |
Dimensions
| Dimension H | 100 mm |
| Dimension D | 1200 mm |
| Net weight | 16.500 kg |
Mounting
| Mounting type | Pendant |
| Connection type | plug-in terminal |
| Number of poles | 3 |
| Conductor cross-section | 0.5–2.5 mm² |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP20 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -20–25 °C |
| Housing material | Aluminium |
| Cover material | PMMA opal |
Electrical version
| Type of control | On/Off |
| Nominal voltage | 230–240 V, 0/50–60 Hz |
| Rated power | 127.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Opal cover |
| Light emission | direct/indirect |
| Light distribution | symmetric |
| Beam characteristics | extremely wide beam |
| UGR class | ≤ 16 |
| Rated luminous flux | 13920 lm |
| Luminaire efficiency | 110 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 3000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center

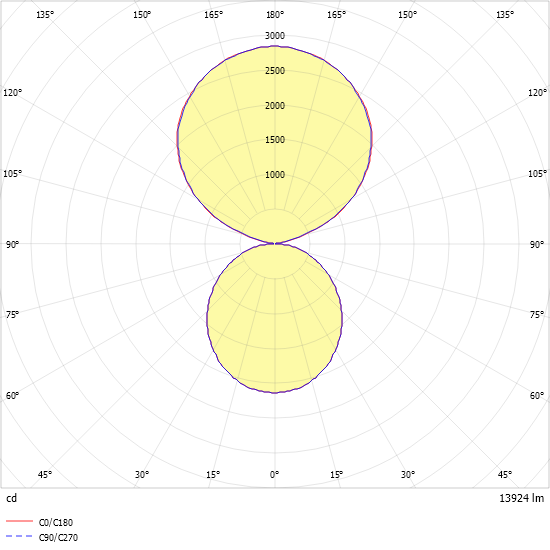

Light distribution curve
Approvals:
