SPN-R1X085/25ND-SET / 0450045//676
Product Description
Wall light from the SPN product family. Optical control via Opal cover, beam pattern symmetric, extremely wide beam, light emission direct. Lamp R-TUBE installed, Exchange by end customer. The luminaire generates a rated luminous flux of 2320 lm in light colour 840, luminous flux adjustable: No. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Aluminium, white, protection rating IP40. Direct ceiling or wall mounting without additional accessories. With electronic electrical component On/Off. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
Order Information
| Item number | 0450045//676 |
| GTIN | 4029299464078 |
General
| Product category | Wall light |
| Range of application | Education | Office | Industry |
Dimensions
| Dimension L | 960 mm |
| Dimension B | 67 mm |
| Dimension H | 97 mm |
| Net weight | 2 kg |
Mounting
| Mounting type | Attachment |
| Mounting position | Wall |
Housing
| Colour | white |
| Farbe_Kurz | ws |
| Protection class | IP40 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -20–25 °C |
| Housing material | Aluminium |
| Cover material | PMMA opal |
Electrical version
| Type of control | On/Off |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 21.0 W |
| Protection class | I |
Lighting technology
| Light guide | Opal cover |
| Light output | direct |
| Light distribution | symmetric |
| Radiation pattern | extremely wide beam |
| UGR class | ≤ 25 |
| Rated luminous flux | 2320 lm |
| Luminaire efficiency | 110 lm/W |
Light source
| Lamp | R-TUBE |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
Download Center
Approvals:
| Item number - Bezeichnung | Length | Colour temperature | Characteristic | ||
| 1206604LD - R-TUBE-G2 085-840M0300 LD | 849 | 4000 K | matt |
|
|
Wall light from the SPN product family. Optical control via Opal cover, beam pattern symmetric, extremely wide beam, light emission direct. Lamp R-TUBE installed, Exchange by end customer. The luminaire generates a rated luminous flux of 2320 lm in light colour 840, luminous flux adjustable: No. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Aluminium, white, protection rating IP40. Direct ceiling or wall mounting without additional accessories. With electronic electrical component On/Off. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
Order Information
| Item number | 0450045//676 |
| GTIN | 4029299464078 |
General
| Product category | Wall light |
| Range of application | Education | Office | Industry |
Dimensions
| Dimension L | 960 mm |
| Dimension B | 67 mm |
| Dimension H | 97 mm |
| Net weight | 2 kg |
Mounting
| Mounting type | Attachment |
| Mounting position | Wall |
Housing
| Colour | white |
| Farbe_Kurz | ws |
| Protection class | IP40 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -20–25 °C |
| Housing material | Aluminium |
| Cover material | PMMA opal |
Electrical version
| Type of control | On/Off |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 21.0 W |
| Protection class | I |
Lighting technology
| Light guide | Opal cover |
| Light output | direct |
| Light distribution | symmetric |
| Radiation pattern | extremely wide beam |
| UGR class | ≤ 25 |
| Rated luminous flux | 2320 lm |
| Luminaire efficiency | 110 lm/W |
Light source
| Lamp | R-TUBE |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
Download Center

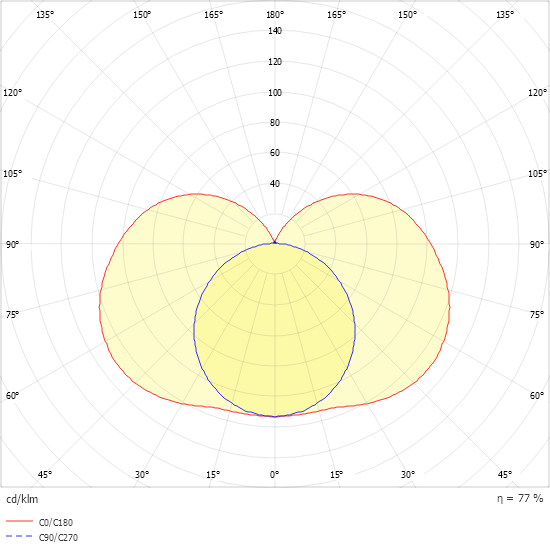

Light distribution curve
