SPADA-LED 13000-840 MPS-SEN-SI / 0627498SI370
Product Description
Free-standing luminaires from the SPADA product family. Optical control via Cover microprismatic, beam pattern symmetric, wide beam, light emission direct/indirect. Lamp LED-M installed, Replacement by specialist. The luminaire generates a rated luminous flux of 11470 lm in light colour 840, luminous flux adjustable: stepless. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of , silver, protection rating IP20. With electronic electrical component DALI. Replacement by specialist. Rated voltage 220 - 240 V AC 50 - 60 Hz.
Order Information
| Item number | 0627498SI370 |
| GTIN | 4029299511161 |
General
| Product category | Free-standing luminaires |
| Range of application | Office |
Dimensions
| Dimension L | 680 mm |
| Dimension B | 300 mm |
| Dimension H | 1950 mm |
| Net weight | 16.600 kg |
Mounting
| Mounting type | Standing |
| Mounting position | Floor |
Housing
| Colour | silver |
| Protection class | IP20 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | 0–50 °C |
Electrical version
| Type of control | DALI |
| Nominal voltage | 220–240 V, 50–60 Hz |
| Rated power | 86.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Cover microprismatic |
| Light emission | direct/indirect |
| Light distribution | symmetric |
| Beam characteristics | wide beam |

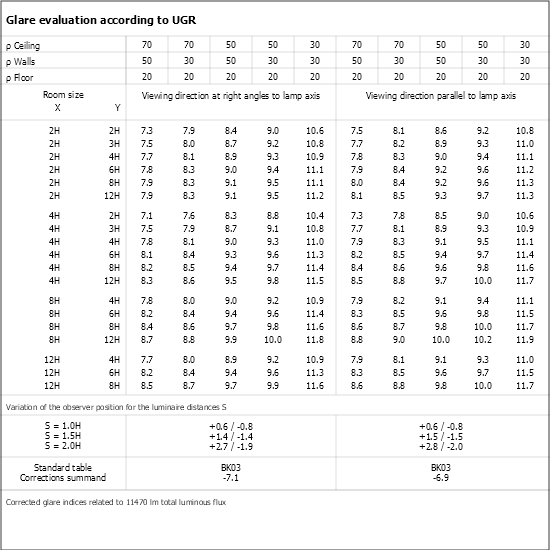

| UGR class | ≤ 16 |
| Rated luminous flux | 11470 lm |
| Luminaire efficiency | 133 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center
Approvals:
Free-standing luminaires from the SPADA product family. Optical control via Cover microprismatic, beam pattern symmetric, wide beam, light emission direct/indirect. Lamp LED-M installed, Replacement by specialist. The luminaire generates a rated luminous flux of 11470 lm in light colour 840, luminous flux adjustable: stepless. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of , silver, protection rating IP20. With electronic electrical component DALI. Replacement by specialist. Rated voltage 220 - 240 V AC 50 - 60 Hz.
Order Information
| Item number | 0627498SI370 |
| GTIN | 4029299511161 |
General
| Product category | Free-standing luminaires |
| Range of application | Office |
Dimensions
| Dimension L | 680 mm |
| Dimension B | 300 mm |
| Dimension H | 1950 mm |
| Net weight | 16.600 kg |
Mounting
| Mounting type | Standing |
| Mounting position | Floor |
Housing
| Colour | silver |
| Protection class | IP20 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | 0–50 °C |
Electrical version
| Type of control | DALI |
| Nominal voltage | 220–240 V, 50–60 Hz |
| Rated power | 86.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Cover microprismatic |
| Light emission | direct/indirect |
| Light distribution | symmetric |
| Beam characteristics | wide beam |
| UGR class | ≤ 16 |
| Rated luminous flux | 11470 lm |
| Luminaire efficiency | 133 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center
Light distribution curve
