S36-PD149 NDFSW840LPO0300 / SPG0620039AQ
Product Description
Pendant luminaire from the S36-PROFIL product family. Optical control via Opal cover, beam pattern symmetric, extremely wide beam, light emission direct. Lamp LED-M installed, Replacement by specialist. The luminaire generates a rated luminous flux of 3090 lm in light colour 840, luminous flux adjustable: No. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Aluminium, black, protection rating IP20. With electronic electrical component On/Off. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
Order Information
| Item number | SPG0620039AQ |
| GTIN | 4029299523553 |
General
| Product category | Pendant luminaire |
| Range of application | Office | Retail |
| Guarantee | 5 years |
Dimensions
| Dimension L | 1490 mm |
| Dimension B | 36 mm |
| Dimension H | 72 mm |
| Net weight | 3.770 kg |
Mounting
| Mounting type | Pendant |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Number of poles | 3 |
| Conductor cross-section | 0.5–2.5 mm² |
Housing
| Colour | black |
| Protection class | IP20 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -25–25 °C |
| Housing material | Aluminium |
| Cover material | PC opal |
Electrical version
| Type of control | On/Off |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 27.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Opal cover |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | extremely wide beam |
| UGR class | ≤ 25 |
| Rated luminous flux | 3090 lm |
| Luminaire efficiency | 114 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center
Approvals:
Pendant luminaire from the S36-PROFIL product family. Optical control via Opal cover, beam pattern symmetric, extremely wide beam, light emission direct. Lamp LED-M installed, Replacement by specialist. The luminaire generates a rated luminous flux of 3090 lm in light colour 840, luminous flux adjustable: No. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Aluminium, black, protection rating IP20. With electronic electrical component On/Off. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
Order Information
| Item number | SPG0620039AQ |
| GTIN | 4029299523553 |
General
| Product category | Pendant luminaire |
| Range of application | Office | Retail |
| Guarantee | 5 years |
Dimensions
| Dimension L | 1490 mm |
| Dimension B | 36 mm |
| Dimension H | 72 mm |
| Net weight | 3.770 kg |
Mounting
| Mounting type | Pendant |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Number of poles | 3 |
| Conductor cross-section | 0.5–2.5 mm² |
Housing
| Colour | black |
| Protection class | IP20 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -25–25 °C |
| Housing material | Aluminium |
| Cover material | PC opal |
Electrical version
| Type of control | On/Off |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 27.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Opal cover |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | extremely wide beam |
| UGR class | ≤ 25 |
| Rated luminous flux | 3090 lm |
| Luminaire efficiency | 114 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center

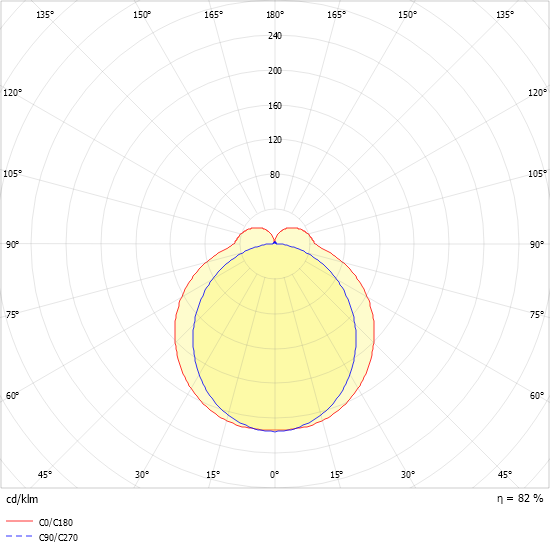

Light distribution curve
Approvals:
Attributes:
