RUFO2 360NDWS830H0250-IK / 0420861
Product Description
Housing made of Steel, traffic white, similar to RAL 9016, protection rating IP40. Cover made of PMMA opal.
Order Information
| Item number | 0420861 |
| GTIN | 4029299924046 |
General
| Product category | Ceiling and wall luminaire |
| Range of application | Education | Industry | Office |
| Guarantee | 5 years |
Dimensions
| Dimension H | 95 mm |
| Dimension D | 360 mm |
| Dimension A1 | 272 mm |
| Dimension A2 | 232 mm |
| Dimension D1 | 329 mm |
| Net weight | 1.060 kg |
Dimension drawing
Mounting
| Mounting type | Attachment |
| Mounting position | Ceiling | Wall |
| Connection type | plug-in terminal |
| Number of poles | 3 |
| Conductor cross-section | 0.5–2.5 mm² |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Farbe_Kurz | ws |
| Protection class | IP40 |
| Impact resistance | IK10 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -20–25 °C |
| Housing material | Steel |
| Surface treatment of housing | powder-coated |
| Cover material | PMMA opal |
Electrical version
| Type of control | On/Off |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 20.0 W |
| Protection class | I |
Lighting technology
| Light guide | Opal cover |
| Light output | direct |
| Light distribution | symmetric |
| Radiation pattern | diffuse beam |
| UGR class | ≤ 22 |
| Rated luminous flux | 2470 lm |
| Luminaire efficiency | 124 lm/W |
UGR table
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 3000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center
Approvals:
| Item number - Designation | Produktbeschreibung | Download | Wishlist |
| - |
|
Product Description
Housing made of Steel, traffic white, similar to RAL 9016, protection rating IP40. Cover made of PMMA opal.
Product information
Order Information
| Item number | 0420861 |
| GTIN | 4029299924046 |
General
| Product category | Ceiling and wall luminaire |
| Range of application | Education | Industry | Office |
| Guarantee | 5 years |
Dimensions
| Dimension H | 95 mm |
| Dimension D | 360 mm |
| Dimension A1 | 272 mm |
| Dimension A2 | 232 mm |
| Dimension D1 | 329 mm |
| Net weight | 1.060 kg |
Dimension drawing
Mounting
| Mounting type | Attachment |
| Mounting position | Ceiling | Wall |
| Connection type | plug-in terminal |
| Number of poles | 3 |
| Conductor cross-section | 0.5–2.5 mm² |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Farbe_Kurz | ws |
| Protection class | IP40 |
| Impact resistance | IK10 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -20–25 °C |
| Housing material | Steel |
| Surface treatment of housing | powder-coated |
| Cover material | PMMA opal |
Electrical version
| Type of control | On/Off |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 20.0 W |
| Protection class | I |
Lighting technology
| Light guide | Opal cover |
| Light output | direct |
| Light distribution | symmetric |
| Radiation pattern | diffuse beam |
| UGR class | ≤ 22 |
| Rated luminous flux | 2470 lm |
| Luminaire efficiency | 124 lm/W |
UGR table
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 3000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center

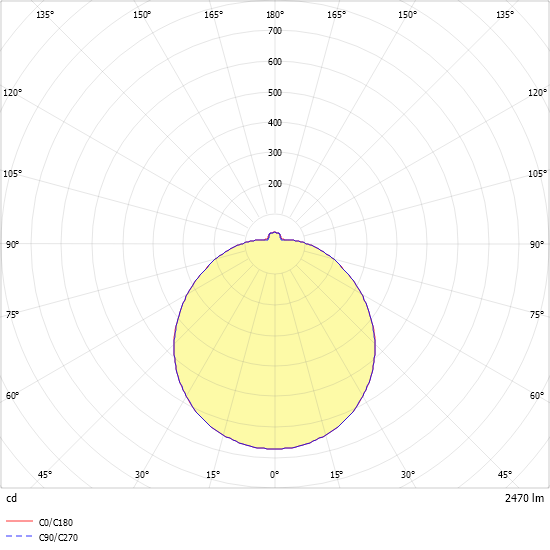

Light distribution curve
