RUFO-ECO2 460FLWS830840H490 / 0420891
Product Description
Order Information
| Item number | 0420891 |
| GTIN | 4029299934724 |
General
| Product category | Ceiling and wall luminaire |
| Guarantee | 5 years |
Dimensions
| Dimension H | 120 mm |
| Dimension D | 464 mm |
| Dimension A1 | 360 mm |
| Dimension A2 | 312 mm |
| Dimension D1 | 434 mm |
| Net weight | 1.700 kg |
Dimension drawing
Mounting
| Mounting type | Attachment |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Number of poles | 3 |
Housing
| Colour | white |
| Protection class | IP40 |
| Impact resistance | IK02 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -20–25 °C |
| Housing material | Steel |
| Surface treatment of housing | powder-coated |
| Cover material | PMMA opal |
Electrical version
| Type of control | xFlex |
| Nominal voltage | 220–240 V, 0/ |
| Rated power | 39.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Opal cover |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | diffuse beam |
| UGR class | ≤ 25 |
| Rated luminous flux | 4900 lm |
| Luminaire efficiency | 126 lm/W |

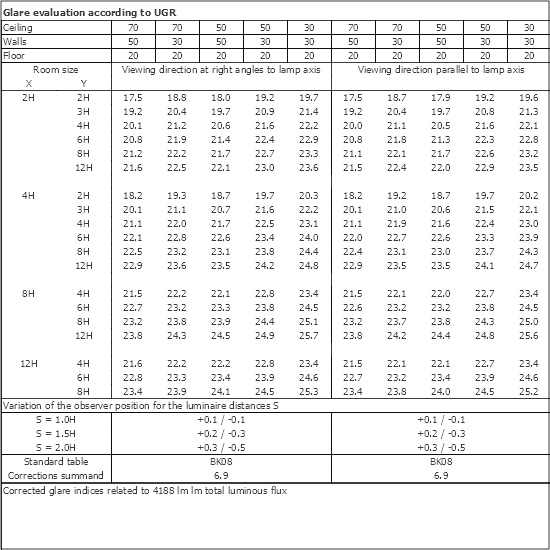

UGR table
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 3000 K | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center
Approvals:
| Item number - Designation | Produktbeschreibung | Download | Wishlist |
0204572 -
WRUFO2 460 H
|
Replacement diffuser for RUFO2 460 H made of PMMA |
|
|
Product Description
Product information
Order Information
| Item number | 0420891 |
| GTIN | 4029299934724 |
General
| Product category | Ceiling and wall luminaire |
| Guarantee | 5 years |
Dimensions
| Dimension H | 120 mm |
| Dimension D | 464 mm |
| Dimension A1 | 360 mm |
| Dimension A2 | 312 mm |
| Dimension D1 | 434 mm |
| Net weight | 1.700 kg |
Dimension drawing
Mounting
| Mounting type | Attachment |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Number of poles | 3 |
Housing
| Colour | white |
| Protection class | IP40 |
| Impact resistance | IK02 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -20–25 °C |
| Housing material | Steel |
| Surface treatment of housing | powder-coated |
| Cover material | PMMA opal |
Electrical version
| Type of control | xFlex |
| Nominal voltage | 220–240 V, 0/ |
| Rated power | 39.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Opal cover |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | diffuse beam |
| UGR class | ≤ 25 |
| Rated luminous flux | 4900 lm |
| Luminaire efficiency | 126 lm/W |
UGR table
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 3000 K | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center

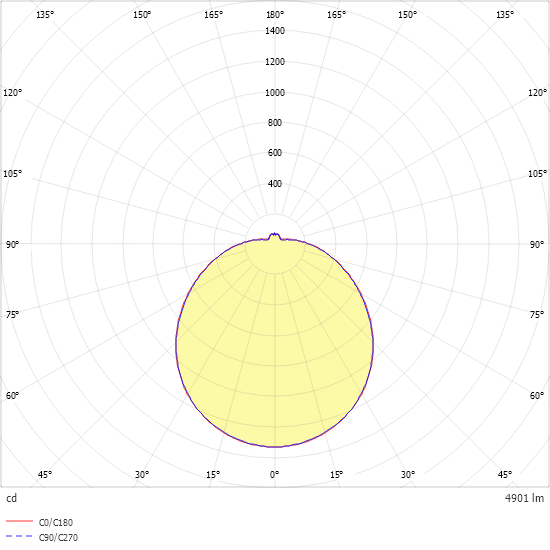

Light distribution curve
