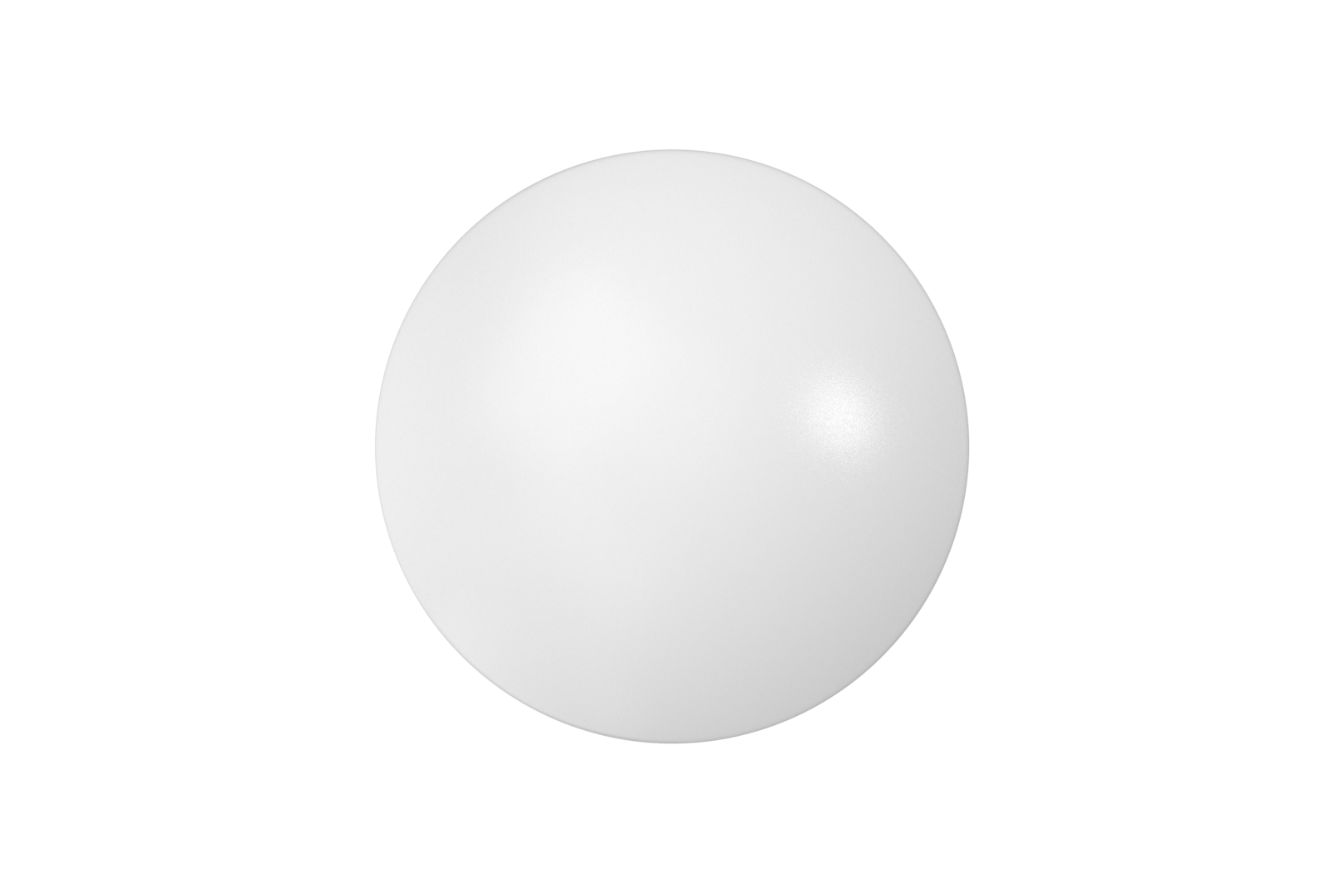

RUFO-ECO2 360FLWS830840H300-RS / 0420890//396
Product Description
Order Information
| Item number | 0420890//396 |
| GTIN | 4029299934717 |
General
| Product category | Ceiling and wall luminaire |
| Sensor | Movement |
| Guarantee | 5 years |
Dimensions
| Dimension H | 95 mm |
| Dimension D | 360 mm |
| Dimension A1 | 272 mm |
| Dimension A2 | 232 mm |
| Dimension D1 | 329 mm |
| Net weight | 1.270 kg |
Dimension drawing
Mounting
| Mounting type | Attachment |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Number of poles | 3 |
Housing
| Colour | white |
| Protection class | IP40 |
| Impact resistance | IK02 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -20–25 °C |
| Housing material | Steel |
| Surface treatment of housing | powder-coated |
| Cover material | PMMA opal |
Electrical version
| Type of control | xFlex |
| Nominal voltage | 220–240 V, |
| Rated power | 24.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Opal cover |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | diffuse beam |
| UGR class | ≤ 25 |
| Rated luminous flux | 3000 lm |
| Luminaire efficiency | 125 lm/W |
UGR table
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 3000 K | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Sensor technology
| Transverse detection range | Ø 6 m |
| Frontal detection range | Ø 6 m |
| Angle of coverage | 360° |
| Capture field | 28 m² |
| Optimum mounting height | 3 m |
| Maximum mounting height | 6 m |
| Brightness setpoint | 2 - 50 lx |
Download Center
Approvals:
| Item number - Designation | Produktbeschreibung | Download | Wishlist |
0204571 -
WRUFO2 360 H
|
Replacement diffuser for RUFO2 360 H made of PMMA |
|
|
Product Description
Product information
Order Information
| Item number | 0420890//396 |
| GTIN | 4029299934717 |
General
| Product category | Ceiling and wall luminaire |
| Sensor | Movement |
| Guarantee | 5 years |
Dimensions
| Dimension H | 95 mm |
| Dimension D | 360 mm |
| Dimension A1 | 272 mm |
| Dimension A2 | 232 mm |
| Dimension D1 | 329 mm |
| Net weight | 1.270 kg |
Dimension drawing
Mounting
| Mounting type | Attachment |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Number of poles | 3 |
Housing
| Colour | white |
| Protection class | IP40 |
| Impact resistance | IK02 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -20–25 °C |
| Housing material | Steel |
| Surface treatment of housing | powder-coated |
| Cover material | PMMA opal |
Electrical version
| Type of control | xFlex |
| Nominal voltage | 220–240 V, |
| Rated power | 24.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Opal cover |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | diffuse beam |
| UGR class | ≤ 25 |
| Rated luminous flux | 3000 lm |
| Luminaire efficiency | 125 lm/W |
UGR table
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 3000 K | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Sensor technology
| Transverse detection range | Ø 6 m |
| Frontal detection range | Ø 6 m |
| Angle of coverage | 360° |
| Capture field | 28 m² |
| Optimum mounting height | 3 m |
| Maximum mounting height | 6 m |
| Brightness setpoint | 2 - 50 lx |
Download Center

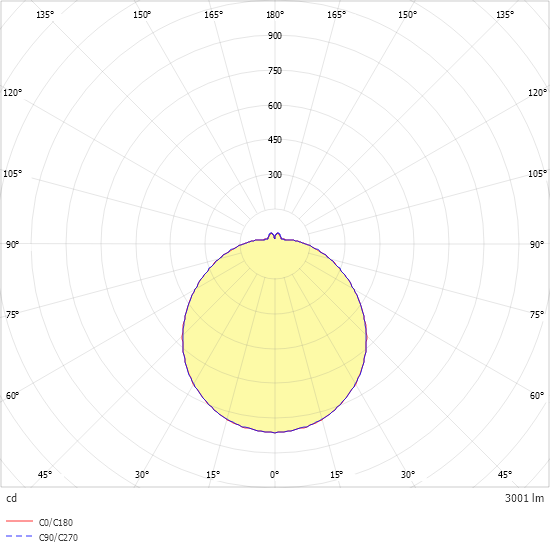

Light distribution curve
