ROBUST NDWS840T3000 / 0627899
Product Description
High-bay spotlight from the ROBUST product family. Optical control via Louvre, beam pattern symmetric, medium beam, light emission direct. Lamp LED-M installed, Replacement by specialist. The luminaire generates a rated luminous flux of 28840 lm in light colour 840, luminous flux adjustable: No. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Aluminium, traffic white, similar to RAL 9016, protection rating IP66. Ceiling-mounted installation with corresponding accessories. Pendant mounting (chain or rope) with corresponding fixing kits, swing hooks (4 pieces) included. Mounting rail installation with corresponding accessories. Ball resistant mounting only with appropriately labelled accessories. With electronic electrical component On/Off. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
Note on “Food Hygiene Act”: These luminaires comply with the stipulations of the Food Hygiene Act as defined by Regulation (EC) No. 852/2004 (HACCP) Annex II Chapter I section 2 a, b, Chapter II section 1c relating to luminaires. These are suitable for use in the food industry. A possible restriction of the area of application in the food industry can be found in the food certificate.
Note on harmful gas resistance: A special coating on the LEDs makes the product more resistant to harmful gases.
Order Information
| GTIN | 4029299574661 |
General
| Product category | High-bay spotlight |
| Range of application | Industry | Sports and multipurpose halls | Food |
| HACCP certified | Yes |
Dimensions
| Dimension L | 415 mm |
| Dimension B | 415 mm |
| Dimension H | 131 mm |
| Net weight | 7.200 kg |
Mounting
| Mounting type | Attachment |
| Mounting position | Ceiling |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP66 |
| Impact resistance | IK09 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -40–30.1 °C |
| Housing material | Aluminium |
| Cover material | Glass (ESG) |
Electrical version
| Type of control | On/Off |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 195.0 W |
| Protection class | I |
Lighting technology
| Light guide | Louvre |
| Light output | direct |
| Light distribution | symmetric |
| Radiation pattern | deep beam |

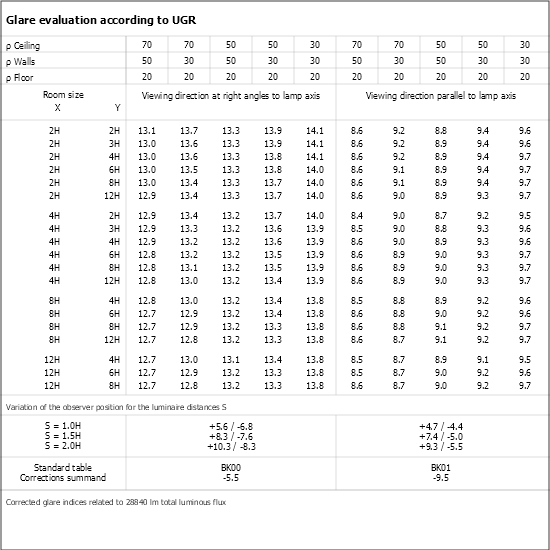

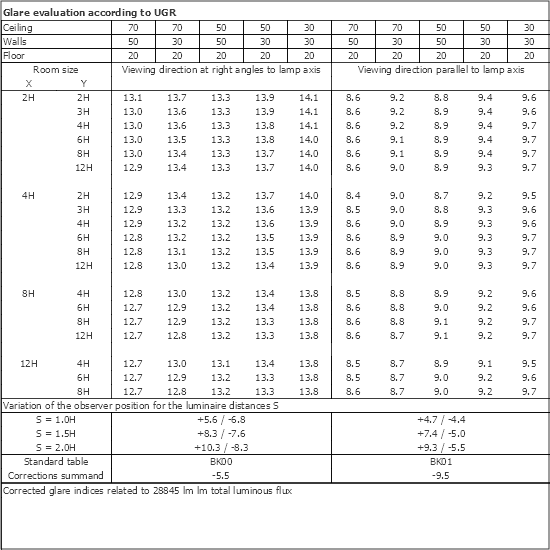

| UGR class | ≤ 16 |
| Rated luminous flux | 28840 lm |
| Luminaire efficiency | 147,9 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Rated life L80B50 (tq = 25 °C) | 98.000 h |
| Rated life L80B10 (tq = 25 °C) | 74.000 h |
Download Center
Approvals:
| Item number - Designation | Produktbeschreibung | Download | Wishlist |
0206548 -
VLTVA TRAGSCHIENENVERBINDER
|
External trunking connector IP20 |
|
|
0206548AG -
VLTVA TRAGSCHIENENV.-RAL 9006
|
Ext. trunking connector IP20, silver similar to RAL 9006 |
|
|
1205790 -
VLTV TRAGSCHIENENVERBINDER
|
IP20 and IP54 trunking connector, 1 pc |
|
|
0205224 -
VLTHDB AUFHÄNGER
|
Ceiling fixture with cross screw for securing, max. 20 kg, 1 piece |
|
|
0205222 -
VLTHDS AUFHÄNGER + HAKEN KURZ
|
Chain suspension hanger, angular mounting, max 20kg, 1 pc |
|
|
0205761 -
VLTLI
|
Internal cable retainer, 10 units, observe instructions |
|
|
0207867 -
TRAS-HA
|
Chain suspension hanger adjustable nut, 1 pc |
|
|
0205887 -
VLBP
|
Plate with loop for ceiling fixing. max. 20kg, 1 pc |
|
|
0207083 -
TRAS-AB
|
Fixing plate for ball resistant mounting of TRAS-A |
|
|
0207868 -
TRAS-HD
|
Hanger with 6.0 dia. for ceiling mounting, 1 pc |
|
|
0205791SI -
VLTE SI TRAGSCHIENEN ENDDECKEL
|
Trunking end cap, silver, plastic, 1 pc |
|
|
0205791 -
VLTE TRAGSCHIENEN ENDDECKEL
|
Trunking end cap, white, plastic, 1 pc |
|
|
0207880 -
ZSP-SK-3M
|
Wire pendant loop clamp, D = 2 mm, L = 3m, 1 piece, maximum 45 kg |
|
|
1500006 -
VLTO 583
|
Trunking, 3-length, L=4611 mm, without through wiring, white |
|
|
|
1500006SI -
VLTO 583 SI
|
Trunking, 3-length, L=4611 mm, without through wiring, silver |
|
|
|
1500005 -
VLTO 582
|
Trunking, 2-length, L=3074 mm, without through wiring, white |
|
|
|
1500005SI -
VLTO 582 SI
|
Trunking, 2-length, L=3074 mm, without through wiring, silver |
|
|
|
1500004 -
VLTO 581
|
Trunking, 1-length, L=1537 mm, without through wiring, white |
|
|
|
1500004SI -
VLTO 581 SI
|
Trunking, 1-length, L=1537 mm, without through wiring, silver |
|
|
|
1500003 -
VLTO 363
|
Trunking, 3-length, L=3711 mm, without through wiring, white |
|
|
|
1500002SI -
VLTO 362 SI
|
Trunking, 2-length, L=2474 mm, without through wiring, silver |
|
|
|
1500001 -
VLTO 361
|
Trunking 36W, 1-length, L=1237 mm, without through wiring, white |
|
|
|
1500001SI -
VLTO 361 SI
|
Trunking, 1-length, L=1237 mm, without through wiring, silver |
|
|
|
1500002 -
VLTO 362
|
Trunking, 2-length, L=2474 mm, without through wiring, white |
|
|
0207852 -
TRAS 4500
|
Galvanized steel trunking, L=4.5m, weight 5.9 kg |
|
|
|
0207851 -
TRAS 3000
|
Galvanized steel trunking, L=3.0m, weight 3.9 kg |
|
|
0206551AP -
VLBKK-AP
|
Safety clamp for VLBK, natural 1 pc |
|
|
0205760 -
VLTLA
|
Ext. cable retainer max. 2 x dia.13mm + 1 x dia.7mm, 1 pc |
|
|
0217884 -
ZBS-D-HT ROBUST T>25°
|
Ceiling fixture for ROBUST, H=300 mm, for high temperature areas |
|
|
0207860 -
TRAS-V
|
Trunking connector for TRAS, 1pc |
|
|
0217885 -
ZBS-VLT ROBUST
|
Luminaire fixture ROBUST to VLT, set |
|
|
0217886 -
ZBS-TRAS ROBUST
|
Luminaire fixture ROBUST to TRAS, set |
|
|
0207853 -
TRAS-A 1500
|
Galv. cover for TRAS, L=1.5m, ball resistant with TRAS-AB |
|
|
0205888 -
VLKH
|
Carabiner hook, dimensions 50x25x5, max. 20kg, 1pc |
|
|
0200223 -
TRA 002 M5X20
|
Luminaire hanger M5 x 20 swing hooks, galvanized steel |
|
|
0208347 -
VLSPSO-KH
|
Turnbuckle with eyelets + carabiner, adjustment 50 mm, maximum 20 kg, 1 piece |
|
|
| 0209463 - ZBS-WHS-ROBUST-WS | Wall bracket ROBUST adjustable, white |
|
|
0200251 -
TRA 008 KETTE GALV. VERZ.
|
Galvanised chain, max. 20kg , weight 0.25 kg/m |
|
|
0217883 -
ZBS-K ROBUST
|
Chain fixture, order chain or wire separately |
|
|
0217882 -
ZBS-D ROBUST
|
Ceiling fixture for ROBUST, H=30MM |
|
|
High-bay spotlight from the ROBUST product family. Optical control via Louvre, beam pattern symmetric, medium beam, light emission direct. Lamp LED-M installed, Replacement by specialist. The luminaire generates a rated luminous flux of 28840 lm in light colour 840, luminous flux adjustable: No. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Aluminium, traffic white, similar to RAL 9016, protection rating IP66. Ceiling-mounted installation with corresponding accessories. Pendant mounting (chain or rope) with corresponding fixing kits, swing hooks (4 pieces) included. Mounting rail installation with corresponding accessories. Ball resistant mounting only with appropriately labelled accessories. With electronic electrical component On/Off. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
Note on “Food Hygiene Act”: These luminaires comply with the stipulations of the Food Hygiene Act as defined by Regulation (EC) No. 852/2004 (HACCP) Annex II Chapter I section 2 a, b, Chapter II section 1c relating to luminaires. These are suitable for use in the food industry. A possible restriction of the area of application in the food industry can be found in the food certificate.
Note on harmful gas resistance: A special coating on the LEDs makes the product more resistant to harmful gases.
Order Information
| GTIN | 4029299574661 |
General
| Product category | High-bay spotlight |
| Range of application | Industry | Sports and multipurpose halls | Food |
| HACCP certified | Yes |
Dimensions
| Dimension L | 415 mm |
| Dimension B | 415 mm |
| Dimension H | 131 mm |
| Net weight | 7.200 kg |
Mounting
| Mounting type | Attachment |
| Mounting position | Ceiling |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP66 |
| Impact resistance | IK09 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -40–30.1 °C |
| Housing material | Aluminium |
| Cover material | Glass (ESG) |
Electrical version
| Type of control | On/Off |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 195.0 W |
| Protection class | I |
Lighting technology
| Light guide | Louvre |
| Light output | direct |
| Light distribution | symmetric |
| Radiation pattern | deep beam |
| UGR class | ≤ 16 |
| Rated luminous flux | 28840 lm |
| Luminaire efficiency | 147,9 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Rated life L80B50 (tq = 25 °C) | 98.000 h |
| Rated life L80B10 (tq = 25 °C) | 74.000 h |
Download Center

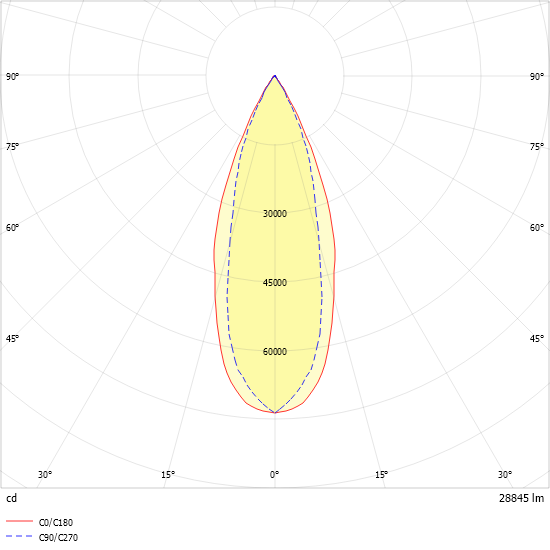

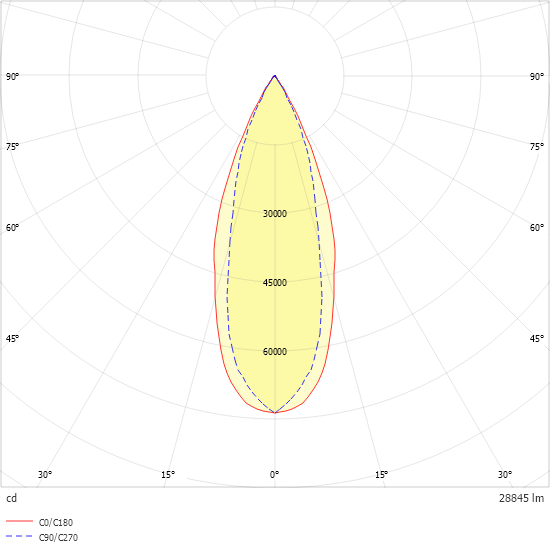

Light distribution curve
