RLS2-DAWS865-SMB2800 / 1331482
Product Description
High-bay spotlight from the RLS-LED product family. Optical control via Reflector, beam pattern symmetric, extremely wide beam, light emission direct. Lamp LED-M installed, Replacement by specialist. The luminaire generates a rated luminous flux of 28580 lm in light colour 865, luminous flux adjustable: stepless. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Aluminium, traffic white, similar to RAL 9016, protection rating IP65. Wire pendant, tube pendant, chain and ceiling mounting with corresponding fixing accessories. Wire pendant mounting via wire pendant (2x Art. 0210958).ball resistant mounting exclusively with chains (2x Art. 0200251), ceiling fixture (2x Art. 0205887) and snap hooks (4x Art. 0205888). With electronic electrical component DALI-2. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
Note on “Food Hygiene Act”: These luminaires comply with the stipulations of the Food Hygiene Act as defined by Regulation (EC) No. 852/2004 (HACCP) Annex II Chapter I section 2 a, b, Chapter II section 1c relating to luminaires. These are suitable for use in the food industry. A possible restriction of the area of application in the food industry can be found in the food certificate.
Note “ball resistant“:RIDI luminaires with this sign are produced to the appropriate mechanical and photometric standards demanded for sports hall lighting. They comply with ball-resistant safety requirements according to DIN 18032, part 3.
Note: For feed-through wiring from lamp to lamp, a conduit/junction box must be provided on site.
Order Information
| Item number | 1331482 |
| GTIN | 4029299570984 |
General
| Product category | High-bay spotlight |
| Range of application | Industry | Sports and multipurpose halls | Food |
| HACCP certified | Yes |
Dimensions
| Dimension H | 500 mm |
| Dimension D | 330 mm |
| Net weight | 9.400 kg |
Mounting
| Mounting type | Pendant |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Farbe_Kurz | ws |
| Protection class | IP65 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -40–25 °C |
| Housing material | Aluminium |
| Cover material | PC clear |
Electrical version
| Type of control | DALI-2 |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 191.0 W |
| Protection class | I |
Lighting technology
| Light guide | Reflector |
| Reflector | matt |
| Light output | direct |
| Light distribution | symmetric |
| Radiation pattern | wide beam |
| UGR class | > 25 |
| Rated luminous flux | 28580 lm |
| Luminaire efficiency | 150 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 6500 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center
Approvals:
| Item number - Designation | Produktbeschreibung | Download | Wishlist |
| 0202428 - RL-DB | Ceiling fixing for RL.1/RL.2 |
|
|
0202427 -
RL-HK
|
Chain fixing for RL.1/RL.2 , 1 pc |
|
|
0202425 -
RL-SPO 1.5
|
Wire pendant for RL.1/RL.2 1.5m with loop, 1 pc |
|
|
|
0202426 -
RL-SPO 3.0
|
Wire pendant for RL.1/RL.2 3.0m with loop, 1 pc |
|
|
| 0202438 - RLS2-LED-VSK PC | Panel attachment, clear PC, white fixing ring |
|
|
0210958 -
UKNS 1.5M
|
Wire pendant w. ceiling fixing and wire clamp, 1.5m, 1 pc |
|
|
0200251 -
TRA 008 KETTE GALV. VERZ.
|
Galvanised chain, max. 20kg , weight 0.25 kg/m |
|
|
0205888 -
VLKH
|
Carabiner hook, dimensions 50x25x5, max. 20kg, 1pc |
|
|
0205887 -
VLBP
|
Plate with loop for ceiling fixing. max. 20kg, 1 pc |
|
|
0200906 -
SLKG KETTEN-S-GLIED
|
S chain link, max.20kg, per unit |
|
|
High-bay spotlight from the RLS-LED product family. Optical control via Reflector, beam pattern symmetric, extremely wide beam, light emission direct. Lamp LED-M installed, Replacement by specialist. The luminaire generates a rated luminous flux of 28580 lm in light colour 865, luminous flux adjustable: stepless. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Aluminium, traffic white, similar to RAL 9016, protection rating IP65. Wire pendant, tube pendant, chain and ceiling mounting with corresponding fixing accessories. Wire pendant mounting via wire pendant (2x Art. 0210958).ball resistant mounting exclusively with chains (2x Art. 0200251), ceiling fixture (2x Art. 0205887) and snap hooks (4x Art. 0205888). With electronic electrical component DALI-2. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
Note on “Food Hygiene Act”: These luminaires comply with the stipulations of the Food Hygiene Act as defined by Regulation (EC) No. 852/2004 (HACCP) Annex II Chapter I section 2 a, b, Chapter II section 1c relating to luminaires. These are suitable for use in the food industry. A possible restriction of the area of application in the food industry can be found in the food certificate.
Note “ball resistant“:RIDI luminaires with this sign are produced to the appropriate mechanical and photometric standards demanded for sports hall lighting. They comply with ball-resistant safety requirements according to DIN 18032, part 3.
Note: For feed-through wiring from lamp to lamp, a conduit/junction box must be provided on site.
Order Information
| Item number | 1331482 |
| GTIN | 4029299570984 |
General
| Product category | High-bay spotlight |
| Range of application | Industry | Sports and multipurpose halls | Food |
| HACCP certified | Yes |
Dimensions
| Dimension H | 500 mm |
| Dimension D | 330 mm |
| Net weight | 9.400 kg |
Mounting
| Mounting type | Pendant |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Farbe_Kurz | ws |
| Protection class | IP65 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -40–25 °C |
| Housing material | Aluminium |
| Cover material | PC clear |
Electrical version
| Type of control | DALI-2 |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 191.0 W |
| Protection class | I |
Lighting technology
| Light guide | Reflector |
| Reflector | matt |
| Light output | direct |
| Light distribution | symmetric |
| Radiation pattern | wide beam |
| UGR class | > 25 |
| Rated luminous flux | 28580 lm |
| Luminaire efficiency | 150 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 6500 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center

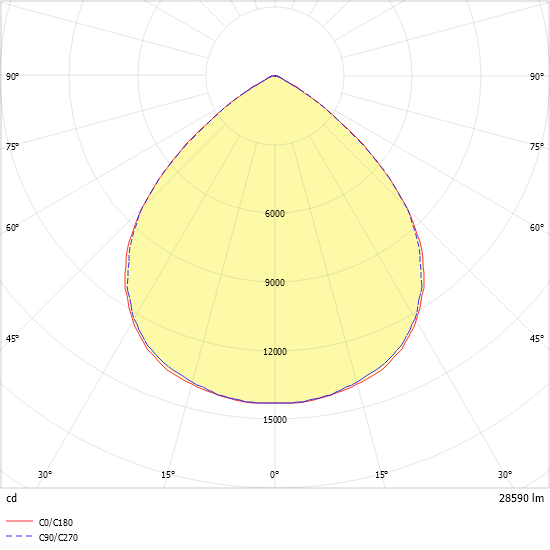

Light distribution curve
