RLS1-LED ... SMB

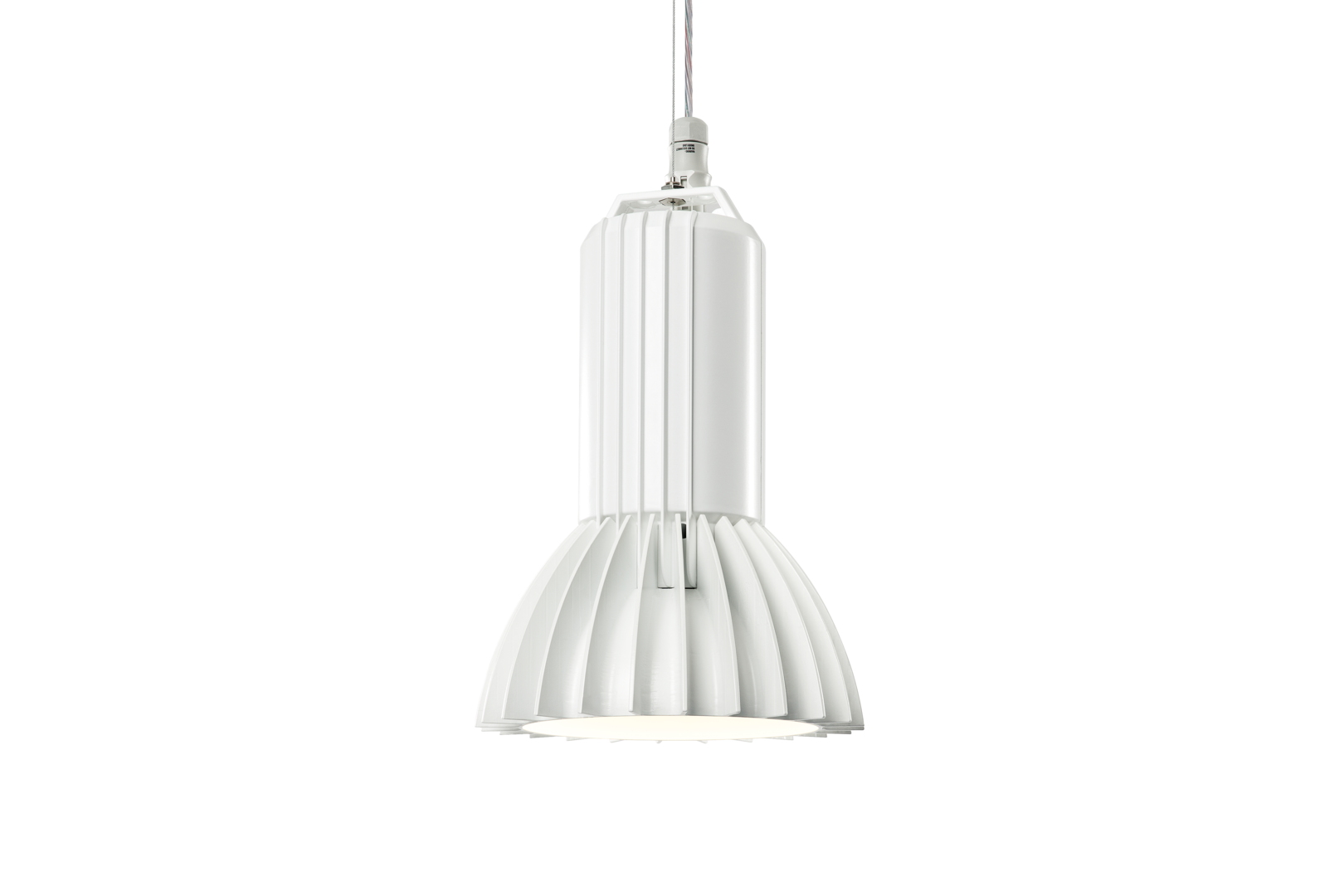

Reflector luminaire, die-cast aluminium luminaire housing, white powder coated, colour similar to RAL9016. Reflector housing made of die-cast aluminium with modern, generously dimensioned cooling fins for optimum, efficient thermal dissipation. Foamed seal between the two halves of the housing. Reflector clamped in reflector housing. LED modules designed as flat printed circuit boards. Mid-power LEDs for even illumination and maximum efficiency. LED converter mounted in the luminaire housing. Integrated retaining bracket for holding the fixing accessories.
1331473 - RLS1-DAWS830-SMB1600
Control:
DALI
Colour temperature:
3000 K
Luminous flux (lm): 15580
Power (W): 114
Efficiency (lm/W): 137
Control:
DALI
Colour temperature:
3000 K
Luminous flux (lm): 8070
Power (W): 54
Efficiency (lm/W): 149
1331474 - RLS1-DAWS840-SMB1600
Control:
DALI
Colour temperature:
4000 K
Luminous flux (lm): 16350
Power (W): 114
Efficiency (lm/W): 143
Control:
DALI
Colour temperature:
4000 K
Luminous flux (lm): 8210
Power (W): 54
Efficiency (lm/W): 152
1321473 - RLS1-NDWS830-SMB1600
Control:
On/Off
Colour temperature:
3000 K
Luminous flux (lm): 16030
Power (W): 115
Efficiency (lm/W): 139
Control:
On/Off
Colour temperature:
3000 K
Luminous flux (lm): 8070
Power (W): 54
Efficiency (lm/W): 149
1321474 - RLS1-NDWS840-SMB1600
Control:
On/Off
Colour temperature:
4000 K
Luminous flux (lm): 16540
Power (W): 116
Efficiency (lm/W): 143
