VLGFP1001-7DAWS830R0500 / 1561028
Product Description
Gear tray VLGFP from the RIDI LINIA product family. Optical control via Cover longitudinal prismatic, beam pattern double asymmetric, angled beam, light emission direct. Lamp LED-M installed, Replacement by specialist. The luminaire generates a rated luminous flux of 4960 lm in light colour 830, luminous flux adjustable: stepless. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Aluminium, traffic white, similar to RAL 9016, protection rating IP54. Mounting: Simple clipping in for electrical contacting and mechanical fastening in the system-bound LINIA trunking system. With electronic electrical component DALI-2. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
Gear tray material: extruded aluminium
Note on “Food Hygiene Act”: These luminaires comply with the stipulations of the Food Hygiene Act as defined by Regulation (EC) No. 852/2004 (HACCP) Annex II Chapter I section 2 a, b, Chapter II section 1c relating to luminaires. These are suitable for use in the food industry. A possible restriction of the area of application in the food industry can be found in the food certificate.
Note on harmful gas resistance: A special coating on the LEDs makes the product more resistant to harmful gases.
Note LABS: These luminaries are suitable for use in paint processing operations outside the painting area or outside of solvent processing areas.
Note regarding refurbishing: When replacing T16/T26 gear trays with LED gear trays, two safety clamps each are to be mounted to secure the gear tray in the trunking (see trunking accessories).
Order Information
| Item number | 1561028 |
| GTIN | 4029299509366 |
General
| Product category | Gear tray |
| Range of application | Education | Office | Retail | Industry | Food |
| HACCP certified | Yes |
| Guarantee | 5 years |
Dimensions
| Dimension L | 1000 mm |
| Dimension B | 67 mm |
| Dimension H | 66 mm |
| Net weight | 1.397 kg |
Mounting
| Mounting type | Power rail |
| Mounting position | Trunking |
| Connection type | Power rail adapter |
| Number of poles | 7 |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP54 |
| Impact resistance | IK03 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -25–30 °C |
| Housing material | Aluminium |
| Surface treatment of housing | powder-coated |
| Cover material | PMMA clear |
Electrical version
| Type of control | DALI-2 |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 37.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Cover longitudinal prismatic |
| Light emission | direct |
| Light distribution | double asymmetric |
| Beam characteristics | double asymmetric beam |

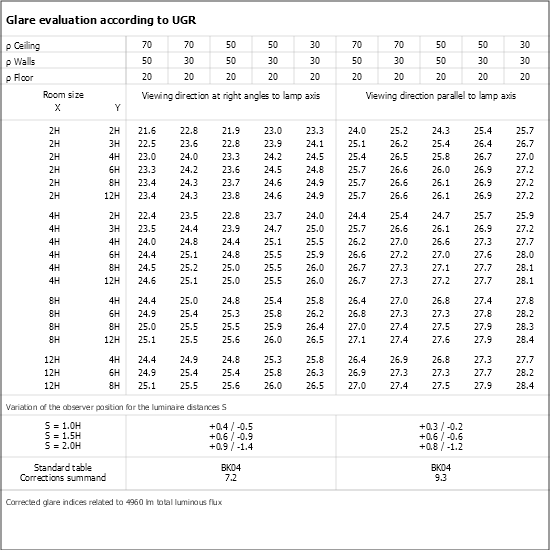

| UGR class | > 25 |
| Rated luminous flux | 4960 lm |
| Luminaire efficiency | 134 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 3000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 60.000 h |
| Rated life L80B10 (tq = 25 °C) | 45.000 h |
