VL1GL1501-5NDWS840E0800 / 1552001
Product Description
Gear tray VL1GL from the RIDI LINIA product family. Optical control via Cover longitudinal prismatic, beam pattern symmetric, narrow beam, light emission direct. Lamp LED-M installed, Replacement by specialist. The luminaire generates a rated luminous flux of 7980 lm in light colour 840, luminous flux adjustable: No. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Steel, traffic white, similar to RAL 9016, protection rating IP21. Mounting: Simple clipping in for electrical contacting and mechanical fastening in the system-bound LINIA trunking system. With electronic electrical component On/Off. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
Note LABS: These luminaries are suitable for use in paint processing operations outside the painting area or outside of solvent processing areas.
Order Information
| Item number | 1552001 |
| GTIN | 4029299572346 |
General
| Product category | Gear tray |
| Range of application | Industry |
Dimensions
| Dimension L | 1500 mm |
| Dimension B | 67 mm |
| Dimension H | 61 mm |
| Net weight | 1.700 kg |
Mounting
| Mounting type | Power rail |
| Mounting position | Trunking |
| Connection type | Power rail adapter |
| Number of poles | 5 |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP21 |
| Impact resistance | IK03 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | 0–40 °C |
| Housing material | Steel |
| Cover material | PMMA clear |
Electrical version
| Type of control | On/Off |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 48.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Cover longitudinal prismatic |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | narrow beam |
| UGR class | ≤ 19 |
| Rated luminous flux | 7980 lm |
| Luminaire efficiency | 166 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Rated life L80B50 (tq = 25 °C) | 100.000 h |
| Rated life L80B10 (tq = 25 °C) | 83.000 h |
Download Center
Approvals:
Gear tray VL1GL from the RIDI LINIA product family. Optical control via Cover longitudinal prismatic, beam pattern symmetric, narrow beam, light emission direct. Lamp LED-M installed, Replacement by specialist. The luminaire generates a rated luminous flux of 7980 lm in light colour 840, luminous flux adjustable: No. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Steel, traffic white, similar to RAL 9016, protection rating IP21. Mounting: Simple clipping in for electrical contacting and mechanical fastening in the system-bound LINIA trunking system. With electronic electrical component On/Off. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
Note LABS: These luminaries are suitable for use in paint processing operations outside the painting area or outside of solvent processing areas.
Order Information
| Item number | 1552001 |
| GTIN | 4029299572346 |
General
| Product category | Gear tray |
| Range of application | Industry |
Dimensions
| Dimension L | 1500 mm |
| Dimension B | 67 mm |
| Dimension H | 61 mm |
| Net weight | 1.700 kg |
Mounting
| Mounting type | Power rail |
| Mounting position | Trunking |
| Connection type | Power rail adapter |
| Number of poles | 5 |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP21 |
| Impact resistance | IK03 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | 0–40 °C |
| Housing material | Steel |
| Cover material | PMMA clear |
Electrical version
| Type of control | On/Off |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 48.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Cover longitudinal prismatic |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | narrow beam |
| UGR class | ≤ 19 |
| Rated luminous flux | 7980 lm |
| Luminaire efficiency | 166 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Rated life L80B50 (tq = 25 °C) | 100.000 h |
| Rated life L80B10 (tq = 25 °C) | 83.000 h |
Download Center

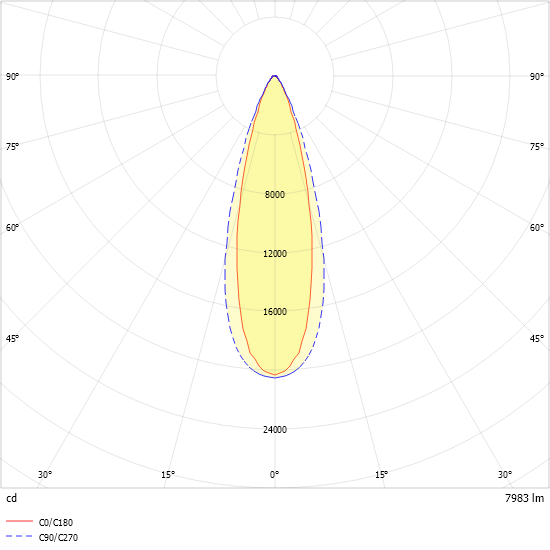

Light distribution curve
