VL2MF-KARO-L-7DASW830S0400 / 0331894SW696
Product Description
Spotlight module KARO of the RIDI LINIA EVO product family. Optical control by Lens from PMMA clear, beam pattern symmetric, , light emission direct. Lamps LED-M installed, Replacement by specialist possible. The luminaire generates a rated luminous flux of 3940 lm in light colour 830, adjustable luminous flux: stepless. The long LED service life of up to 50.000 h enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Aluminium, black, similar to RAL 9005, protection rating IP20, permissible ambient temperatures -25 - 25 °C. Simple clipping-in for electrical contacting and mechanical fastening in the system-bound LINIA trunking system. With electronic electrical component DALI. Replacement by specialist possible. Nominal voltage 220 - 240 V AC/DC 50 - 60 Hz.
Order Information
| Item number | 0331894SW696 |
| GTIN | 4029299926897 |
General
| Product category | Spotlight |
| Range of application | Education | Office | Retail | Industry |
| Guarantee | 5 years |
Dimensions
| Dimension L | 500 mm |
| Dimension B | 130 mm |
| Dimension H | 216 mm |
| Net weight | 1.480 kg |
Mounting
| Mounting type | Power rail |
| Mounting position | Trunking |
| Connection type | Power rail adapter |
| Number of poles | 7 |
Housing
| Colour | black, similar to RAL 9005 |
| Protection class | IP20 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -25–25 °C |
| Housing material | Aluminium |
| Surface treatment of housing | powder-coated |
| Cover material | PMMA clear |
Electrical version
| Type of control | DALI |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 36.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Lens |
| Light emission | direct |
| Light distribution | symmetric |
| UGR class | ≤ 16 |
| Rated luminous flux | 3940 lm |
| Luminaire efficiency | 109 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 3000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center
Approvals:
Spotlight module KARO of the RIDI LINIA EVO product family. Optical control by Lens from PMMA clear, beam pattern symmetric, , light emission direct. Lamps LED-M installed, Replacement by specialist possible. The luminaire generates a rated luminous flux of 3940 lm in light colour 830, adjustable luminous flux: stepless. The long LED service life of up to 50.000 h enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Aluminium, black, similar to RAL 9005, protection rating IP20, permissible ambient temperatures -25 - 25 °C. Simple clipping-in for electrical contacting and mechanical fastening in the system-bound LINIA trunking system. With electronic electrical component DALI. Replacement by specialist possible. Nominal voltage 220 - 240 V AC/DC 50 - 60 Hz.
Order Information
| Item number | 0331894SW696 |
| GTIN | 4029299926897 |
General
| Product category | Spotlight |
| Range of application | Education | Office | Retail | Industry |
| Guarantee | 5 years |
Dimensions
| Dimension L | 500 mm |
| Dimension B | 130 mm |
| Dimension H | 216 mm |
| Net weight | 1.480 kg |
Mounting
| Mounting type | Power rail |
| Mounting position | Trunking |
| Connection type | Power rail adapter |
| Number of poles | 7 |
Housing
| Colour | black, similar to RAL 9005 |
| Protection class | IP20 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -25–25 °C |
| Housing material | Aluminium |
| Surface treatment of housing | powder-coated |
| Cover material | PMMA clear |
Electrical version
| Type of control | DALI |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 36.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Lens |
| Light emission | direct |
| Light distribution | symmetric |
| UGR class | ≤ 16 |
| Rated luminous flux | 3940 lm |
| Luminaire efficiency | 109 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 3000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center

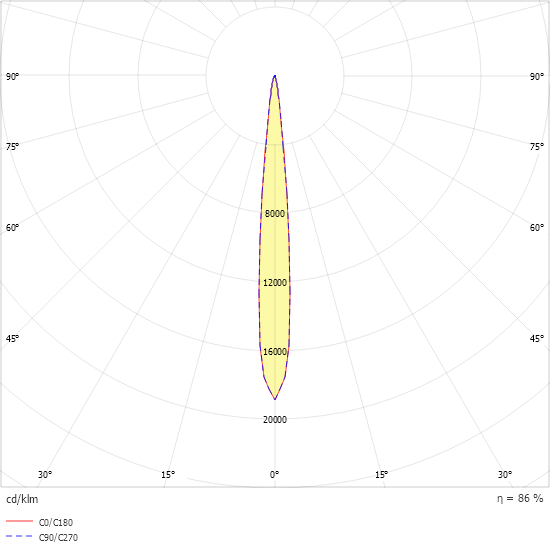

Light distribution curve
