VL2MF-CIRQUA-L1-7DASW840S0400 / 0331954SW696
Product Description
Spotlight module CIRQUA of the RIDI LINIA EVO product family. Optical control by Reflector from Glass (ESG), beam pattern symmetric, , light emission direct. Lamps LED-M installed, Replacement by specialist possible. The luminaire generates a rated luminous flux of 3880 lm in light colour 840, adjustable luminous flux: stepless. The long LED service life of up to 50.000 h enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Aluminium, black, similar to RAL 9005, protection rating IP20, permissible ambient temperatures -25 - 25 °C. Simple clipping-in for electrical contacting and mechanical fastening in the system-bound LINIA trunking system. With electronic electrical component DALI. Replacement by specialist possible. Nominal voltage 220 - 240 V AC/DC 50 - 60 Hz.
Order Information
| Item number | 0331954SW696 |
| GTIN | 4029299926965 |
General
| Product category | Spotlight |
| Range of application | Office | Education | Retail |
| Guarantee | 5 years |
Dimensions
| Dimension L | 500 mm |
| Dimension B | 100 mm |
| Dimension H | 167 mm |
| Net weight | 1.095 kg |
Mounting
| Mounting type | Power rail |
| Mounting position | Trunking |
| Connection type | Power rail adapter |
| Number of poles | 7 |
Housing
| Colour | black, similar to RAL 9005 |
| Protection class | IP20 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -25–25 °C |
| Housing material | Aluminium |
| Surface treatment of housing | powder-coated |
| Cover material | Glass (ESG) |
Electrical version
| Type of control | DALI |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 34.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Reflector |
| Reflector | high gloss |
| Light emission | direct |
| Light distribution | symmetric |
| UGR class | ≤ 16 |
| Rated luminous flux | 3880 lm |
| Luminaire efficiency | 114 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center
Approvals:
Spotlight module CIRQUA of the RIDI LINIA EVO product family. Optical control by Reflector from Glass (ESG), beam pattern symmetric, , light emission direct. Lamps LED-M installed, Replacement by specialist possible. The luminaire generates a rated luminous flux of 3880 lm in light colour 840, adjustable luminous flux: stepless. The long LED service life of up to 50.000 h enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Aluminium, black, similar to RAL 9005, protection rating IP20, permissible ambient temperatures -25 - 25 °C. Simple clipping-in for electrical contacting and mechanical fastening in the system-bound LINIA trunking system. With electronic electrical component DALI. Replacement by specialist possible. Nominal voltage 220 - 240 V AC/DC 50 - 60 Hz.
Order Information
| Item number | 0331954SW696 |
| GTIN | 4029299926965 |
General
| Product category | Spotlight |
| Range of application | Office | Education | Retail |
| Guarantee | 5 years |
Dimensions
| Dimension L | 500 mm |
| Dimension B | 100 mm |
| Dimension H | 167 mm |
| Net weight | 1.095 kg |
Mounting
| Mounting type | Power rail |
| Mounting position | Trunking |
| Connection type | Power rail adapter |
| Number of poles | 7 |
Housing
| Colour | black, similar to RAL 9005 |
| Protection class | IP20 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -25–25 °C |
| Housing material | Aluminium |
| Surface treatment of housing | powder-coated |
| Cover material | Glass (ESG) |
Electrical version
| Type of control | DALI |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 34.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Reflector |
| Reflector | high gloss |
| Light emission | direct |
| Light distribution | symmetric |
| UGR class | ≤ 16 |
| Rated luminous flux | 3880 lm |
| Luminaire efficiency | 114 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center

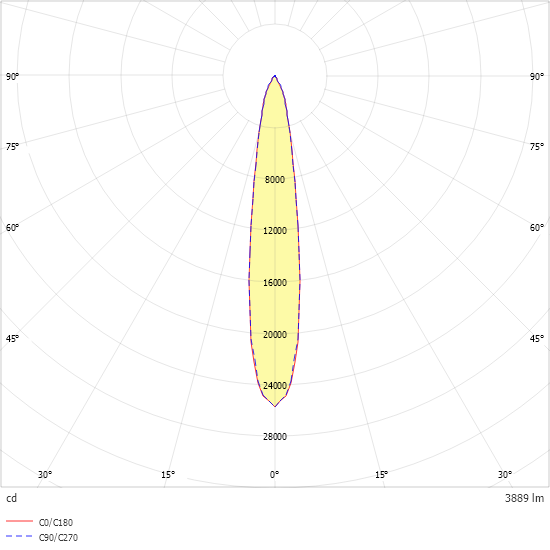

Light distribution curve
