VL2MF-S500-5SI-SFI40-CAS / 2500061SI
Product Description

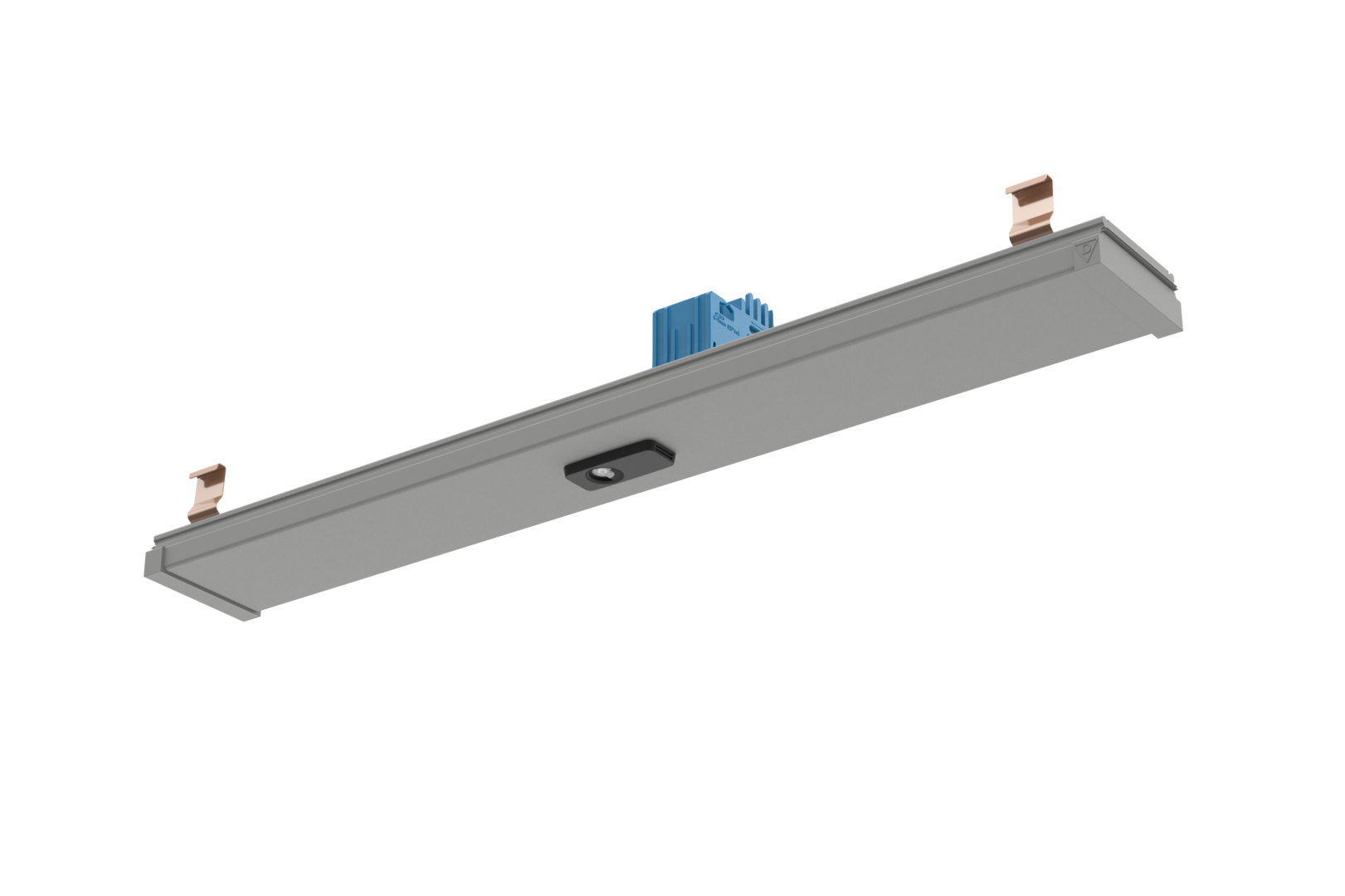

Sensor module insert with Bluetooth Low Energy / BLE light and presence sensor (Casambi). Can optionally be used as a presence sensor and/or as a light sensor in a Casambi network Gear tray made of extruded aluminium profile, silver, similar to RAL 9006. Sensor made of polycarbonate, UV-stabilised. Mounting: Simple clipping in for electrical contacting and mechanical fastening in the system-bound RIDI LINIA EVO mounting rail system. Mechanical coding to prevent incorrect installation (polarity reversal). Nominal voltage 220 - 240 V AC 50 - 60 Hz. Electrical adapter for flexible tapping through wiring in the trunking. Colour and optical coding for easy mounting. With light and motion detector. Transverse detection range Ø 5.4 m, detection field 22 m². Configurable via Casambi app.
Compatibility of different APCON components only guaranteed within the respective APCON system: APCON EASY / EASY BLE / INDIVIDUAL / UNLIMITED.
Order Information
| Item number | 2500061SI |
| GTIN | 4029299929294 |
General
| Product category | Light and motion sensor |
| Range of application | Industry |
| Technology | Casambi |
| Sensor | Light | Movement |
| Guarantee | 5 years |
Dimensions
| Dimension L | 500 mm |
| Dimension B | 67 mm |
| Dimension H | 70 mm |
| Net weight | 0.420 kg |
Mounting
| Mounting type | Power rail |
| Mounting position | Trunking |
| Connection type | Power rail adapter |
| Number of poles | 5 |
Housing
| Colour | silver, similar to RAL 9006 |
| Protection class | IP20 |
| Permissible ambient temperature | 0–25 °C |
| Housing material | Aluminium |
Electrical version
| Type of control | Casambi |
| Nominal voltage | 220–240 V, 50–60 Hz |
| Protection class | I |
Sensor technology
| Transverse detection range | Ø 5.4 m |
| Frontal detection range | Ø 5.4 m |
| Presence detection range | Ø 4 m |
| Angle of coverage | 360° (oval) |
| Capture field | 22 m² |
| Optimum mounting height | 3 m |
| Maximum mounting height | 4 m |
| Brightness setpoint | 10 - 2000 lx |
