VL2S-MRM100-7DAWS840B0300 / 2560008
Product Description
Gear tray VL2S-MRM from the RIDI LINIA EVO product family. Optical control by Reflector from PC opal, beam pattern symmetric, wide beam, light emission direct. Lamps LED-M installed, Replacement by specialist possible. The luminaire generates a rated luminous flux of 3140 lm in light colour 840, adjustable luminous flux: stepless. The long LED service life of up to 100.000 h enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Aluminium, traffic white, similar to RAL 9016, protection rating IP40, permissible ambient temperatures -25 - 47 °C. Mounting: Simple clipping in for electrical contacting and mechanical fastening in the system-bound LINIA EVO trunking system.
Order Information
| Item number | 2560008 |
| GTIN | 4029299712100 |
General
| Product category | Gear tray |
| Range of application | Education | Office |
| Guarantee | 5 years |
Dimensions
| Dimension L | 1000 mm |
| Dimension B | 67 mm |
| Dimension H | 67 mm |
| Net weight | 1.300 kg |
Mounting
| Mounting type | Power rail |
| Mounting position | Trunking |
| Connection type | Power rail adapter |
| Number of poles | 7 |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Farbe_Kurz | ws |
| Protection class | IP40 |
| Impact resistance | IK03 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -25–47 °C |
| Housing material | Aluminium |
| Surface treatment of housing | powder-coated |
| Cover material | PC opal |
Electrical version
| Type of control | DALI-2 |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 22.0 W |
| Protection class | I |
Lighting technology
| Light guide | Reflector |
| Reflector | matt |
| Light output | direct |
| Light distribution | symmetric |
| Radiation pattern | wide beam |
| UGR class | ≤ 19 |
| Rated luminous flux | 3140 lm |
| Luminaire efficiency | 143 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 100.000 h |
| Rated life L80B10 (tq = 25 °C) | 100.000 h |
Download Center
Approvals:
Gear tray VL2S-MRM from the RIDI LINIA EVO product family. Optical control by Reflector from PC opal, beam pattern symmetric, wide beam, light emission direct. Lamps LED-M installed, Replacement by specialist possible. The luminaire generates a rated luminous flux of 3140 lm in light colour 840, adjustable luminous flux: stepless. The long LED service life of up to 100.000 h enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Aluminium, traffic white, similar to RAL 9016, protection rating IP40, permissible ambient temperatures -25 - 47 °C. Mounting: Simple clipping in for electrical contacting and mechanical fastening in the system-bound LINIA EVO trunking system.
Order Information
| Item number | 2560008 |
| GTIN | 4029299712100 |
General
| Product category | Gear tray |
| Range of application | Education | Office |
| Guarantee | 5 years |
Dimensions
| Dimension L | 1000 mm |
| Dimension B | 67 mm |
| Dimension H | 67 mm |
| Net weight | 1.300 kg |
Mounting
| Mounting type | Power rail |
| Mounting position | Trunking |
| Connection type | Power rail adapter |
| Number of poles | 7 |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Farbe_Kurz | ws |
| Protection class | IP40 |
| Impact resistance | IK03 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -25–47 °C |
| Housing material | Aluminium |
| Surface treatment of housing | powder-coated |
| Cover material | PC opal |
Electrical version
| Type of control | DALI-2 |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 22.0 W |
| Protection class | I |
Lighting technology
| Light guide | Reflector |
| Reflector | matt |
| Light output | direct |
| Light distribution | symmetric |
| Radiation pattern | wide beam |
| UGR class | ≤ 19 |
| Rated luminous flux | 3140 lm |
| Luminaire efficiency | 143 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 100.000 h |
| Rated life L80B10 (tq = 25 °C) | 100.000 h |
Download Center

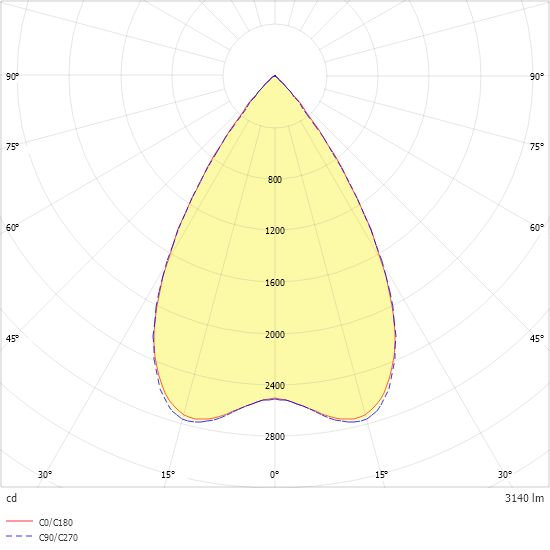

Light distribution curve
