VL2S-GP150-7DASI865W0850 / 2560124SI
Product Description
Gear tray VL2.-GP from the RIDI LINIA EVO product family. Optical control by Opal cover from PMMA opal, beam pattern symmetric, diffuse beam, light emission direct. Lamps LED-M installed, Replacement by specialist possible. The luminaire generates a rated luminous flux of 8410 lm in light colour 865, adjustable luminous flux: stepless. The long LED service life of up to 100.000 h enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Aluminium, silver, similar to RAL 9006, protection rating IP40, permissible ambient temperatures -25 - 45 °C. Mounting: Simple clipping in for electrical contacting and mechanical fastening in the system-bound LINIA EVO trunking system.
Note on “Food Hygiene Act”: These luminaires comply with the stipulations of the Food Hygiene Act as defined by Regulation (EC) No. 852/2004 (HACCP) Annex II Chapter I section 2 a, b, Chapter II section 1c relating to luminaires. These are suitable for use in the food industry. The luminaire has been successfully tested in the packaged food sector.
Order Information
| Item number | 2560124SI |
| GTIN | 4029299913330 |
General
| Product category | Gear tray |
| Range of application | Retail | Industry | Food |
| HACCP certified | Yes |
| Guarantee | 5 years |
Dimensions
| Dimension L | 1500 mm |
| Dimension B | 67 mm |
| Dimension H | 86 mm |
| Net weight | 2.200 kg |
Mounting
| Mounting type | Power rail |
| Mounting position | Trunking |
| Connection type | Power rail adapter |
| Number of poles | 7 |
Housing
| Colour | silver, similar to RAL 9006 |
| Farbe_Kurz | si |
| Protection class | IP40 |
| Impact resistance | IK03 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -25–45 °C |
| Housing material | Aluminium |
| Surface treatment of housing | powder-coated |
| Cover material | PMMA opal |
Electrical version
| Type of control | DALI-2 |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 55.0 W |
| Protection class | I |
Lighting technology
| Light guide | Opal cover |
| Light output | direct |
| Light distribution | symmetric |
| Radiation pattern | diffuse beam |
| UGR class | > 25 |
| Rated luminous flux | 8410 lm |
| Luminaire efficiency | 153 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 6500 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 100.000 h |
| Rated life L80B10 (tq = 25 °C) | 100.000 h |
Download Center
Approvals:
Gear tray VL2.-GP from the RIDI LINIA EVO product family. Optical control by Opal cover from PMMA opal, beam pattern symmetric, diffuse beam, light emission direct. Lamps LED-M installed, Replacement by specialist possible. The luminaire generates a rated luminous flux of 8410 lm in light colour 865, adjustable luminous flux: stepless. The long LED service life of up to 100.000 h enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Aluminium, silver, similar to RAL 9006, protection rating IP40, permissible ambient temperatures -25 - 45 °C. Mounting: Simple clipping in for electrical contacting and mechanical fastening in the system-bound LINIA EVO trunking system.
Note on “Food Hygiene Act”: These luminaires comply with the stipulations of the Food Hygiene Act as defined by Regulation (EC) No. 852/2004 (HACCP) Annex II Chapter I section 2 a, b, Chapter II section 1c relating to luminaires. These are suitable for use in the food industry. The luminaire has been successfully tested in the packaged food sector.
Order Information
| Item number | 2560124SI |
| GTIN | 4029299913330 |
General
| Product category | Gear tray |
| Range of application | Retail | Industry | Food |
| HACCP certified | Yes |
| Guarantee | 5 years |
Dimensions
| Dimension L | 1500 mm |
| Dimension B | 67 mm |
| Dimension H | 86 mm |
| Net weight | 2.200 kg |
Mounting
| Mounting type | Power rail |
| Mounting position | Trunking |
| Connection type | Power rail adapter |
| Number of poles | 7 |
Housing
| Colour | silver, similar to RAL 9006 |
| Farbe_Kurz | si |
| Protection class | IP40 |
| Impact resistance | IK03 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -25–45 °C |
| Housing material | Aluminium |
| Surface treatment of housing | powder-coated |
| Cover material | PMMA opal |
Electrical version
| Type of control | DALI-2 |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 55.0 W |
| Protection class | I |
Lighting technology
| Light guide | Opal cover |
| Light output | direct |
| Light distribution | symmetric |
| Radiation pattern | diffuse beam |
| UGR class | > 25 |
| Rated luminous flux | 8410 lm |
| Luminaire efficiency | 153 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 6500 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 100.000 h |
| Rated life L80B10 (tq = 25 °C) | 100.000 h |
Download Center

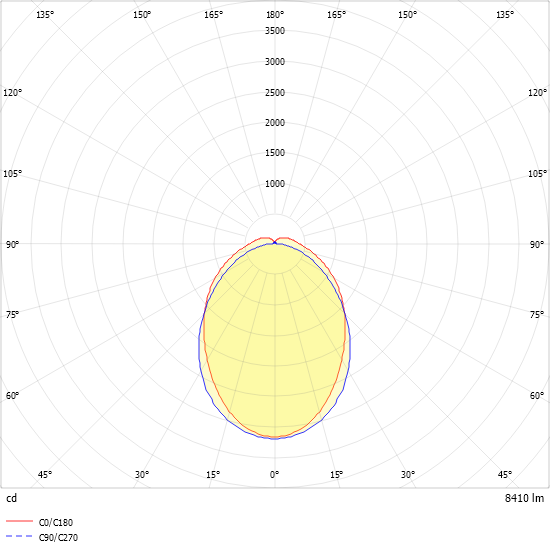

Light distribution curve
