VL2S-GP100-7DAWS840E0600 / 2560092
Product Description
Gear tray VL2.-GP from the RIDI LINIA EVO product family. Optical control by Cover longitudinal prismatic from PMMA clear, beam pattern symmetric, narrow beam, light emission direct. Lamps LED-M installed, Replacement by specialist possible. The luminaire generates a rated luminous flux of 6010 lm in light colour 840, adjustable luminous flux: stepless. The long LED service life of up to 100.000 h enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Steel, traffic white, similar to RAL 9016, protection rating IP20, permissible ambient temperatures -25 - 40 °C. Mounting: Simple clipping in for electrical contacting and mechanical fastening in the system-bound LINIA EVO trunking system.
Note on “Food Hygiene Act”: These luminaires comply with the stipulations of the Food Hygiene Act as defined by Regulation (EC) No. 852/2004 (HACCP) Annex II Chapter I section 2 a, b, Chapter II section 1c relating to luminaires. These are suitable for use in the food industry. The luminaire has been successfully tested in the packaged food sector.
Order Information
| Item number | 2560092 |
| GTIN | 4029299712704 |
General
| Product category | Gear tray |
| Range of application | Retail | Industry | Food |
| HACCP certified | Yes |
| Guarantee | 5 years |
Dimensions
| Dimension L | 1000 mm |
| Dimension B | 67 mm |
| Dimension H | 64 mm |
| Net weight | 1.200 kg |
Mounting
| Mounting type | Power rail |
| Mounting position | Trunking |
| Connection type | Power rail adapter |
| Number of poles | 7 |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Farbe_Kurz | ws |
| Protection class | IP20 |
| Impact resistance | IK03 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -25–40 °C |
| Housing material | Steel |
| Surface treatment of housing | powder-coated |
| Cover material | PMMA clear |
Electrical version
| Type of control | DALI-2 |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 35.0 W |
| Protection class | I |
Lighting technology
| Light guide | Cover longitudinal prismatic |
| Light output | direct |
| Light distribution | symmetric |
| Radiation pattern | narrow beam |

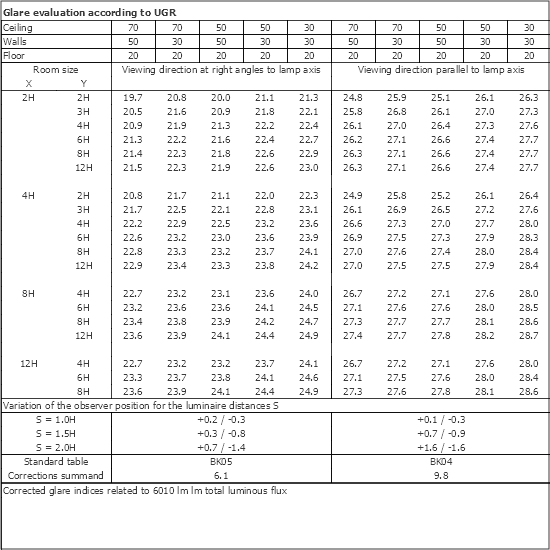

| UGR class | > 25 |
| Rated luminous flux | 6010 lm |
| Luminaire efficiency | 172 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 100.000 h |
| Rated life L80B10 (tq = 25 °C) | 100.000 h |
