VL2S-GFS150-5FLSI865OS0750 / 2550162SI
Product Description
Gear tray from the RIDI LINIA EVO product family. Optical control by Opal cover from PMMA opal, beam pattern symmetric, diffuse beam, light emission direct. Lamps LED-M installed, Replacement by specialist possible. The luminaire generates a rated luminous flux of 7160 lm in light colour 865, adjustable luminous flux: in steps. The long LED service life of up to 100.000 h enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Steel, silver, similar to RAL 9006, protection rating IP54, permissible ambient temperatures -25 - 40 °C. Mounting: Simple clipping in for electrical contacting and mechanical fastening in the system-bound LINIA EVO trunking system.
Order Information
| Item number | 2550162SI |
| GTIN | 4029299927962 |
General
| Product category | Gear tray |
| Range of application | Education | Office | Retail | Industry |
| Guarantee | 5 years |
Dimensions
| Dimension L | 1500 mm |
| Dimension B | 97 mm |
| Dimension H | 77 mm |
| Net weight | 2.883 kg |
Mounting
| Mounting type | Power rail |
| Mounting position | Trunking |
| Connection type | Power rail adapter |
| Number of poles | 5 |
Housing
| Colour | silver, similar to RAL 9006 |
| Farbe_Kurz | si |
| Protection class | IP54 |
| Impact resistance | IK03 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -25–40 °C |
| Housing material | Steel |
| Surface treatment of housing | powder-coated |
| Cover material | PMMA opal |
Electrical version
| Type of control | xFlex |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 53.0 W |
| Protection class | I |
Lighting technology
| Light guide | Opal cover |
| Light output | direct |
| Light distribution | symmetric |
| Radiation pattern | diffuse beam |

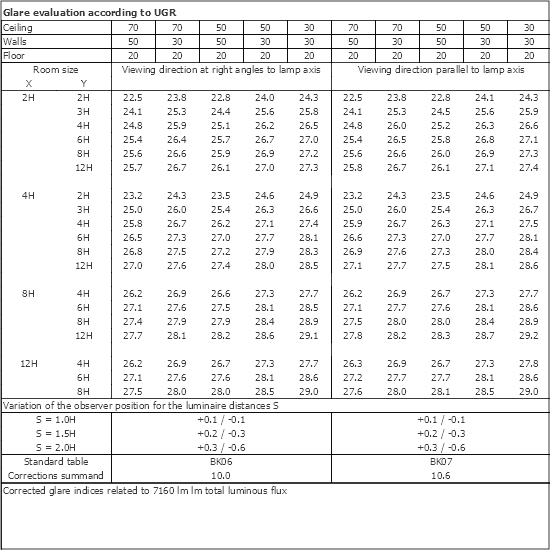

| UGR class | > 25 |
| Rated luminous flux | 7160 lm |
| Luminaire efficiency | 135 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 6500 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 100.000 h |
| Rated life L80B10 (tq = 25 °C) | 100.000 h |
Download Center
Approvals:
