VL2S-GFS150-7DAWS865BQP0700 / 2560161
Product Description
Gear tray from the RIDI LINIA EVO product family. Optical control by Transverse prismatic cover from PMMA structured, beam pattern symmetric, wide beam, light emission direct. Lamps LED-M installed, Replacement by specialist possible. The luminaire generates a rated luminous flux of 7180 lm in light colour 865, adjustable luminous flux: stepless. The long LED service life of up to 100.000 h enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Steel, traffic white, similar to RAL 9016, protection rating IP54, permissible ambient temperatures -25 - 40 °C. Mounting: Simple clipping in for electrical contacting and mechanical fastening in the system-bound LINIA EVO trunking system.
Order Information
| Item number | 2560161 |
| GTIN | 4029299925906 |
General
| Product category | Gear tray |
| Range of application | Education | Office | Retail | Industry |
| Guarantee | 5 years |
Dimensions
| Dimension L | 1500 mm |
| Dimension B | 97 mm |
| Dimension H | 77 mm |
| Net weight | 2.883 kg |
Mounting
| Mounting type | Power rail |
| Mounting position | Trunking |
| Connection type | Power rail adapter |
| Number of poles | 7 |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Farbe_Kurz | ws |
| Protection class | IP54 |
| Impact resistance | IK03 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -25–40 °C |
| Housing material | Steel |
| Surface treatment of housing | powder-coated |
| Cover material | PMMA structured |
Electrical version
| Type of control | DALI-2 |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 52.0 W |
| Protection class | I |
Lighting technology
| Light guide | Transverse prismatic cover |
| Light output | direct |
| Light distribution | symmetric |
| Radiation pattern | wide beam |

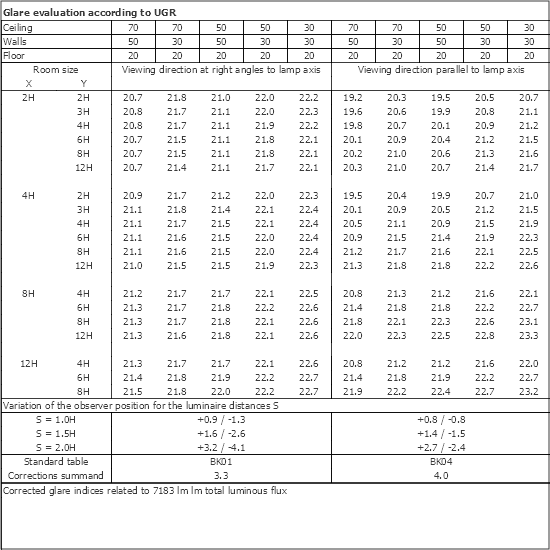

| UGR class | ≤ 22 |
| Rated luminous flux | 7180 lm |
| Luminaire efficiency | 138 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 6500 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 100.000 h |
| Rated life L80B10 (tq = 25 °C) | 100.000 h |
Download Center
Approvals:
Gear tray from the RIDI LINIA EVO product family. Optical control by Transverse prismatic cover from PMMA structured, beam pattern symmetric, wide beam, light emission direct. Lamps LED-M installed, Replacement by specialist possible. The luminaire generates a rated luminous flux of 7180 lm in light colour 865, adjustable luminous flux: stepless. The long LED service life of up to 100.000 h enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Steel, traffic white, similar to RAL 9016, protection rating IP54, permissible ambient temperatures -25 - 40 °C. Mounting: Simple clipping in for electrical contacting and mechanical fastening in the system-bound LINIA EVO trunking system.
Order Information
| Item number | 2560161 |
| GTIN | 4029299925906 |
General
| Product category | Gear tray |
| Range of application | Education | Office | Retail | Industry |
| Guarantee | 5 years |
Dimensions
| Dimension L | 1500 mm |
| Dimension B | 97 mm |
| Dimension H | 77 mm |
| Net weight | 2.883 kg |
Mounting
| Mounting type | Power rail |
| Mounting position | Trunking |
| Connection type | Power rail adapter |
| Number of poles | 7 |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Farbe_Kurz | ws |
| Protection class | IP54 |
| Impact resistance | IK03 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -25–40 °C |
| Housing material | Steel |
| Surface treatment of housing | powder-coated |
| Cover material | PMMA structured |
Electrical version
| Type of control | DALI-2 |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 52.0 W |
| Protection class | I |
Lighting technology
| Light guide | Transverse prismatic cover |
| Light output | direct |
| Light distribution | symmetric |
| Radiation pattern | wide beam |
| UGR class | ≤ 22 |
| Rated luminous flux | 7180 lm |
| Luminaire efficiency | 138 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 6500 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 100.000 h |
| Rated life L80B10 (tq = 25 °C) | 100.000 h |
Download Center
Light distribution curve
Approvals:
Attributes:
