VL2P-GLS150-7DASW840BU0700 / 2560073SW
Product Description
Gear tray VL2.-GLS PROTECTED from the RIDI LINIA EVO product family. Optical control by Lens from PMMA clear, beam pattern symmetric, wide beam, light emission direct. Lamps LED-M installed, Replacement by specialist possible. The luminaire generates a rated luminous flux of 6810 lm in light colour 840, adjustable luminous flux: stepless. The long LED service life of up to 100.000 h enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Steel, black, similar to RAL 9005, protection rating IP54, permissible ambient temperatures -20 - 45 °C. Mounting: Simple clipping in for electrical contacting and mechanical fastening in the system-bound LINIA EVO trunking system.
Note on “Food Hygiene Act”: These luminaires comply with the stipulations of the Food Hygiene Act as defined by Regulation (EC) No. 852/2004 (HACCP) Annex II Chapter I section 2 a, b, Chapter II section 1c relating to luminaires. These are suitable for use in the food industry. The luminaire has been successfully tested in the packaged food sector.
Note on harmful gas resistance: A special coating on the LEDs makes the product more resistant to harmful gases.
Order Information
| Item number | 2560073SW |
| GTIN | 4029299912531 |
General
| Product category | Gear tray |
| Range of application | Industry | Education | Office | Retail | Food |
| HACCP certified | Yes |
| Guarantee | 5 years |
Dimensions
| Dimension L | 1500 mm |
| Dimension B | 67 mm |
| Dimension H | 70 mm |
| Net weight | 2.602 kg |
Mounting
| Mounting type | Power rail |
| Mounting position | Trunking |
| Connection type | Power rail adapter |
| Number of poles | 7 |
Housing
| Colour | black, similar to RAL 9005 |
| Farbe_Kurz | sw |
| Protection class | IP54 |
| Impact resistance | IK03 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -20–45 °C |
| Housing material | Steel |
| Surface treatment of housing | varnished |
| Cover material | PMMA clear |
Electrical version
| Type of control | DALI-2 |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 42.0 W |
| Protection class | I |
Lighting technology
| Light guide | Lens |
| Light output | direct |
| Light distribution | symmetric |
| Radiation pattern | wide beam |
| UGR class | ≤ 19 |
| Rated luminous flux | 6810 lm |
| Luminaire efficiency | 162 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 100.000 h |
| Rated life L80B10 (tq = 25 °C) | 100.000 h |
Download Center
Approvals:
Gear tray VL2.-GLS PROTECTED from the RIDI LINIA EVO product family. Optical control by Lens from PMMA clear, beam pattern symmetric, wide beam, light emission direct. Lamps LED-M installed, Replacement by specialist possible. The luminaire generates a rated luminous flux of 6810 lm in light colour 840, adjustable luminous flux: stepless. The long LED service life of up to 100.000 h enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Steel, black, similar to RAL 9005, protection rating IP54, permissible ambient temperatures -20 - 45 °C. Mounting: Simple clipping in for electrical contacting and mechanical fastening in the system-bound LINIA EVO trunking system.
Note on “Food Hygiene Act”: These luminaires comply with the stipulations of the Food Hygiene Act as defined by Regulation (EC) No. 852/2004 (HACCP) Annex II Chapter I section 2 a, b, Chapter II section 1c relating to luminaires. These are suitable for use in the food industry. The luminaire has been successfully tested in the packaged food sector.
Note on harmful gas resistance: A special coating on the LEDs makes the product more resistant to harmful gases.
Order Information
| Item number | 2560073SW |
| GTIN | 4029299912531 |
General
| Product category | Gear tray |
| Range of application | Industry | Education | Office | Retail | Food |
| HACCP certified | Yes |
| Guarantee | 5 years |
Dimensions
| Dimension L | 1500 mm |
| Dimension B | 67 mm |
| Dimension H | 70 mm |
| Net weight | 2.602 kg |
Mounting
| Mounting type | Power rail |
| Mounting position | Trunking |
| Connection type | Power rail adapter |
| Number of poles | 7 |
Housing
| Colour | black, similar to RAL 9005 |
| Farbe_Kurz | sw |
| Protection class | IP54 |
| Impact resistance | IK03 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -20–45 °C |
| Housing material | Steel |
| Surface treatment of housing | varnished |
| Cover material | PMMA clear |
Electrical version
| Type of control | DALI-2 |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 42.0 W |
| Protection class | I |
Lighting technology
| Light guide | Lens |
| Light output | direct |
| Light distribution | symmetric |
| Radiation pattern | wide beam |
| UGR class | ≤ 19 |
| Rated luminous flux | 6810 lm |
| Luminaire efficiency | 162 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 100.000 h |
| Rated life L80B10 (tq = 25 °C) | 100.000 h |
Download Center

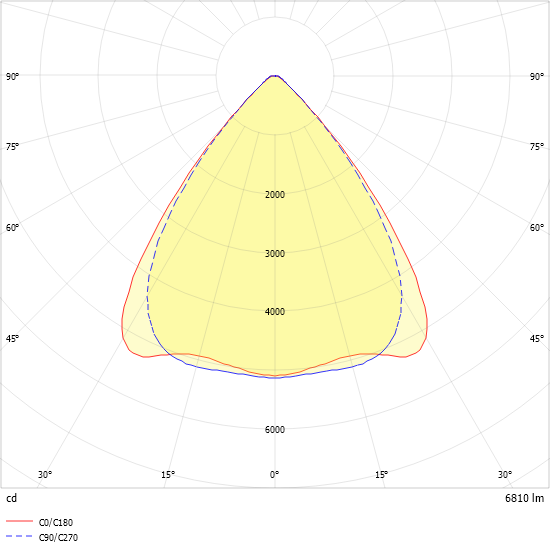

Light distribution curve
Approvals:
Attributes:
