VL2P-GL200-5FLSW840BE2000 / 2550069SW
Product Description
Gear tray VL2.-GL from the RIDI LINIA EVO product family. Optical control by Lens from PMMA clear, beam pattern symmetric, extremely wide beam, light emission direct. Lamps LED-M installed, Replacement by specialist possible. The luminaire generates a rated luminous flux of 20190 lm in light colour 840, adjustable luminous flux: in steps. The long LED service life of up to 100.000 h enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Steel, black, similar to RAL 9005, protection rating IP20, permissible ambient temperatures -25 - 37 °C. Mounting: Simple clipping in for electrical contacting and mechanical fastening in the system-bound LINIA EVO trunking system.
Note on “Food Hygiene Act”: These luminaires comply with the stipulations of the Food Hygiene Act as defined by Regulation (EC) No. 852/2004 (HACCP) Annex II Chapter I section 2 a, b, Chapter II section 1c relating to luminaires. These are suitable for use in the food industry. The luminaire has been successfully tested in the packaged food sector.
Order Information
| Item number | 2550069SW |
| GTIN | 4029299911992 |
General
| Product category | Gear tray |
| Range of application | Retail | Industry | Food |
| HACCP certified | Yes |
| Guarantee | 5 years |
Dimensions
| Dimension L | 2000 mm |
| Dimension B | 67 mm |
| Dimension H | 64 mm |
| Net weight | 2.100 kg |
Mounting
| Mounting type | Power rail |
| Mounting position | Trunking |
| Connection type | Power rail adapter |
| Number of poles | 5 |
Housing
| Colour | black, similar to RAL 9005 |
| Farbe_Kurz | sw |
| Protection class | IP20 |
| Impact resistance | IK03 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -25–37 °C |
| Housing material | Steel |
| Surface treatment of housing | varnished |
| Cover material | PMMA clear |
Electrical version
| Type of control | xFlex |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 111.0 W |
| Protection class | I |
Lighting technology
| Light guide | Lens |
| Light output | direct |
| Light distribution | symmetric |
| Radiation pattern | extremely wide beam |
| UGR class | > 25 |
| Rated luminous flux | 20190 lm |
| Luminaire efficiency | 182 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 100.000 h |
| Rated life L80B10 (tq = 25 °C) | 100.000 h |
Download Center
Approvals:
Gear tray VL2.-GL from the RIDI LINIA EVO product family. Optical control by Lens from PMMA clear, beam pattern symmetric, extremely wide beam, light emission direct. Lamps LED-M installed, Replacement by specialist possible. The luminaire generates a rated luminous flux of 20190 lm in light colour 840, adjustable luminous flux: in steps. The long LED service life of up to 100.000 h enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Steel, black, similar to RAL 9005, protection rating IP20, permissible ambient temperatures -25 - 37 °C. Mounting: Simple clipping in for electrical contacting and mechanical fastening in the system-bound LINIA EVO trunking system.
Note on “Food Hygiene Act”: These luminaires comply with the stipulations of the Food Hygiene Act as defined by Regulation (EC) No. 852/2004 (HACCP) Annex II Chapter I section 2 a, b, Chapter II section 1c relating to luminaires. These are suitable for use in the food industry. The luminaire has been successfully tested in the packaged food sector.
Order Information
| Item number | 2550069SW |
| GTIN | 4029299911992 |
General
| Product category | Gear tray |
| Range of application | Retail | Industry | Food |
| HACCP certified | Yes |
| Guarantee | 5 years |
Dimensions
| Dimension L | 2000 mm |
| Dimension B | 67 mm |
| Dimension H | 64 mm |
| Net weight | 2.100 kg |
Mounting
| Mounting type | Power rail |
| Mounting position | Trunking |
| Connection type | Power rail adapter |
| Number of poles | 5 |
Housing
| Colour | black, similar to RAL 9005 |
| Farbe_Kurz | sw |
| Protection class | IP20 |
| Impact resistance | IK03 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -25–37 °C |
| Housing material | Steel |
| Surface treatment of housing | varnished |
| Cover material | PMMA clear |
Electrical version
| Type of control | xFlex |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 111.0 W |
| Protection class | I |
Lighting technology
| Light guide | Lens |
| Light output | direct |
| Light distribution | symmetric |
| Radiation pattern | extremely wide beam |
| UGR class | > 25 |
| Rated luminous flux | 20190 lm |
| Luminaire efficiency | 182 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 100.000 h |
| Rated life L80B10 (tq = 25 °C) | 100.000 h |
Download Center

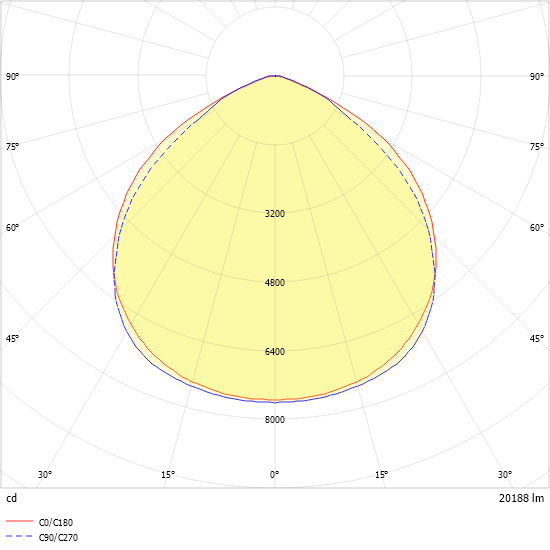

Light distribution curve
Approvals:
Attributes:
