PURELIGHT-QA149 DAMC840O0600 / SPG0630279BB

Product Description

Ceiling light from the PURELIGHT product family. Optical control via Opal cover, beam pattern symmetric, extremely wide beam, light emission direct/indirect. Lamp LED-M installed, Replacement by specialist. The luminaire generates a rated luminous flux of 6040 lm in light colour 840, luminous flux adjustable: stepless. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Plastic, chrome, protection rating IP20. With electronic electrical component DALI-2. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.

show more show less

Add to wishlist

Product information

Order Information

Item number	SPG0630279BB
GTIN	4029299552416

General

Product category	Ceiling light
Range of application	Education \| Office
Guarantee	5 years

Dimensions

Dimension L	1503 mm
Dimension B	95 mm
Dimension H	114 mm
Dimension A	1400 mm
Dimension A1	900 mm
Dimension A4	302 mm
Dimension K	752 mm
Dimension K2	32 mm
Net weight	5.200 kg

Dimension drawing

Mounting

Mounting type	Attachment
Connection type	Socket
Number of poles	5
Conductor cross-section	0.75–1.5 mm²

Housing

Colour	chrome
Protection class	IP20
Glow-wire test	650 °C
Permissible ambient temperature	-25–25 °C
Housing material	Plastic
Cover material	PMMA opal

Electrical version

Type of control	DALI-2
Nominal voltage	220–240 V, 0/50–60 Hz
Rated power	47.0 W
Protection class	I

Lighting technology

Light distributor	Opal cover
Light emission	direct/indirect
Light distribution	symmetric
Beam characteristics	extremely wide beam
UGR class	≤ 25
Rated luminous flux	6040 lm
Luminaire efficiency	129 lm/W

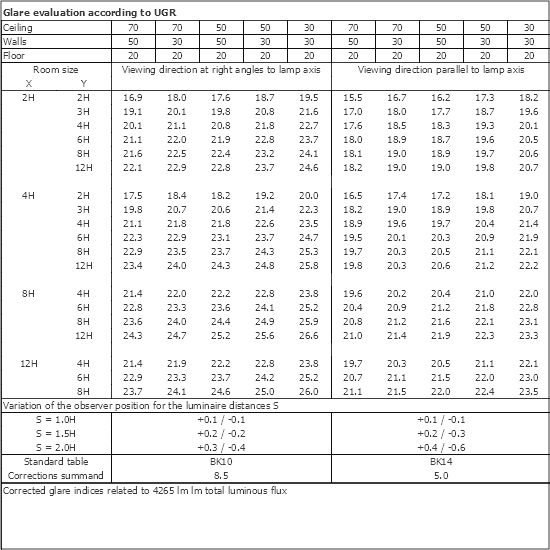

UGR table

Light source

Lamp	LED-M
Lamp included	Yes
Colour rendering index Ra	≥ 80
Colour temperature	4000 K
Colour location tolerance (SDCM)	< 3 SDCM
Rated life L80B50 (tq = 25 °C)	50.000 h

Download Center
