PURELIGHT-QA090 DASI8TWO0300 / SPG0630401SI
Product Description
Ceiling light from the PURELIGHT product family. Optical control via Opal cover, beam pattern symmetric, extremely wide beam, light emission direct/indirect. Lamp LED-M installed, Replacement by specialist. The luminaire generates a rated luminous flux of 3220 lm in light colour 8TW, luminous flux adjustable: stepless. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Plastic, silver, protection rating IP20. With electronic electrical component DALI. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
Order Information
| Item number | SPG0630401SI |
| GTIN | 4029299553178 |
General
| Product category | Ceiling light |
| Range of application | Education | Office |
| Guarantee | 5 years |
Dimensions
| Dimension L | 912 mm |
| Dimension B | 95 mm |
| Dimension H | 114 mm |
| Dimension A | 809 mm |
| Dimension A1 | 600 mm |
| Dimension A4 | 156 mm |
| Dimension K | 456 mm |
| Dimension K2 | 32 mm |
| Net weight | 3.400 kg |
Mounting
| Mounting type | Attachment |
| Connection type | Socket |
| Number of poles | 5 |
| Conductor cross-section | 0.75–1.5 mm² |
Housing
| Colour | silver |
| Protection class | IP20 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -25–25 °C |
| Housing material | Plastic |
| Cover material | PMMA opal |
Electrical version
| Type of control | DALI |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 27.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Opal cover |
| Light emission | direct/indirect |
| Light distribution | symmetric |
| Beam characteristics | extremely wide beam |
| UGR class | ≤ 22 |
| Rated luminous flux | 3220 lm |
| Luminaire efficiency | 119 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 2700–6500 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center
Approvals:
Ceiling light from the PURELIGHT product family. Optical control via Opal cover, beam pattern symmetric, extremely wide beam, light emission direct/indirect. Lamp LED-M installed, Replacement by specialist. The luminaire generates a rated luminous flux of 3220 lm in light colour 8TW, luminous flux adjustable: stepless. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Plastic, silver, protection rating IP20. With electronic electrical component DALI. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
Order Information
| Item number | SPG0630401SI |
| GTIN | 4029299553178 |
General
| Product category | Ceiling light |
| Range of application | Education | Office |
| Guarantee | 5 years |
Dimensions
| Dimension L | 912 mm |
| Dimension B | 95 mm |
| Dimension H | 114 mm |
| Dimension A | 809 mm |
| Dimension A1 | 600 mm |
| Dimension A4 | 156 mm |
| Dimension K | 456 mm |
| Dimension K2 | 32 mm |
| Net weight | 3.400 kg |
Mounting
| Mounting type | Attachment |
| Connection type | Socket |
| Number of poles | 5 |
| Conductor cross-section | 0.75–1.5 mm² |
Housing
| Colour | silver |
| Protection class | IP20 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -25–25 °C |
| Housing material | Plastic |
| Cover material | PMMA opal |
Electrical version
| Type of control | DALI |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 27.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Opal cover |
| Light emission | direct/indirect |
| Light distribution | symmetric |
| Beam characteristics | extremely wide beam |
| UGR class | ≤ 22 |
| Rated luminous flux | 3220 lm |
| Luminaire efficiency | 119 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 2700–6500 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center

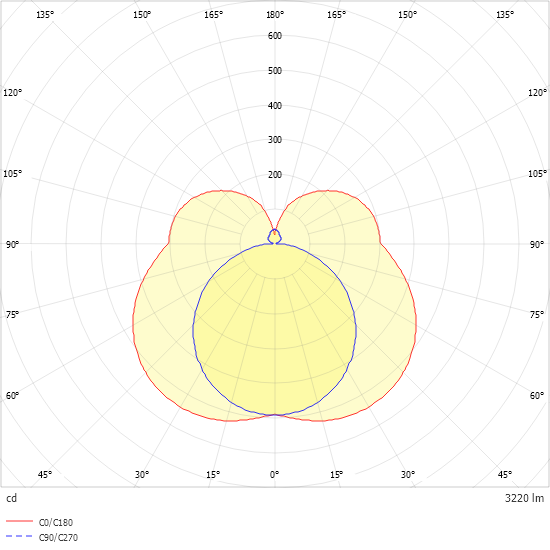

Light distribution curve
Approvals:
