PURELIGHT-RPDI119DAWS830O0500 / SPG0630516
Product Description
Leuchte anschlussfertig mit vormontierter, transparenter Anschlussleitung und Seilabhängung sowie Baldachin. Seilpendel, Länge 1,5 m, stufenlos höhenverstellbar. Bei einer DALI-Programmierung lassen sich der direkte und der indirekte Lichtanteil unabhängig voneinander dimmen. Wird die Leuchte jedoch über DALI-Broadcast-Betrieb oder Touch DIM gesteuert, erfolgt das Dimmen beider Lichtanteile ausschließlich synchron.
Order Information
| Item number | SPG0630516 |
| GTIN | 4029299917864 |
General
| Product category | Pendant luminaire |
| Range of application | Office |
| Guarantee | 5 years |
Dimensions
| Dimension L | 1182 mm |
| Dimension B | 95 mm |
| Dimension H | 95 mm |
| Dimension A1 | 1097 mm |
| Dimension A4 | 85 mm |
| Dimension AE | 1500 mm |
| Net weight | 2.400 kg |
Mounting
| Mounting type | Pendant |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Number of poles | 5 |
| Conductor cross-section | 0.5–2.5 mm² |
Housing
| Colour | opal white |
| Protection class | IP20 |
| Impact resistance | IK03 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -25–25 °C |
| Housing material | Aluminium |
| Surface treatment of housing | powder-coated |
| Cover material | PMMA opal |
Electrical version
| Type of control | DALI-2 |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 37.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Opal cover |
| Light emission | direct/indirect |
| Light distribution | symmetric |
| UGR class | ≤ 19 |
| Rated luminous flux | 5080 lm |
| Luminaire efficiency | 137 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 3000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 100.000 h |
| Rated life L80B10 (tq = 25 °C) | 100.000 h |
Download Center
Approvals:
Leuchte anschlussfertig mit vormontierter, transparenter Anschlussleitung und Seilabhängung sowie Baldachin. Seilpendel, Länge 1,5 m, stufenlos höhenverstellbar. Bei einer DALI-Programmierung lassen sich der direkte und der indirekte Lichtanteil unabhängig voneinander dimmen. Wird die Leuchte jedoch über DALI-Broadcast-Betrieb oder Touch DIM gesteuert, erfolgt das Dimmen beider Lichtanteile ausschließlich synchron.
Order Information
| Item number | SPG0630516 |
| GTIN | 4029299917864 |
General
| Product category | Pendant luminaire |
| Range of application | Office |
| Guarantee | 5 years |
Dimensions
| Dimension L | 1182 mm |
| Dimension B | 95 mm |
| Dimension H | 95 mm |
| Dimension A1 | 1097 mm |
| Dimension A4 | 85 mm |
| Dimension AE | 1500 mm |
| Net weight | 2.400 kg |
Mounting
| Mounting type | Pendant |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Number of poles | 5 |
| Conductor cross-section | 0.5–2.5 mm² |
Housing
| Colour | opal white |
| Protection class | IP20 |
| Impact resistance | IK03 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -25–25 °C |
| Housing material | Aluminium |
| Surface treatment of housing | powder-coated |
| Cover material | PMMA opal |
Electrical version
| Type of control | DALI-2 |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 37.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Opal cover |
| Light emission | direct/indirect |
| Light distribution | symmetric |
| UGR class | ≤ 19 |
| Rated luminous flux | 5080 lm |
| Luminaire efficiency | 137 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 3000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 100.000 h |
| Rated life L80B10 (tq = 25 °C) | 100.000 h |
Download Center

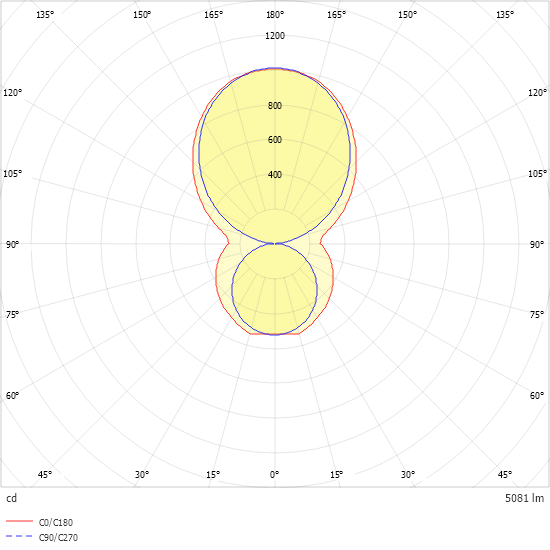

Light distribution curve
Approvals:
