ORTO-T DAFSW840SR0850 / SPG0630025AQ
Product Description
Table lamp from the ORTO product family. Optical control via Louvre, beam pattern symmetric, wide beam, light emission omnidirectional. Lamp LED-M installed, Replacement by specialist. The luminaire generates a rated luminous flux of 8020 lm in light colour 840, luminous flux adjustable: stepless. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Aluminium, black, protection rating IP20. With electronic electrical component DALI. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
Order Information
| Item number | SPG0630025AQ |
| GTIN | 4029299565621 |
General
| Product category | Table lamp |
| Range of application | Office |
| Guarantee | 5 years |
Dimensions
| Dimension L | 1314 mm |
| Dimension B | 62 mm |
| Dimension H | 1460 mm |
| Net weight | 7.300 kg |
Mounting
| Mounting type | Standing |
| Mounting position | Table |
| Connection type | Plug |
Housing
| Colour | black |
| Protection class | IP20 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -25–25 °C |
| Housing material | Aluminium |
| Surface treatment of housing | |
| Cover material | PC clear |
Electrical version
| Type of control | DALI |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 79.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Louvre |
| Light emission | omnidirectional |
| Light distribution | symmetric |
| Beam characteristics | wide beam |

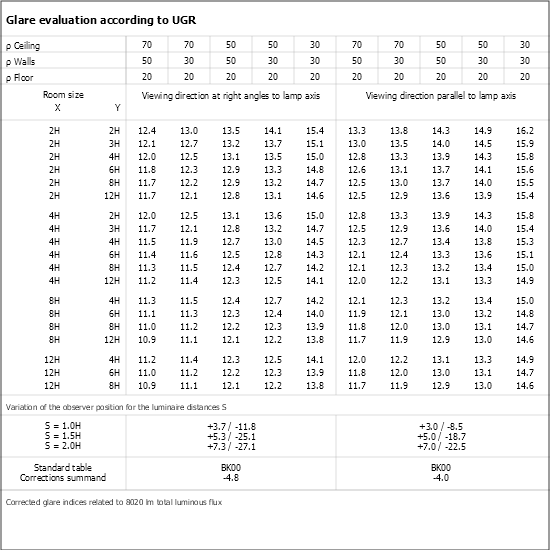

| UGR class | ≤ 16 |
| Rated luminous flux | 8020 lm |
| Luminaire efficiency | 102 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center
Approvals:
Table lamp from the ORTO product family. Optical control via Louvre, beam pattern symmetric, wide beam, light emission omnidirectional. Lamp LED-M installed, Replacement by specialist. The luminaire generates a rated luminous flux of 8020 lm in light colour 840, luminous flux adjustable: stepless. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Aluminium, black, protection rating IP20. With electronic electrical component DALI. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
Order Information
| Item number | SPG0630025AQ |
| GTIN | 4029299565621 |
General
| Product category | Table lamp |
| Range of application | Office |
| Guarantee | 5 years |
Dimensions
| Dimension L | 1314 mm |
| Dimension B | 62 mm |
| Dimension H | 1460 mm |
| Net weight | 7.300 kg |
Mounting
| Mounting type | Standing |
| Mounting position | Table |
| Connection type | Plug |
Housing
| Colour | black |
| Protection class | IP20 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -25–25 °C |
| Housing material | Aluminium |
| Cover material | PC clear |
Electrical version
| Type of control | DALI |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 79.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Louvre |
| Light emission | omnidirectional |
| Light distribution | symmetric |
| Beam characteristics | wide beam |

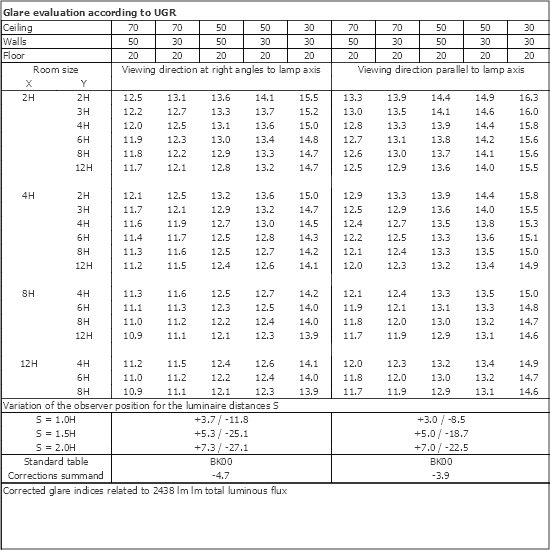

| UGR class | ≤ 16 |
| Rated luminous flux | 8020 lm |
| Luminaire efficiency | 102 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center
Light distribution curve
Approvals:
Attributes:
