NOREA-SKY QA1250/2200/TWDA / SPT0000193
Product Description

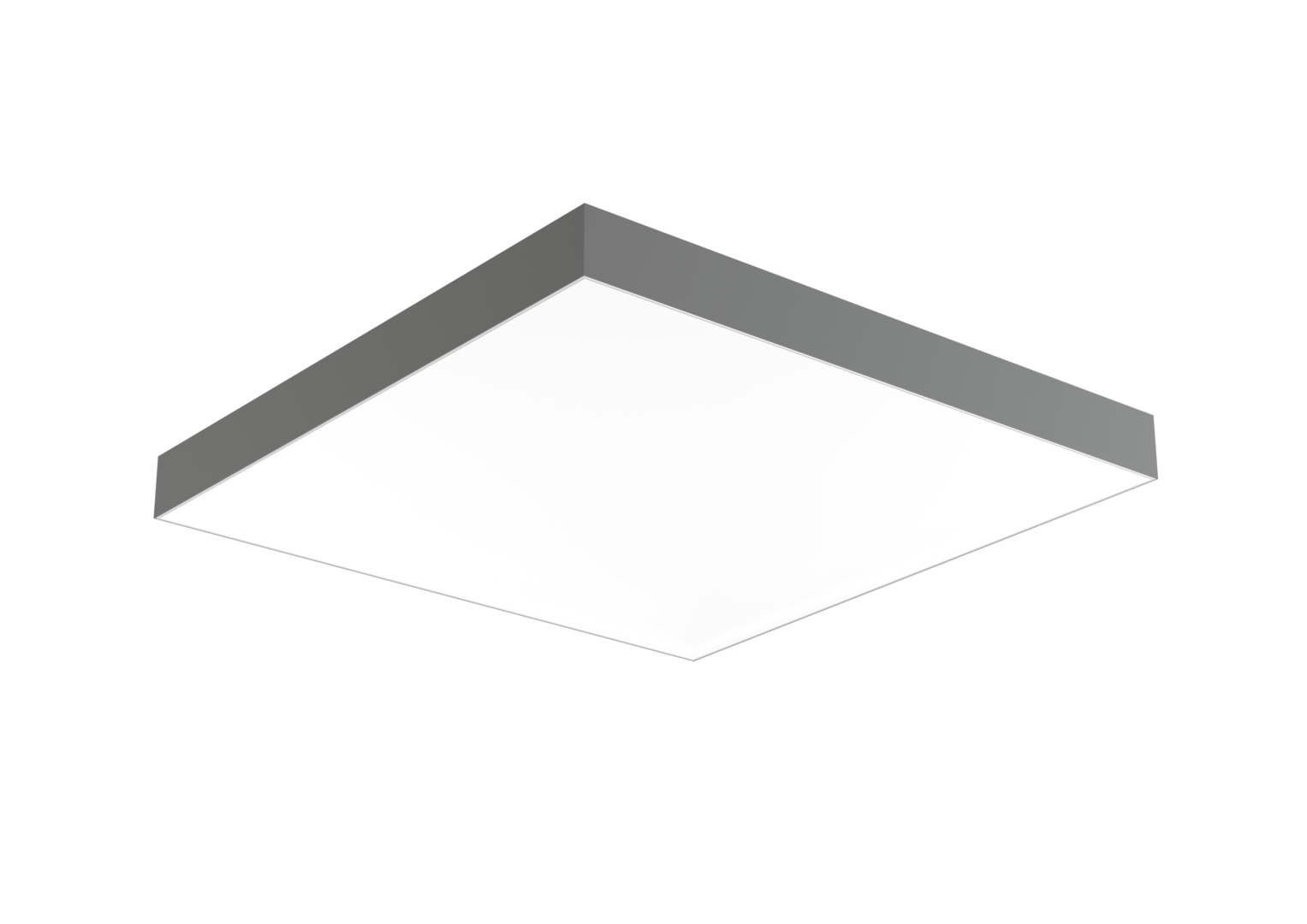

Ceiling light from the NOREA-SKY product family. Optical control via Diffuser, beam pattern symmetric, extremely wide beam, light emission direct. Lamp LED-M installed, Replacement by specialist. The luminaire generates a rated luminous flux of 11440 lm in light colour 8TW, luminous flux adjustable: stepless. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Aluminium, aluminium, protection rating IP20. With electronic electrical component DALI-2. Replacement by specialist. Rated voltage 220 - 220 V AC/DC 50 - 50 Hz.
Order Information
| Item number | SPT0000193 |
| GTIN | 4029299572193 |
General
| Product category | Ceiling light |
| Range of application | Office | Education |
| Guarantee | 5 years |
Dimensions
| Dimension L | 1250 mm |
| Dimension B | 1250 mm |
| Dimension H | 126 mm |
| Dimension A1 | 1100 mm |
| Dimension A2 | 1100 mm |
| Net weight | 31.600 kg |
Mounting
| Mounting type | Attachment |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Number of poles | 5 |
| Conductor cross-section | 0.5–2.5 mm² |
Housing
| Colour | aluminium |
| Protection class | IP20 |
| Permissible ambient temperature | -25–25 °C |
| Housing material | Aluminium |
| Cover material | Fire-retardant fabric (B) |
Electrical version
| Type of control | DALI-2 |
| Nominal voltage | 220–220 V, 0/50–50 Hz |
| Rated power | 135.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Diffuser |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | extremely wide beam |
| UGR class | ≤ 22 |
| Rated luminous flux | 11440 lm |
| Luminaire efficiency | 85 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 2700–6500 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center
Approvals:
Ceiling light from the NOREA-SKY product family. Optical control via Diffuser, beam pattern symmetric, extremely wide beam, light emission direct. Lamp LED-M installed, Replacement by specialist. The luminaire generates a rated luminous flux of 11440 lm in light colour 8TW, luminous flux adjustable: stepless. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Aluminium, aluminium, protection rating IP20. With electronic electrical component DALI-2. Replacement by specialist. Rated voltage 220 - 220 V AC/DC 50 - 50 Hz.
Order Information
| Item number | SPT0000193 |
| GTIN | 4029299572193 |
General
| Product category | Ceiling light |
| Range of application | Office | Education |
| Guarantee | 5 years |
Dimensions
| Dimension L | 1250 mm |
| Dimension B | 1250 mm |
| Dimension H | 126 mm |
| Dimension A1 | 1100 mm |
| Dimension A2 | 1100 mm |
| Net weight | 31.600 kg |
Mounting
| Mounting type | Attachment |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Number of poles | 5 |
| Conductor cross-section | 0.5–2.5 mm² |
Housing
| Colour | aluminium |
| Protection class | IP20 |
| Permissible ambient temperature | -25–25 °C |
| Housing material | Aluminium |
| Cover material | Fire-retardant fabric (B) |
Electrical version
| Type of control | DALI-2 |
| Nominal voltage | 220–220 V, 0/50–50 Hz |
| Rated power | 135.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Diffuser |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | extremely wide beam |
| UGR class | ≤ 22 |
| Rated luminous flux | 11440 lm |
| Luminaire efficiency | 85 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 2700–6500 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center

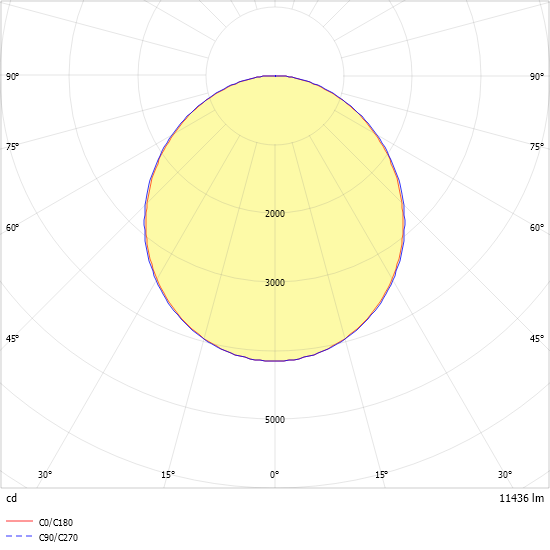

Light distribution curve
