MIREFA-EDL-1X3 NDFWS840MRM0125 / SPG0320326AH
Product Description
{product category} with narrow-beam, matt reflector units. Optical control via Reflector, beam pattern symmetric, wide beam, light emission direct. Visible luminaire housing made of Steel, traffic white, similar to RAL 9016 powder coated, luminaire shape rectangular. Protection rating IP20, net weight 0.600 kg. Mounting with enclosed accessories. With electronic electrical component On/Off. Replacement by specialist possible. Nominal voltage 220 - 240 V AC/DC 50 - 60 Hz.
Order Information
| Item number | SPG0320326AH |
| GTIN | 4029299610413 |
General
| Product category | Downlight |
| Range of application | Education | Office | Retail |
| Guarantee | 5 years |
Dimensions
| Dimension L | 240 mm |
| Dimension B | 80 mm |
| Dimension H | 60 mm |
| Dimension B1 | 75 mm |
| Dimension BE | 70 mm |
| Dimension H4 | 32 mm |
| Dimension HE | 70 mm |
| Dimension L1 | 200 mm |
| Dimension LE | 205 mm |
| Net weight | 0.600 kg |
Mounting
| Mounting type | Installation |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Number of poles | 3 |
| Conductor cross-section | 0.75–2.5 mm² |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP20 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -20–49 °C |
| Housing material | Steel |
| Surface treatment of housing | powder-coated |
| Cover material | PC structured |
Electrical version
| Type of control | On/Off |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 10.4 W |
| Protection class | I |
Lighting technology
| Light distributor | Reflector |
| Reflector | matt |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | wide beam |
| UGR class | ≤ 19 |
| Rated luminous flux | 1150 lm |
| Luminaire efficiency | 111 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 80.000 h |
| Rated life L80B10 (tq = 25 °C) | 71.000 h |
Download Center
Approvals:
{product category} with narrow-beam, matt reflector units. Optical control via Reflector, beam pattern symmetric, wide beam, light emission direct. Visible luminaire housing made of Steel, traffic white, similar to RAL 9016 powder coated, luminaire shape rectangular. Protection rating IP20, net weight 0.600 kg. Mounting with enclosed accessories. With electronic electrical component On/Off. Replacement by specialist possible. Nominal voltage 220 - 240 V AC/DC 50 - 60 Hz.
Order Information
| Item number | SPG0320326AH |
| GTIN | 4029299610413 |
General
| Product category | Downlight |
| Range of application | Education | Office | Retail |
| Guarantee | 5 years |
Dimensions
| Dimension L | 240 mm |
| Dimension B | 80 mm |
| Dimension H | 60 mm |
| Dimension B1 | 75 mm |
| Dimension BE | 70 mm |
| Dimension H4 | 32 mm |
| Dimension HE | 70 mm |
| Dimension L1 | 200 mm |
| Dimension LE | 205 mm |
| Net weight | 0.600 kg |
Mounting
| Mounting type | Installation |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Number of poles | 3 |
| Conductor cross-section | 0.75–2.5 mm² |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP20 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -20–49 °C |
| Housing material | Steel |
| Surface treatment of housing | powder-coated |
| Cover material | PC structured |
Electrical version
| Type of control | On/Off |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 10.4 W |
| Protection class | I |
Lighting technology
| Light distributor | Reflector |
| Reflector | matt |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | wide beam |
| UGR class | ≤ 19 |
| Rated luminous flux | 1150 lm |
| Luminaire efficiency | 111 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 80.000 h |
| Rated life L80B10 (tq = 25 °C) | 71.000 h |
Download Center

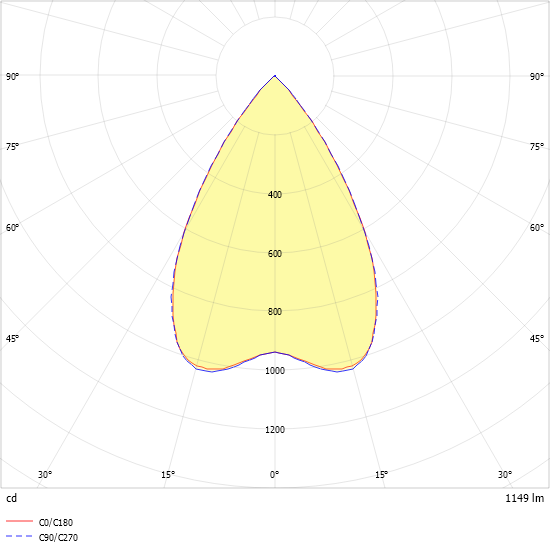

Light distribution curve
