MIREFA-ADQ-3X3 DAFSW840MRM0300 / SPG0330311AQ
Product Description
{product category} with narrow-beam, matt reflector units. Optical control via Reflector, beam pattern symmetric, wide beam, light emission direct. Visible luminaire housing made of Steel, black, similar to RAL 9005 powder coated, luminaire shape square. Protection rating IP20, net weight 3.500 kg. Mounting with enclosed accessories. With electronic electrical component DALI-2. Replacement by specialist possible. Nominal voltage 220 - 240 V AC/DC 50 - 60 Hz.
Order Information
| Item number | SPG0330311AQ |
| GTIN | 4029299826296 |
General
| Product category | Downlight |
| Range of application | Education | Office | Retail |
| Guarantee | 5 years |
Dimensions
| Dimension L | 245 mm |
| Dimension B | 245 mm |
| Dimension H | 57 mm |
| Dimension A1 | 200 mm |
| Dimension A2 | 170 mm |
| Net weight | 3.500 kg |
Mounting
| Mounting type | Attachment |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Number of poles | 5 |
| Conductor cross-section | 0.5–2.5 mm² |
Housing
| Colour | black, similar to RAL 9005 |
| Protection class | IP20 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -20–28 °C |
| Housing material | Steel |
| Surface treatment of housing | powder-coated |
| Cover material | PC opal |
Electrical version
| Type of control | DALI-2 |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 25.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Reflector |
| Reflector | matt |
| Glare control | Louvre |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | wide beam |
| UGR class | ≤ 19 |
| Rated luminous flux | 2860 lm |
| Luminaire efficiency | 114 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 60.000 h |
| Rated life L80B10 (tq = 25 °C) | 51.000 h |
Download Center
Approvals:
{product category} with narrow-beam, matt reflector units. Optical control via Reflector, beam pattern symmetric, wide beam, light emission direct. Visible luminaire housing made of Steel, black, similar to RAL 9005 powder coated, luminaire shape square. Protection rating IP20, net weight 3.500 kg. Mounting with enclosed accessories. With electronic electrical component DALI-2. Replacement by specialist possible. Nominal voltage 220 - 240 V AC/DC 50 - 60 Hz.
Order Information
| Item number | SPG0330311AQ |
| GTIN | 4029299826296 |
General
| Product category | Downlight |
| Range of application | Education | Office | Retail |
| Guarantee | 5 years |
Dimensions
| Dimension L | 245 mm |
| Dimension B | 245 mm |
| Dimension H | 57 mm |
| Dimension A1 | 200 mm |
| Dimension A2 | 170 mm |
| Net weight | 3.500 kg |
Mounting
| Mounting type | Attachment |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Number of poles | 5 |
| Conductor cross-section | 0.5–2.5 mm² |
Housing
| Colour | black, similar to RAL 9005 |
| Protection class | IP20 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -20–28 °C |
| Housing material | Steel |
| Surface treatment of housing | powder-coated |
| Cover material | PC opal |
Electrical version
| Type of control | DALI-2 |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 25.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Reflector |
| Reflector | matt |
| Glare control | Louvre |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | wide beam |
| UGR class | ≤ 19 |
| Rated luminous flux | 2860 lm |
| Luminaire efficiency | 114 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 60.000 h |
| Rated life L80B10 (tq = 25 °C) | 51.000 h |
Download Center

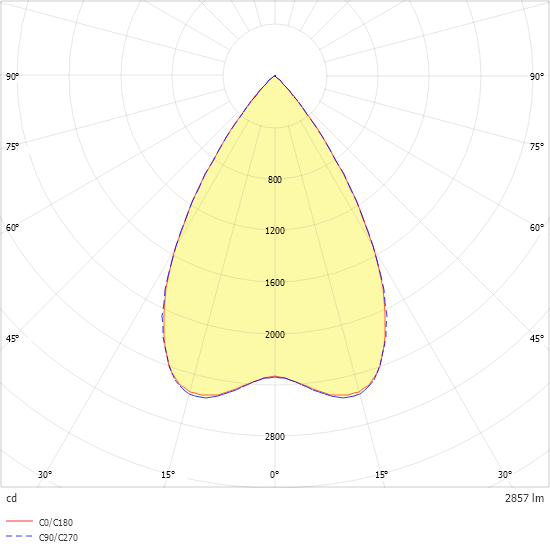

Light distribution curve
